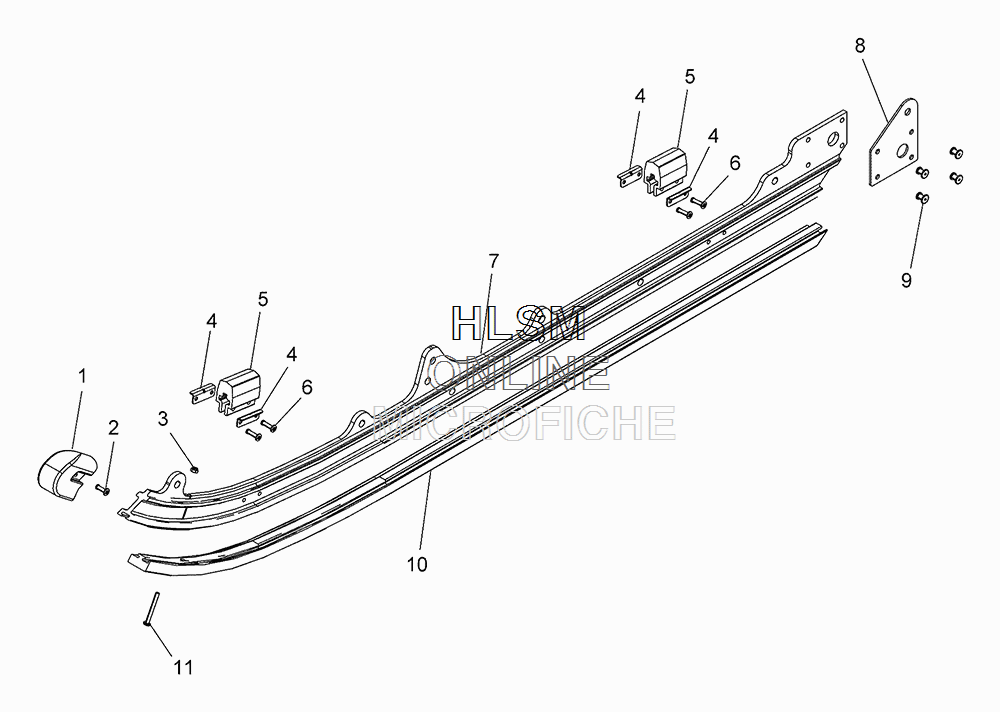

SUSPENSION - RAIL MOUNTING для Polaris 550 WIDETRAK LX LXT [S16SU5BSL] - 2016 года выпуска
-
№АртикулНазвание
-
15430627 COVER, RAIL TIPCOVER, RAIL TIP
-
27621435 RIVETRIVET
-
37542122 NUTNUT
-
45222629 ANGLE, REINFORCEMENT, BUMPERANGLE, REINFORCEMENT, BUMPER
-
55810554 BUMPER, SUSPENSIONBUMPER, SUSPENSION
-
67621476 RIVETRIVET
-
71540751 ASM., RAIL, LEFT HAND (INCL. 1,2,4-9)ASM., RAIL, LEFT HAND (INCL. 1,2,4-9)
-
71540752 ASM., RAIL, LEFT HAND (INCL. 1,2,4-9)ASM., RAIL, LEFT HAND (INCL. 1,2,4-9)
-
85220454-067 BRKT-SWING ARM EXT., BLACKBRKT-SWING ARM EXT., BLACK
-
97621508 RIVETRIVET
-
105521452 SLIDER, RAIL, WHITESLIDER, RAIL, WHITE
-
117512227 SCREWSCREW
