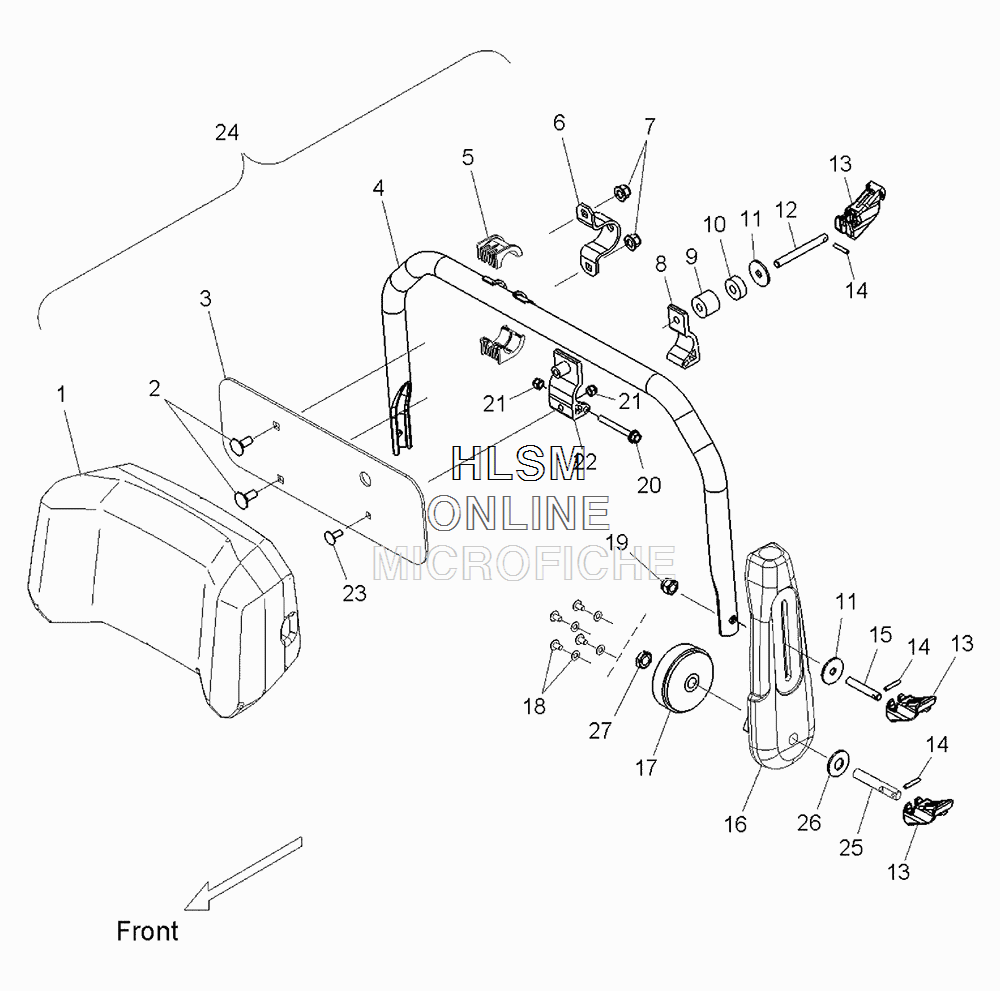

BACKREST ASSEMBLY для Polaris 550 WIDETRAK LX [S16SU5BEB] - 2016 года выпуска
-
№АртикулНазвание
-
12685245 ASM., COVER, BACKREST, BLACKASM., COVER, BACKREST, BLACK
-
12685283 ASM., BUN, BACKREST, SVCASM., BUN, BACKREST, SVC
-
27518564 BOLTBOLT
-
35256121 PLATE, BACKRESTPLATE, BACKREST
-
41018760-458 TUBE, BACKRESTTUBE, BACKREST
-
55438903 BUSHING, UPPER STEERING, 1 INCHBUSHING, UPPER STEERING, 1 INCH
-
65257028 BRACKET, UPPER STEERING BUSHINGBRACKET, UPPER STEERING BUSHING
-
77547332 NUTNUT
-
85138000 CLAMP, TUBE, UPPERCLAMP, TUBE, UPPER
-
95413887 BUSHING, RUBBER, LNR ANCHORBUSHING, RUBBER, LNR ANCHOR
-
105439062 BUSHING, LANDR ANCHORBUSHING, LANDR ANCHOR
-
117556732 WASHERWASHER
-
125138003 STUD, BACKREST, M8, LONGSTUD, BACKREST, M8, LONG
-
135450370 HANDLE, LNR ANCHORHANDLE, LNR ANCHOR
-
147661970 PIN, DOWELPIN, DOWEL
-
155138004 STUD, BACKREST, M8, SHORTSTUD, BACKREST, M8, SHORT
-
165436635 MOUNT, ADJUSTER ARMMOUNT, ADJUSTER ARM
-
175135462 CYLINDER, RATCHETCYLINDER, RATCHET
-
187518798 SCREWSCREW
-
187552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
197547076 NUTNUT
-
207519171 SCREWSCREW
-
217547505 NUTNUT
-
221018761 ASM., TUBE CLAMP, LOWERASM., TUBE CLAMP, LOWER
-
237519588 SCREW, RIGHT HAND CARRIAGESCREW, RIGHT HAND CARRIAGE
-
242685246-458 ASM., ADJ. BACKREST (INCL. 1-14,20-22)ASM., ADJ. BACKREST (INCL. 1-14,20-22)
-
255138005 STUD, BACKREST, M12STUD, BACKREST, M12
-
267555721 WASHERWASHER
-
277547428 NUTNUT
