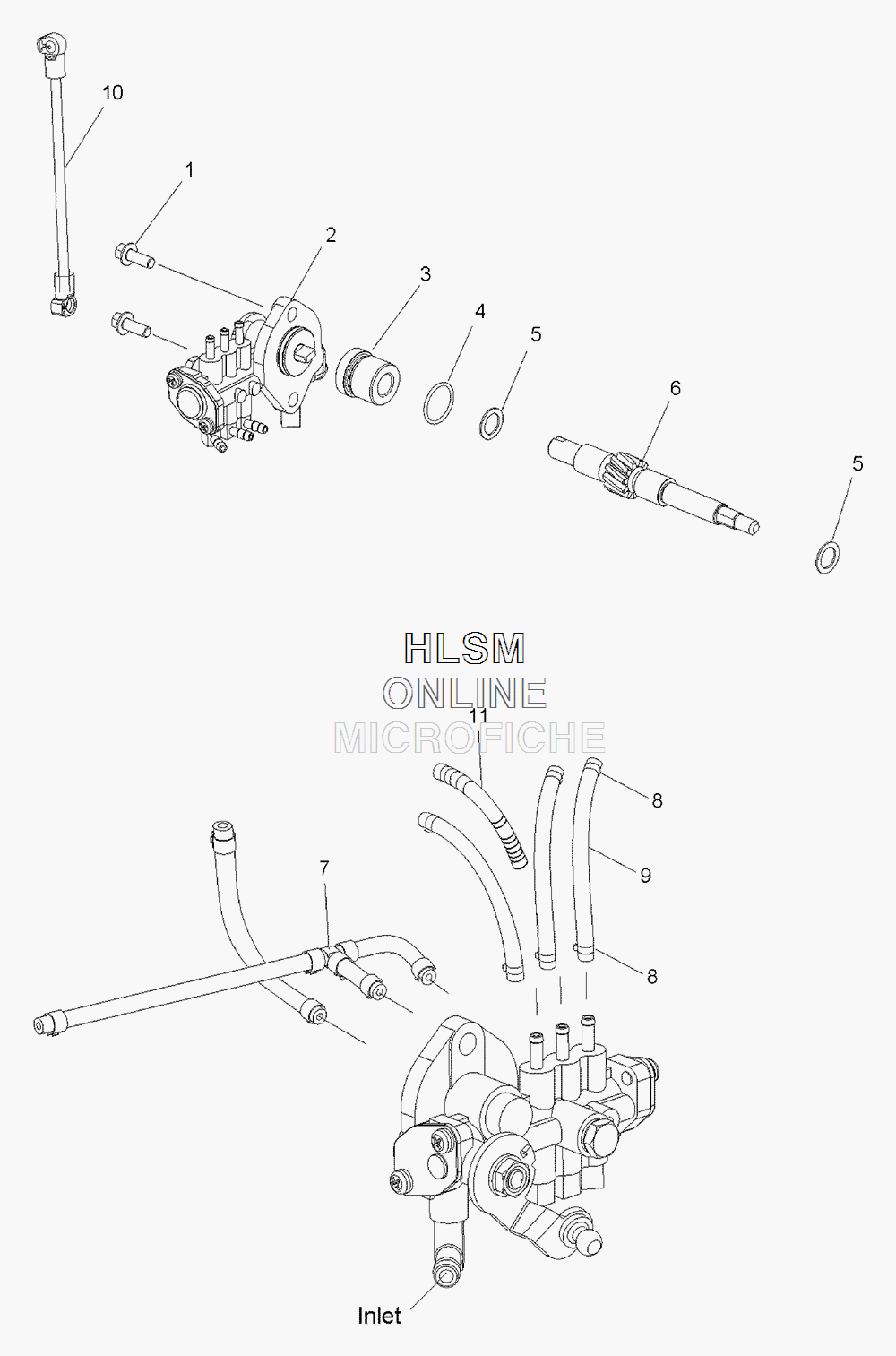

OIL PUMP W/LINES для Polaris 600 INDY [S16CB6GSA] - 2016 года выпуска
-
№АртикулНазвание
-
17518637 SCREWSCREW
-
21204695 ASM., PUMP, OILASM., PUMP, OIL
-
35136084 BEARING, PUMP SHAFT, FLANGEDBEARING, PUMP SHAFT, FLANGED
-
45412942 O-RINGO-RING
-
57555977 WASHER, THRUSTWASHER, THRUST
-
65138549 SHAFT, GEARSHAFT, GEAR
-
77052048 FITTING, TFITTING, T
-
87080603 CLAMPCLAMP
-
98450061-600 LINE, FUELLINE, FUEL
-
102521002 LINKAGE, OIL PUMPLINKAGE, OIL PUMP
-
118360056-25 TUBING, CONVOLUTEDTUBING, CONVOLUTED
