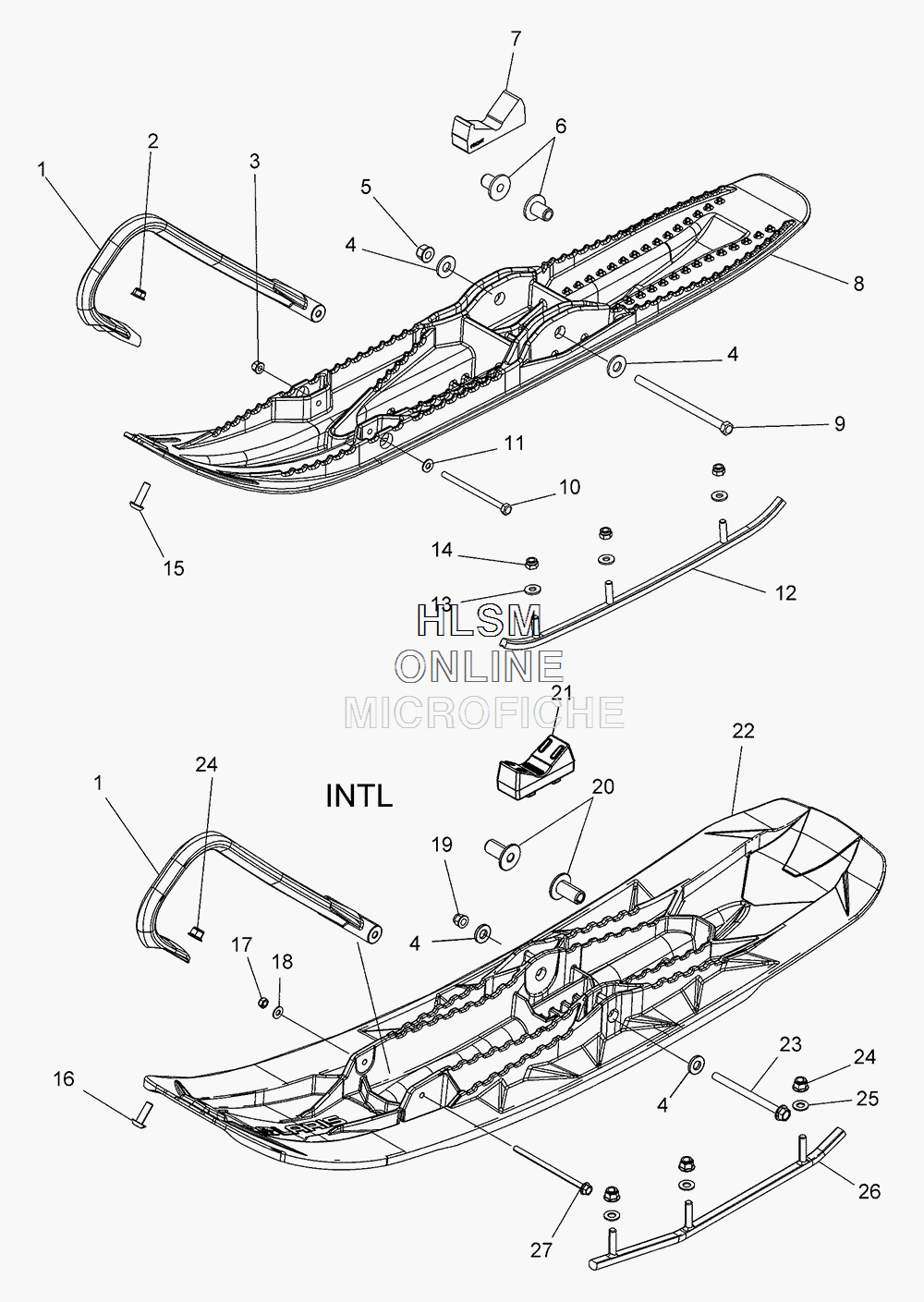

SKI ASSEMBLY для Polaris 600 WIDETRAK IQ [S16PU6NSL] - 2016 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI, BLACKTOE, PLASTIC SKI, BLACK
-
27542343 NUT, FLANGENUT, FLANGE
-
37542153 NUT, NYLOKNUT, NYLOK
-
47556130 WASHERWASHER
-
57547263 NUT, NYLOKNUT, NYLOK
-
65134797 BUSHINGBUSHING
-
75412794 STOP, SKI RUBBERSTOP, SKI RUBBER
-
81822889-070 ASM., SKI, WIDE, BLACK (INCL. 6)ASM., SKI, WIDE, BLACK (INCL. 6)
-
97518481 SCREWSCREW
-
107518655 SCREWSCREW
-
117558301 WASHER, FLATWASHER, FLAT
-
122875723 KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)
-
137555843 WASHER, FLATWASHER, FLAT
-
147542324 NUT, NYLOKNUT, NYLOK
-
157518070 SCREWSCREW
Все узлы модели:
- AIR INTAKE SYSTEM
- BACKREST W/GRAB HANDLE
- BATTERY BOX
- BRAKE CALIPER W/ DISC
- BUMPER - FRONT MOUNTING
- CHASSIS ASM.- AND FOOTWELL ASM. LEFT/RIGHT
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER ASM. LEFT/RIGHT HAND
- FRONT BRACKETS AND PLATES
- FUEL TANK
- GAUGE - MULTI FUNCTION
- GEARCASE ASSEMBLY (1 OF 2)
- GEARCASE ASSEMBLY (2 OF 2)
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD W/ FRONT HINGE ASSEMBLY
- JACKSHAFT ASSEMBLY
- NOSEPAN W/ TIE ROD BOOT
- OIL PUMP W/LINES
- OIL TANK ASSEMBLY
- REAR RACK W/ SNOWFLAP
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SEAT RISER
- SENSORS - SWITCHES - COMPONENTS
- SHIFT LINKAGE ASSEMBLY 4X6
- SHOCK - IFS
- SHOCK TOWERS
- SIDE PANELS
- • SKI ASSEMBLY
- STARTING MOTOR
- STEERING - DRAG LINK
- STEERING POST - HOOP
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAILS
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- TAILLIGHT
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TIE ROD ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WATER PUMP
- WINDSHIELD W/ MIRRORS
- WIRING HARNESS
