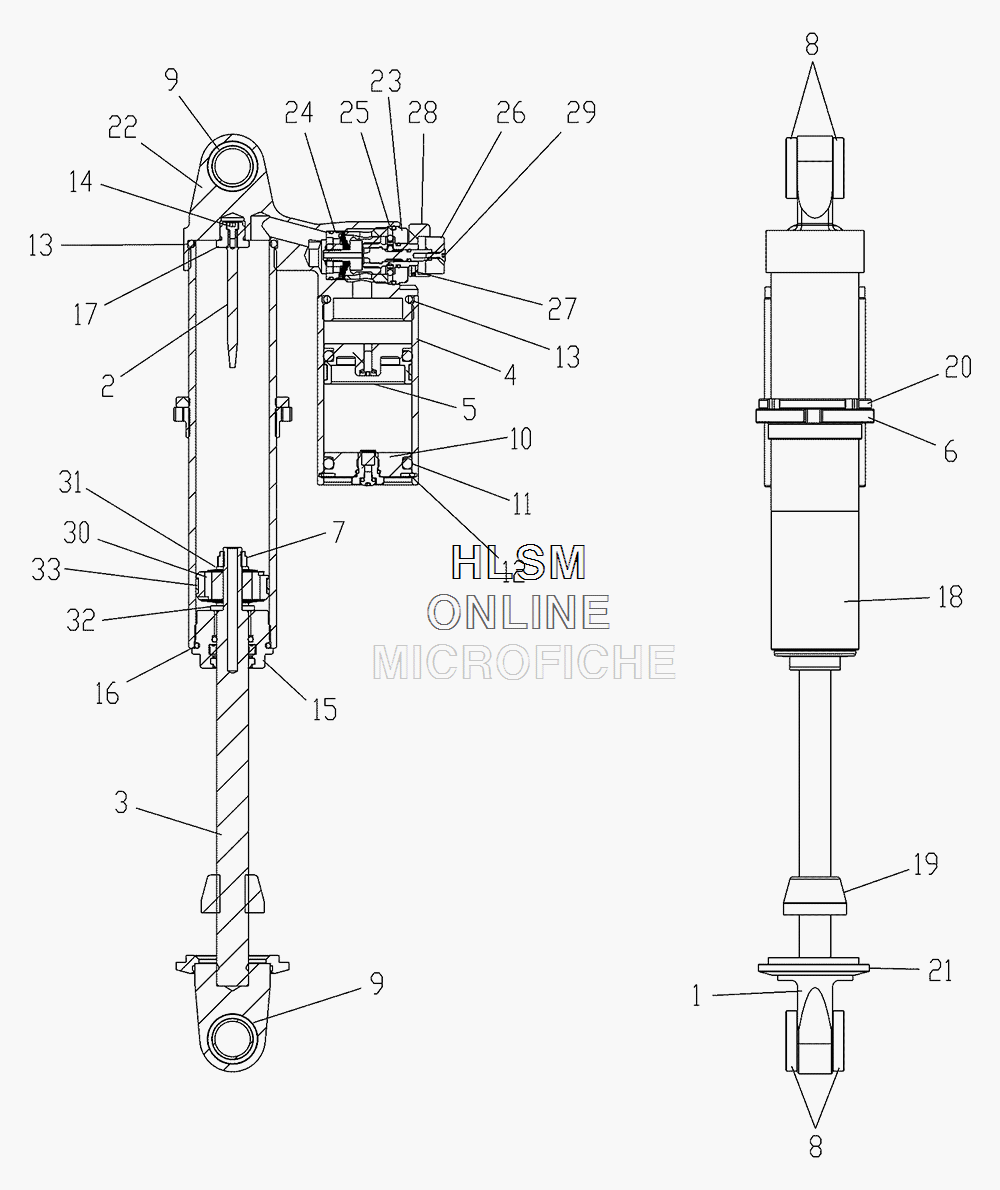

SUSPENSION - IFS SHOCK- LTD для Polaris 800 RUSH PRO-S LTD [S16DP6PSL] - 2016 года выпуска
-
№АртикулНазвание
-
-7044384 SHOCK, IFSSHOCK, IFS
-
11800471 LOOP, SHAFT, .625THDLOOP, SHAFT, .625THD
-
21800300 NEEDLE, 2.25NEEDLE, 2.25
-
31800464 SHAFT, IFS NEEDLESHAFT, IFS NEEDLE
-
41800523 BODY, RES, 2IN CLEARBODY, RES, 2IN CLEAR
-
51800739 ASM, IFP PISTON,1.75BLDASM, IFP PISTON,1.75BLD
-
61800724 ADJUSTER, SPRINGADJUSTER, SPRING
-
71800031 CRIMP NUT, 3/8 IN.CRIMP NUT, 3/8 IN.
-
81800406 BUSHINGBUSHING
-
91800405 SLEEVE, 1.15LSLEEVE, 1.15L
-
101800740 ASM, END CAP 1.750AVASM, END CAP 1.750AV
-
111800184 O-RINGO-RING
-
121800159 SNAP RINGSNAP RING
-
131800030 O-RING, BODYO-RING, BODY
-
141800074 SCREW-BLEED W/O RINGSCREW-BLEED W/O RING
-
151800414 ASM., SEAL HEADASM., SEAL HEAD
-
161800027 O-RING, BODYO-RING, BODY
-
171800301 BOLT, NEEDLEBOLT, NEEDLE
-
181800734 BODY, IFS, 8.085L, CLRBODY, IFS, 8.085L, CLR
-
191800462 BUMPER, .62 IN SHAFTBUMPER, .62 IN SHAFT
-
201800465 NUT, JAMNUT, JAM
-
211800116 RING, SPRING RETAININGRING, SPRING RETAINING
-
221800741 PIGGYBACK, 1-3/4 H/LPIGGYBACK, 1-3/4 H/L
-
231800742 ASM, ADJ. H/L SPEEDASM, ADJ. H/L SPEED
-
241800679 O-RING 1.5X21.5MMO-RING 1.5X21.5MM
-
251800680 O-RING 2.0X24.5MMO-RING 2.0X24.5MM
-
261800735 KNOB, LS DBL GRIP, BLACKKNOB, LS DBL GRIP, BLACK
-
271800736 SCREW, SET #3-38SCREW, SET #3-38
-
281800737 KNOB, HS, TRI GRIP REDKNOB, HS, TRI GRIP RED
-
291800738 SCREW, 4-40X.375SSSCREW, 4-40X.375SS
-
301800001 PISTON, CONVEXPISTON, CONVEX
-
311800050 WASHER, 3/8 IN, ANWASHER, 3/8 IN, AN
-
321800204 WASHERWASHER
-
331800297 WEAR BAND, TEFLONWEAR BAND, TEFLON
