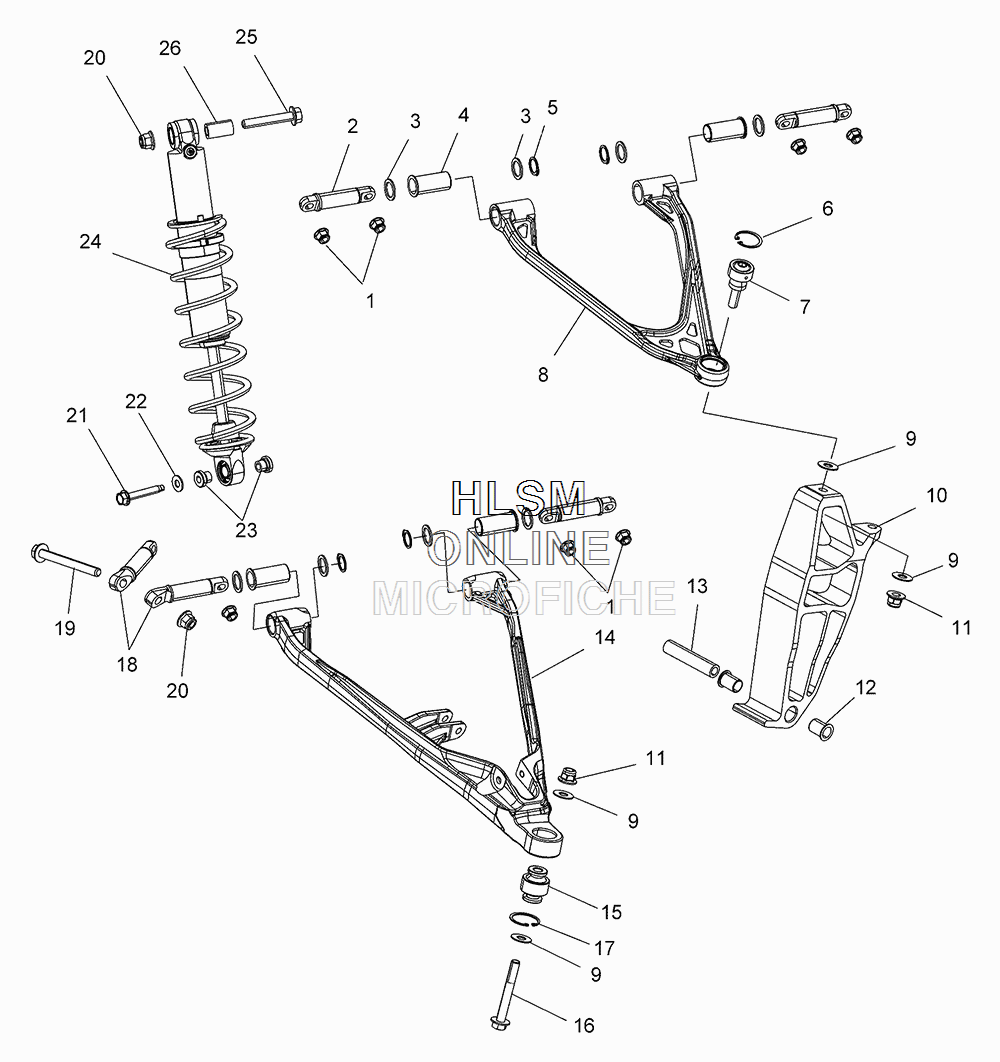

CONTROL ARMS W/SPINDLE для Polaris 800 SKS LE 155 [S16EL8PS] - 2016 года выпуска
-
№АртикулНазвание
-
17547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
25139521 SHAFT, PIVOTSHAFT, PIVOT
-
37556758 WASHERWASHER
-
45451498 BUSHING, PIVOTBUSHING, PIVOT
-
57710786 RING, RETAINING, 18MMRING, RETAINING, 18MM
-
67710642 RING, RETAINING, INT. 1.125''RING, RETAINING, INT. 1.125''
-
77061219 BALL JOINT-M10BALL JOINT-M10
-
85139443 CONTROL ARM,UPPER LEFT, NATURALCONTROL ARM,UPPER LEFT, NATURAL
-
85139444 CONTROL ARM,UPPER RIGHT, NATURALCONTROL ARM,UPPER RIGHT, NATURAL
-
97556545 WASHERWASHER
-
101824040 ASM., SPINDLE LEFT, RMK (INCL. 12)ASM., SPINDLE LEFT, RMK (INCL. 12)
-
101824041 ASM., SPINDLE RIGHT, RMK (INCL. 12)ASM., SPINDLE RIGHT, RMK (INCL. 12)
-
101824040-293 ASM., SPINDLE LEFT, RMK, INDY RED (INCL. 12)ASM., SPINDLE LEFT, RMK, INDY RED (INCL. 12)
-
101824041-293 ASM., SPINDLE RIGHT, RMK, INDY RED (INCL. 12)ASM., SPINDLE RIGHT, RMK, INDY RED (INCL. 12)
-
101824040-458 ASM., SPINDLE LEFT, RMK, MATTE BLACK (INCL. 12)ASM., SPINDLE LEFT, RMK, MATTE BLACK (INCL. 12)
-
101824041-458 ASM., SPINDLE RIGHT, RMK, MATTE BLACK (INCL. 12)ASM., SPINDLE RIGHT, RMK, MATTE BLACK (INCL. 12)
-
101824040-619 ASM., SPINDLE LEFT, RMK, VOODOO BLUE (INCL. 12)ASM., SPINDLE LEFT, RMK, VOODOO BLUE (INCL. 12)
-
101824041-619 ASM., SPINDLE RIGHT, RMK, VOODOO BLUE (INCL. 12)ASM., SPINDLE RIGHT, RMK, VOODOO BLUE (INCL. 12)
-
101824040-647 ASM., SPINDLE LEFT, RMK, ORNG BURST (INCL. 12)ASM., SPINDLE LEFT, RMK, ORNG BURST (INCL. 12)
-
101824041-647 ASM., SPINDLE RIGHT, RMK, ORNG BURST (INCL. 12)ASM., SPINDLE RIGHT, RMK, ORNG BURST (INCL. 12)
-
117547333 NUT, NYLOCNUT, NYLOC
-
117519015 SCREWSCREW
-
125438460 BUSHINGBUSHING
-
135136910 BUSHINGBUSHING
-
145139605 CONTROL ARM, LOWER,LH, NATURALCONTROL ARM, LOWER,LH, NATURAL
-
145139606 CONTROL ARM, LOWER,RH, NATURALCONTROL ARM, LOWER,RH, NATURAL
-
152204229 KIT, SPHERICAL BEARING, LOWER (INCL. 17)KIT, SPHERICAL BEARING, LOWER (INCL. 17)
-
167519286 SCREWSCREW
-
177710539 RING, RETAININGRING, RETAINING
-
185139607 SHAFT, PIVOT, LOWER CONTROL ARM, FRONTSHAFT, PIVOT, LOWER CONTROL ARM, FRONT
-
197518917 SCREWSCREW
-
207547423 NUTNUT
-
217519245 SCREWSCREW
-
227555954 WASHERWASHER
-
235138124 SPACER, ALUMSPACER, ALUM
-
257518941 SCREWSCREW
-
265137360 BUSHINGBUSHING
