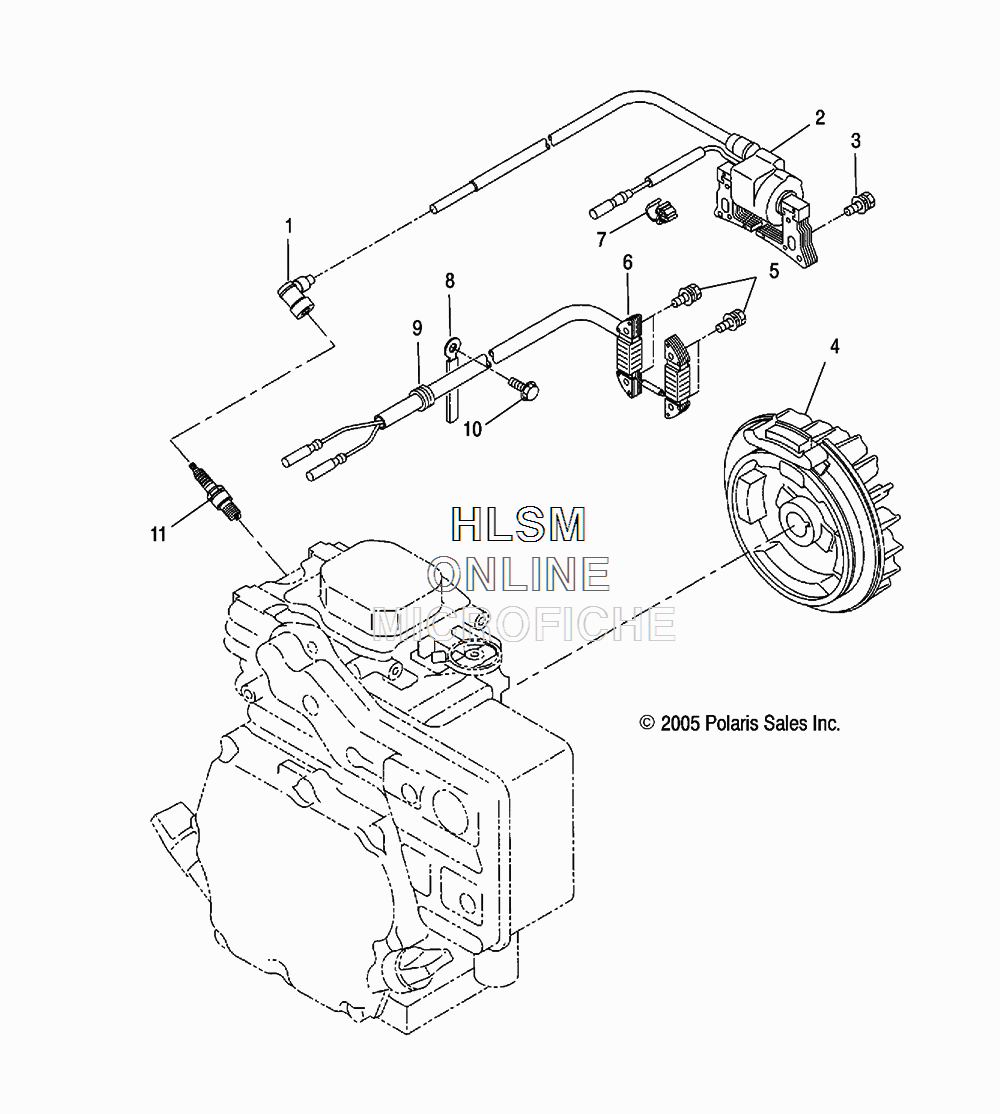

ELECTRICAL - IGNITION SYSTEM для Polaris 120 INDY - WHITE LIGHTNING [S17WAA1ASA/AEA] - 2017 года выпуска
-
№АртикулНазвание
-
13086694 CAP, SPARK PLUGCAP, SPARK PLUG
-
23090312 ASM., COIL, IGNITIONASM., COIL, IGNITION
-
33083730 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
43086677 ASM., FLYWHEELASM., FLYWHEEL
-
53085697 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
63086682 ASM., COIL, CHARGEASM., COIL, CHARGE
-
73086688 CLAMPCLAMP
-
83086720 ASM., CLAMPASM., CLAMP
-
93086687 GROMMETGROMMET
-
103085359 BOLT, FLANGEBOLT, FLANGE
-
113070185 PLUG, SPARK, NGKBR6ESPLUG, SPARK, NGKBR6ES
