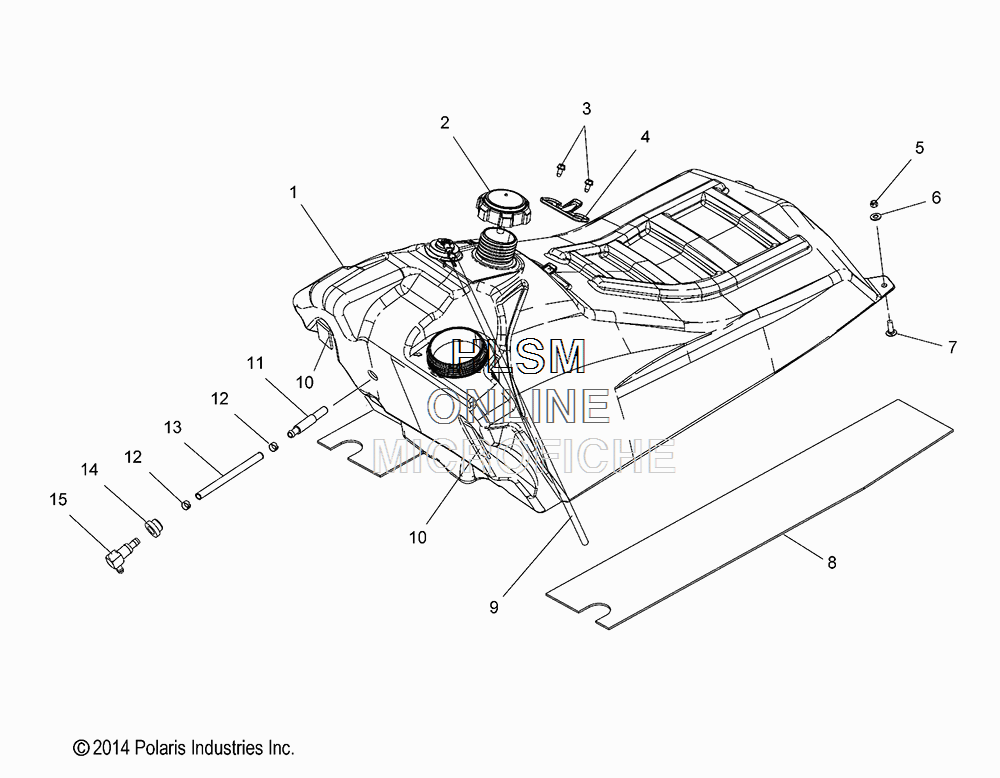

FUEL TANK для Polaris 550 INDY 144 ES (WHITE LIGHTNING) [S17CEA5BSL] - 2017 года выпуска
-
№АртикулНазвание
-
12521225 ASM., FUEL TANK [INCL. 3-4]ASM., FUEL TANK [INCL. 3-4]
-
22520815 CAP, FUEL TANK W/GAUGECAP, FUEL TANK W/GAUGE
-
37515136 SCREWSCREW
-
45247431 BRACKET, SEAT MOUNTBRACKET, SEAT MOUNT
-
57547453 NUT, NYLOKNUT, NYLOK
-
67555935 WASHERWASHER
-
77518994 BOLT, CARRIAGEBOLT, CARRIAGE
-
85813874 PAD, GAS TANK, LEFT HANDPAD, GAS TANK, LEFT HAND
-
85813875 PAD, GAS TANK, RIGHT HANDPAD, GAS TANK, RIGHT HAND
-
98450126-104 LINE, VENTLINE, VENT
-
105813729 PAD, RUBBERPAD, RUBBER
-
117052215 PICK-UP FUEL W/MESHPICK-UP FUEL W/MESH
-
127080768 RING, COMPRESSIONRING, COMPRESSION
-
138350020-160 LINE, FUELLINE, FUEL
-
145435941 GROMMET, VITONGROMMET, VITON
-
157052455 FITTING, 90 DEGREEFITTING, 90 DEGREE
