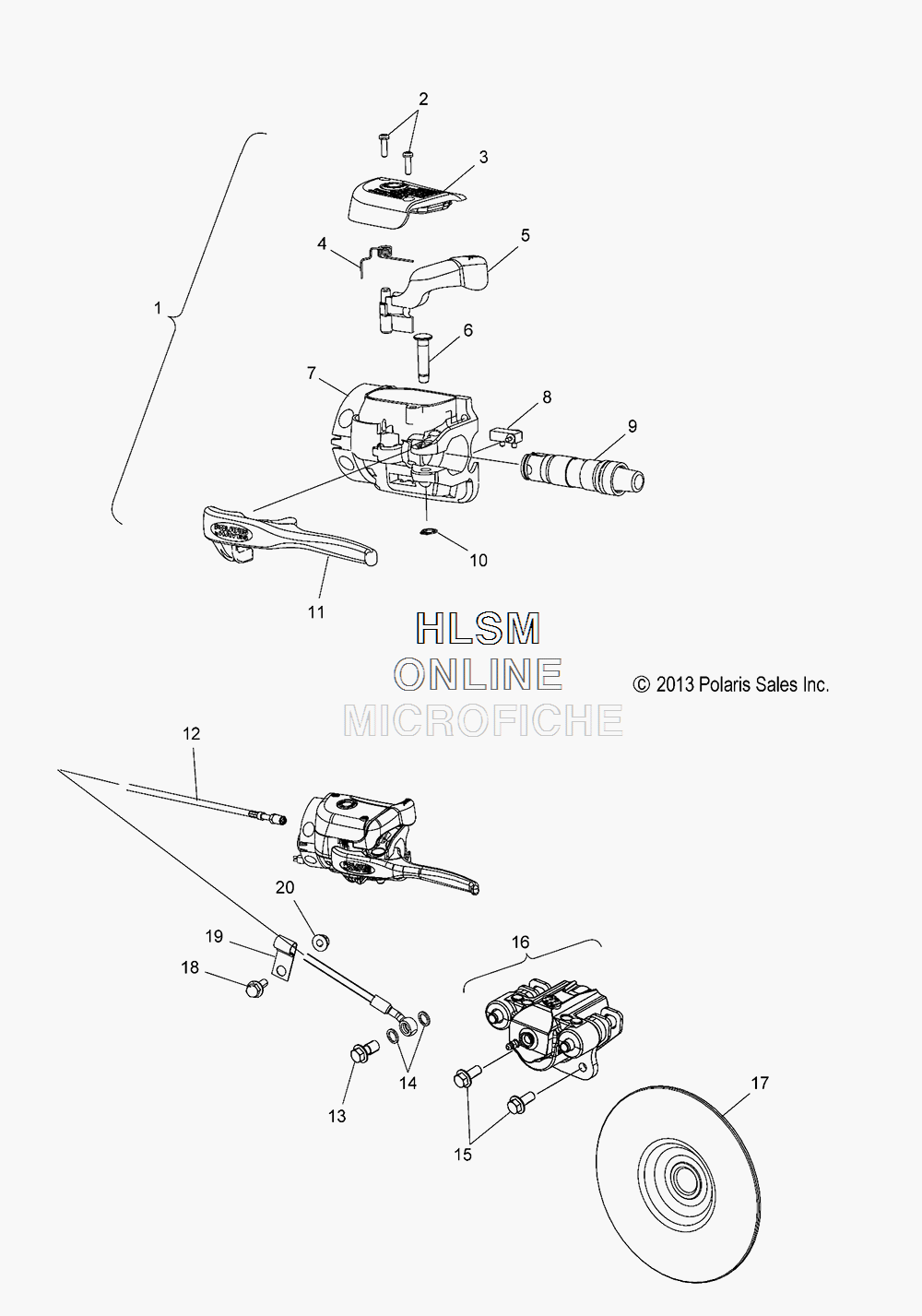

BRAKE ASSEMBLY для Polaris 550 INDY 144 (WHITE LIGHTNING) [S17CEA5BSA] - 2017 года выпуска
-
№АртикулНазвание
-
12206022 KIT, FULL ASM. [INCL. 2-4,7,9-11]KIT, FULL ASM. [INCL. 2-4,7,9-11]
-
22201254 KIT, COVER SCREWKIT, COVER SCREW
-
32202837 KIT, COVER ASSEMBLY [INCL. 2, GASKET]KIT, COVER ASSEMBLY [INCL. 2, GASKET]
-
42201250 KIT, PARK LEVER SPRINGKIT, PARK LEVER SPRING
-
52201251 KIT, PARK LEVER AND SPRINGKIT, PARK LEVER AND SPRING
-
62201946 KIT, PIVOT PIN W/SNAP RING [INCL. 10]KIT, PIVOT PIN W/SNAP RING [INCL. 10]
-
72202784 KIT, RESERVOIR [INCL. 6,10]KIT, RESERVOIR [INCL. 6,10]
-
82205908 KIT, SWITCH, STOPLIGHTKIT, SWITCH, STOPLIGHT
-
92204323 KIT, CARTRIDGE SUB ASSYKIT, CARTRIDGE SUB ASSY
-
102201945 KIT, SNAP RINGKIT, SNAP RING
-
112201943 KIT, LEVER [INCL. 6,10]KIT, LEVER [INCL. 6,10]
-
122205166 KIT, BRAKE LINE W/BANJOSKIT, BRAKE LINE W/BANJOS
-
132203392 KIT, BANJO BOLTKIT, BANJO BOLT
-
142203393 KIT, WASHER, SEAL [2 PER]KIT, WASHER, SEAL [2 PER]
-
157519243 SCREWSCREW
-
162204151 KIT, HSG. PISTON, SEALS, BLEEDERKIT, HSG. PISTON, SEALS, BLEEDER
-
162203050 KIT, SCREW, BLEEDERKIT, SCREW, BLEEDER
-
162203048 KIT, SEALS, PISTONKIT, SEALS, PISTON
-
162204140 KIT, PISTON AND SEALSKIT, PISTON AND SEALS
-
162203049 KIT, GUIDE O-RINGSKIT, GUIDE O-RINGS
-
162204137 KIT, BRAKE PADSKIT, BRAKE PADS
-
162204141 KIT, BRACKET ASM.KIT, BRACKET ASM.
-
162204139 KIT, LEFT HAND, FULL ASM.KIT, LEFT HAND, FULL ASM.
-
172204234 KIT, SERVICE DISC, SOLIDKIT, SERVICE DISC, SOLID
-
187518613 SCREWSCREW
-
197080884 CLIP, JCLIP, J
-
207547339 NUT, NYLOCNUT, NYLOC
