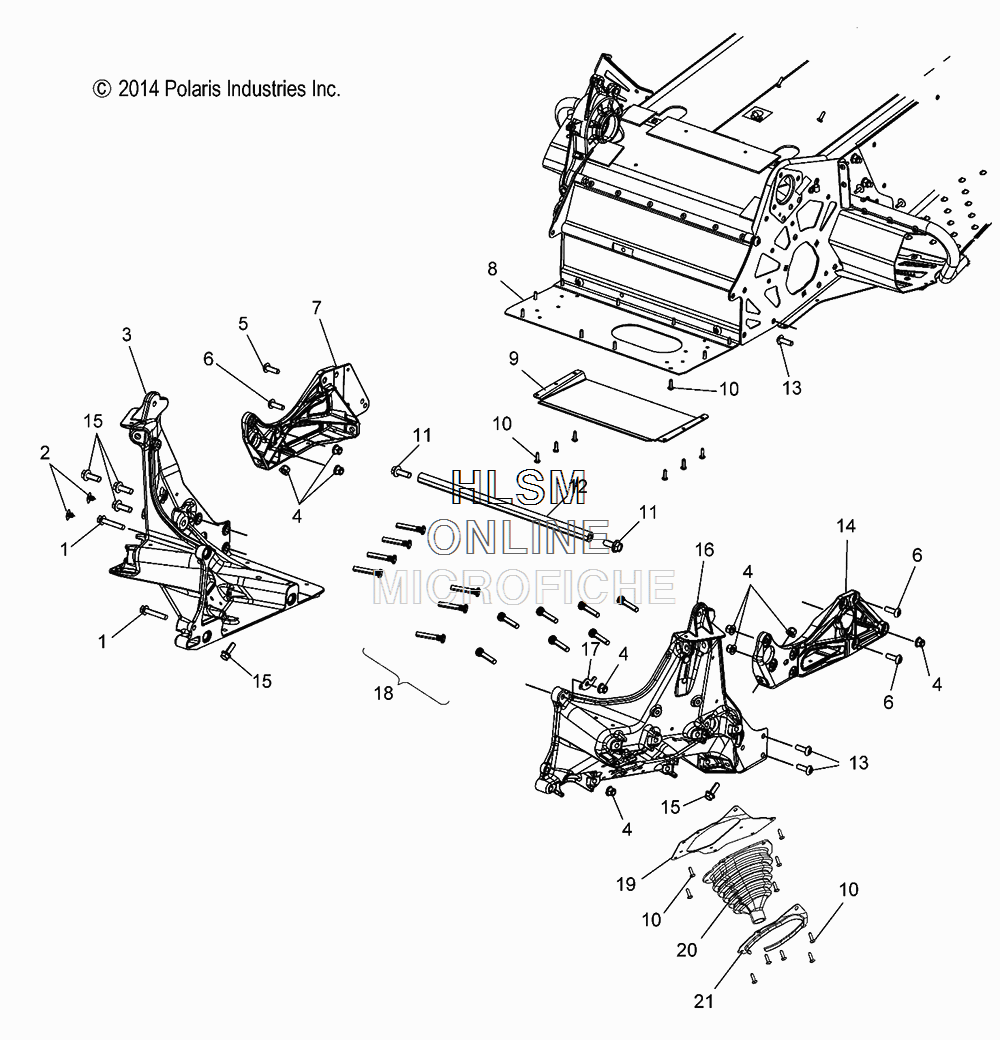

BULKHEAD ASSEMBLY для Polaris 550 INDY ADVENTURE 144 (TITANIUM METALLIC) [S17CEE5BSL] - 2017 года выпуска
-
№АртикулНазвание
-
-2204172 KIT, LORD, MIX NOZZLES, 12 PIECEKIT, LORD, MIX NOZZLES, 12 PIECE
-
-2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
-
-2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
-
17516732 SCREW-M8X45 HXFLSCREW-M8X45 HXFL
-
27670067 CLIP, DART, NYLONCLIP, DART, NYLON
-
31018222 ASM., CLIP, F/C, RIGHT HAND (INCL. 18)(REQUIRES ADHESIVE)ASM., CLIP, F/C, RIGHT HAND (INCL. 18)(REQUIRES ADHESIVE)
-
47547332 NUTNUT
-
57518953 SCREW-M8X39, TR/TXSCREW-M8X39, TR/TX
-
67518906 SCREW-M8X25 TXTRSCREW-M8X25 TXTR
-
75138693 BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)BRACE, LOWER, RIGHT HAND (REQUIRES ADHESIVE)
-
85256779 FLOOR, BULKHEAD, VENTEDFLOOR, BULKHEAD, VENTED
-
95256780 VENT, FLOORVENT, FLOOR
-
107661637 RIVETRIVET
-
117518934 SCREW-M10X25SCREW-M10X25
-
125137910 TUBE, CROSSTUBE, CROSS
-
137519070 SCREW-TXTH, M8X25SCREW-TXTH, M8X25
-
141017942 ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE)(INCL. SLEEVE)ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE)(INCL. SLEEVE)
-
157519243 SCREW-M8X25 HXFLSCREW-M8X25 HXFL
-
161018221 ASM., CLIP, F/C, LEFT HAND (INCL. 18)(REQUIRES ADHESIVE)ASM., CLIP, F/C, LEFT HAND (INCL. 18)(REQUIRES ADHESIVE)
-
175252680 BRKT., PIPE/CHASSISBRKT., PIPE/CHASSIS
-
187519204 STUDSTUD
-
195255215 REINFORCEMENT, CLIP, PLATED, LEFT HANDREINFORCEMENT, CLIP, PLATED, LEFT HAND
-
195255216 REINFORCEMENT, CLIP, PLATED, RIGHT HANDREINFORCEMENT, CLIP, PLATED, RIGHT HAND
-
205414360 BOOT, TIE RODBOOT, TIE ROD
-
215255478-067 PLATE, BOOT SEAL, LEFT HAND, (BLACK)PLATE, BOOT SEAL, LEFT HAND, (BLACK)
-
215255479-067 PLATE, BOOT SEAL, RIGHT HAND, (BLACK)PLATE, BOOT SEAL, RIGHT HAND, (BLACK)
