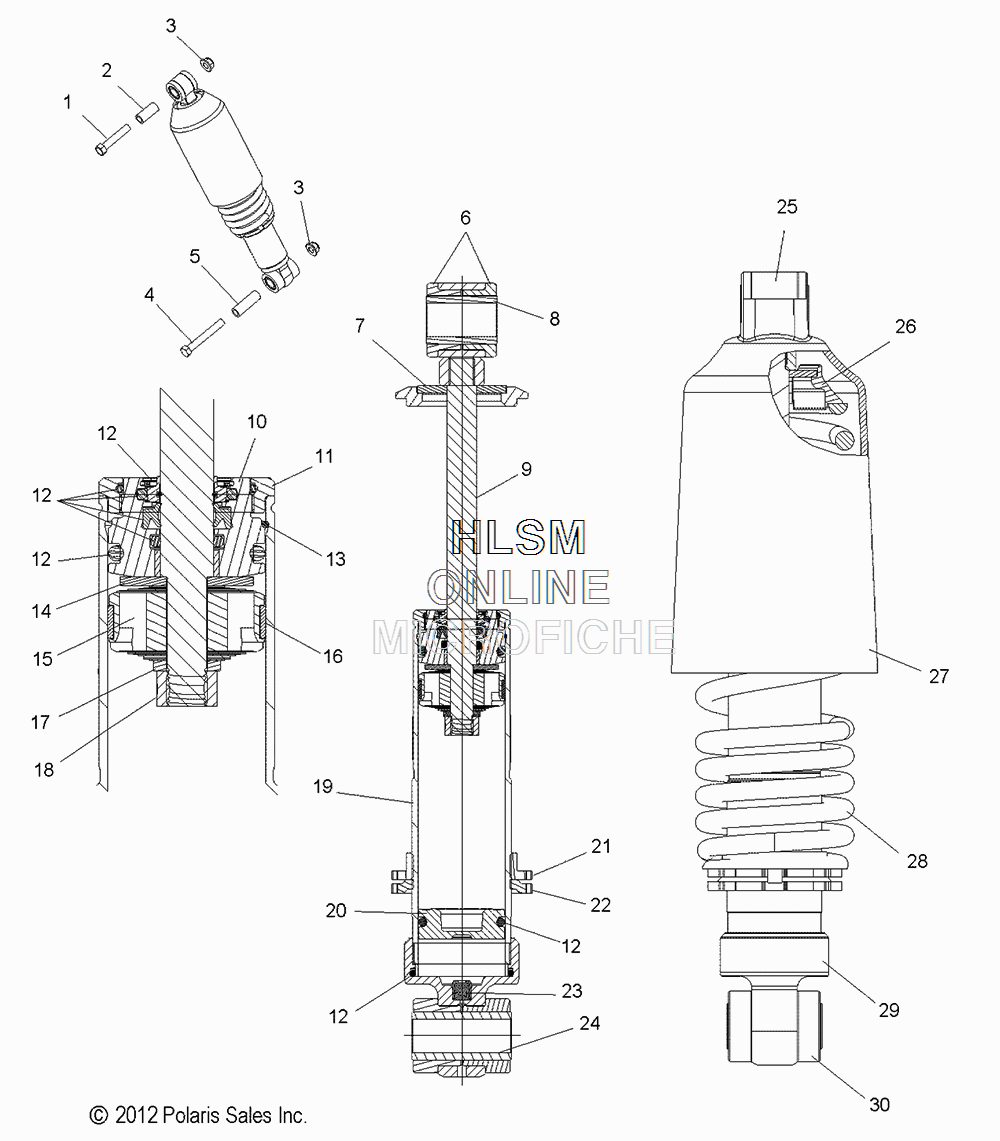

SUSPENSION- SHOCK- FRONT TRACK для Polaris 600 INDY SP ES - WHITE LIGHTINING [S17CBB6GSA] - 2017 года выпуска
-
№АртикулНазвание
-
-7043779 SHOCK, FRONT TRACK, IFPSHOCK, FRONT TRACK, IFP
-
-1500879 DECAL, ZERO PRODECAL, ZERO PRO
-
17515433 SCREWSCREW
-
25333905 BUSHINGBUSHING
-
37547263 NUT, FLG. LOCNUT, FLG. LOC
-
47515417 SCREWSCREW
-
55333906 BUSHINGBUSHING
-
61500898 BUSHINGBUSHING
-
71500896 WASHER, CUSTOMWASHER, CUSTOM
-
81500310 SLEEVESLEEVE
-
91500888 SHAFTSHAFT
-
101500890 ASM., BEARINGASM., BEARING
-
111500891 BEARING CAPBEARING CAP
-
121500710 KIT, REBUILDKIT, REBUILD
-
131500097 WIRE, RETAINING RINGWIRE, RETAINING RING
-
141500015 PLATE, BACK-UPPLATE, BACK-UP
-
151500702 PISTONPISTON
-
161500899 BEARING, EXTERNALBEARING, EXTERNAL
-
171500017 PLATE, TOP-OUTPLATE, TOP-OUT
-
181500892 NUT, REVERSIBLENUT, REVERSIBLE
-
191500887 BODYBODY
-
201500893 ASM., FLOATING PISTONASM., FLOATING PISTON
-
211500894 RING, PRELOADRING, PRELOAD
-
221500895 RING, PRELOAD BACK-UPRING, PRELOAD BACK-UP
-
231500886 ASM., AIR VALVEASM., AIR VALVE
-
241500312 SLEEVESLEEVE
-
251500889 EYELET, SHAFTEYELET, SHAFT
-
265632166 RETAINER, SPRING CONE, CASTRETAINER, SPRING CONE, CAST
-
275437525 SHIELD, SPRINGSHIELD, SPRING
-
287043147-067 SPRING, FT, (BLACK)SPRING, FT, (BLACK)
-
291500885 BODY CAPBODY CAP
-
301500897 BUSHINGBUSHING
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS W/ SIDE PANELS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/VENT
- JACKSHAFT ASSEMBLY
- NOSEPAN ASSEMBLY
- OIL BOTTLE ASSEMBLY
- OIL PUMP W/LINES
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- STEERING - UPPER W/ HANDLEBAR ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- • SUSPENSION- SHOCK- FRONT TRACK
- SUSPENSION- SHOCK- IFS
- SUSPENSION- SHOCK- REAR TRACK
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
