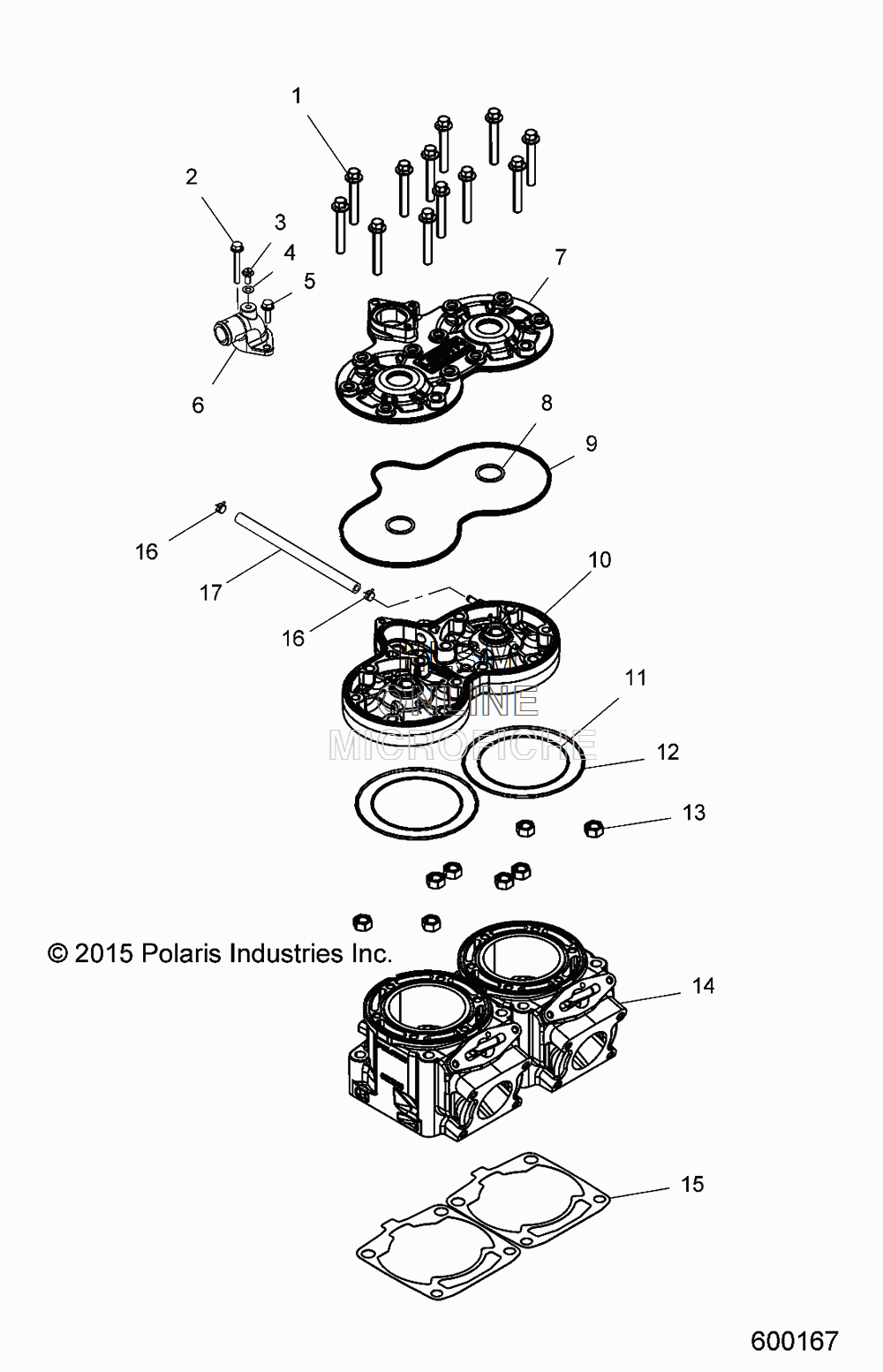

CYLINDER ASSEMBLY для Polaris 600 PRO RMK 155 (VELOCITY BLUE) [S17EFK6PSA] - 2017 года выпуска
-
№АртикулНазвание
-
17517533 SCREWSCREW
-
27516825 SCREWSCREW
-
37517679 SCREWSCREW
-
47555998 WASHER, FLATWASHER, FLAT
-
57516822 SCREWSCREW
-
65137850 COVER, THERMOSTATCOVER, THERMOSTAT
-
75138804 COVER, HEADCOVER, HEAD
-
85411411 O-RINGO-RING
-
95414803 SEAL, HEADSEAL, HEAD
-
103022590 HEAD, CYLINDERHEAD, CYLINDER
-
115410932 O-RINGO-RING
-
125415031 O-RINGO-RING
-
137547013 NUTNUT
-
143022305 CYLINDERCYLINDER
-
155813312 GASKET, CYLINDER BASE, METALGASKET, CYLINDER BASE, METAL
-
167082198 CLAMP, HOSECLAMP, HOSE
-
175415236 HOSE, COOLANTHOSE, COOLANT
