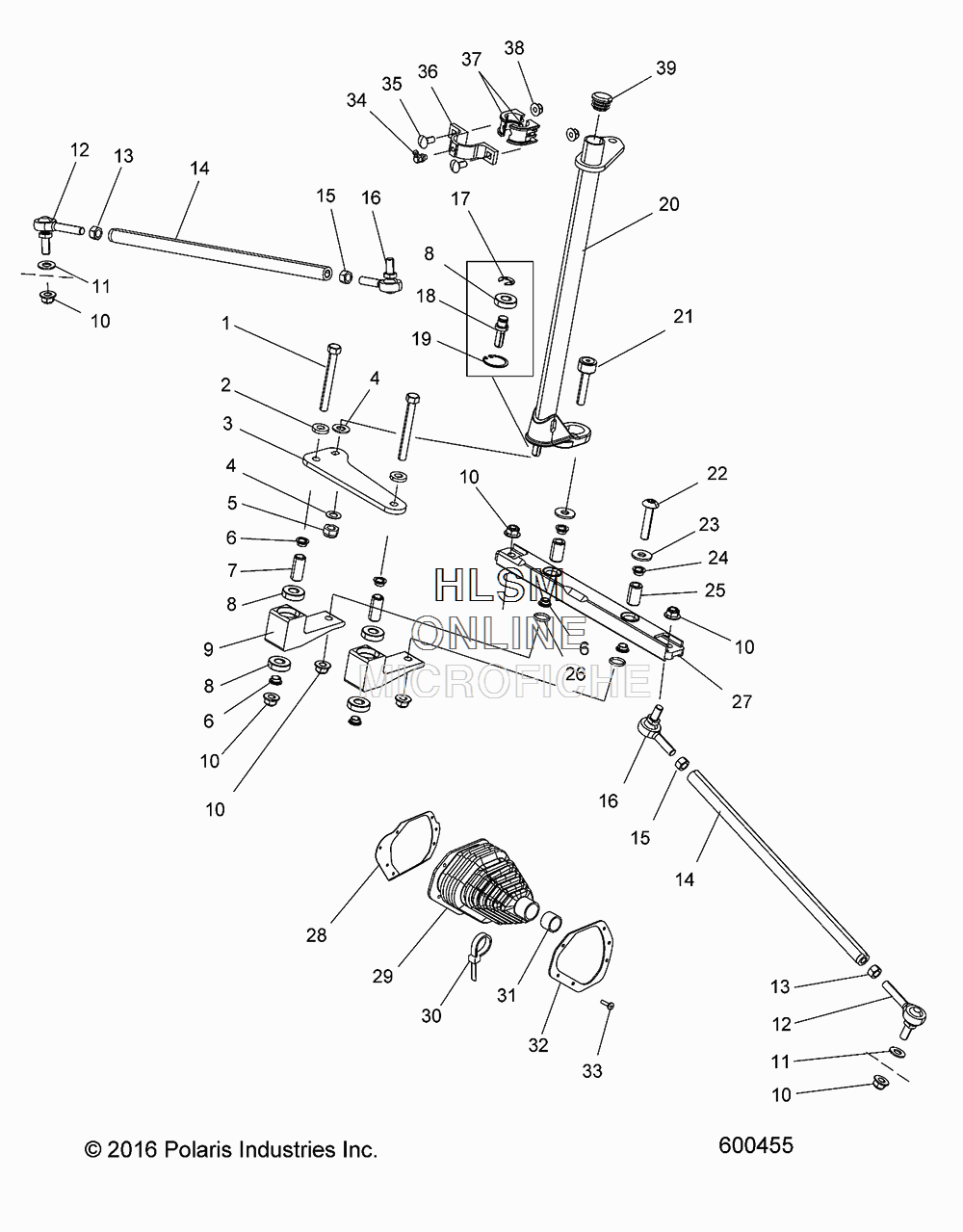

STEERING - LOWER W/TIE RODS для Polaris 600 RACER/INTL [S17MBX6JSA/JEA] - 2017 года выпуска
-
№АртикулНазвание
-
17515406 SCREWSCREW
-
27556160 WASHERWASHER
-
35262565 MOUNT-PLATE,PROGRESSIVE ARMMOUNT-PLATE,PROGRESSIVE ARM
-
47556580 WASHERWASHER
-
57547442 NUTNUT
-
65132106 BUSHING, REDUCERBUSHING, REDUCER
-
75136298 SPACER, TUBESPACER, TUBE
-
83514320 BEARING, BALLBEARING, BALL
-
91823545 ASM., IDLER, STEERING [INCL. 6-8]ASM., IDLER, STEERING [INCL. 6-8]
-
107547263 NUT, FLANGENUT, FLANGE
-
117555806 WASHER, FLATWASHER, FLAT
-
127061063 ROD END, LEFT HANDROD END, LEFT HAND
-
137542424 NUT, LEFT HANDNUT, LEFT HAND
-
145135746 TIE RODTIE ROD
-
157542401 NUTNUT
-
167061136 ROD END, RIGHT HANDROD END, RIGHT HAND
-
177710901 RING-RETAINING, "E",EXT., .500RING-RETAINING, "E",EXT., .500
-
187519163 STUD-SPACER M10X1.5 8.8 ZODSTUD-SPACER M10X1.5 8.8 ZOD
-
197710642 RING-RET INT 1.125"RING-RET INT 1.125"
-
201824510-329 STEERING POST-LOWER, RACE [INCL. 8,17-19]STEERING POST-LOWER, RACE [INCL. 8,17-19]
-
213514969 CAM-FOLLOWER STEERINGCAM-FOLLOWER STEERING
-
227518464 SCREWSCREW
-
237555983 WASHERWASHER
-
255134692 PIVOT, RACK, STEERINGPIVOT, RACK, STEERING
-
265411220 O-RINGO-RING
-
271824514 ASM., RACK, STEERING [INCL. BUSHINGS]ASM., RACK, STEERING [INCL. BUSHINGS]
-
285249642 COVER, TIE ROD BOOT, RIGHT HANDCOVER, TIE ROD BOOT, RIGHT HAND
-
285249641 COVER, TIE ROD BOOT, LEFT HANDCOVER, TIE ROD BOOT, LEFT HAND
-
295412745 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
295412744 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
307080138 CABLE TIECABLE TIE
-
315436174 BUSHING, TIE ROD BOOTBUSHING, TIE ROD BOOT
-
325249226 PLATE, TIE ROD BOOT, LEFT HANDPLATE, TIE ROD BOOT, LEFT HAND
-
325249227 PLATE, TIE ROD BOOT, RIGHT HANDPLATE, TIE ROD BOOT, RIGHT HAND
-
337518284 SCREWSCREW
-
347080510 FITTING, ZERKFITTING, ZERK
-
357512377 SCREW, RIGHT HAND CARSCREW, RIGHT HAND CAR
-
365132967 BRKT-STEERING POST, ALUMBRKT-STEERING POST, ALUM
-
375453688 BUSHING-STEERING POSTBUSHING-STEERING POST
-
387542343 NUT-HXFLG NYLNUT-HXFLG NYL
-
395432831 PLUG-END CAPPLUG-END CAP
