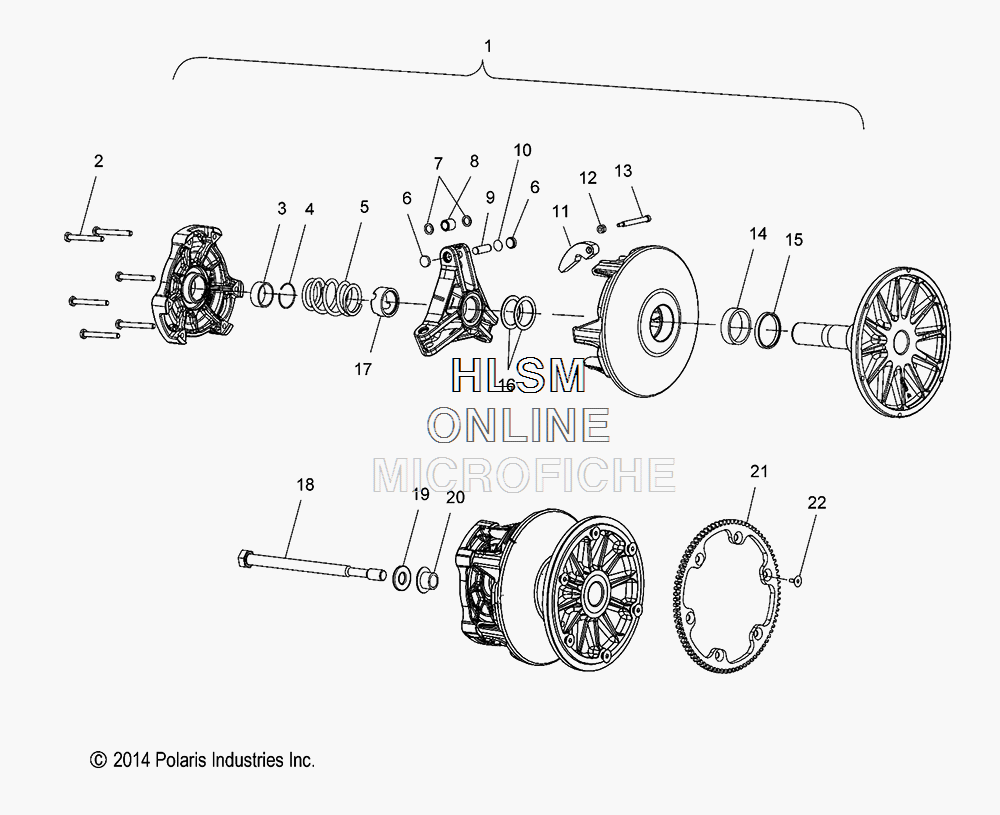

CLUTCH - PRIMARY для Polaris 600 RUSH PRO-S (BLACK PEARL) [S17DCH6PSA] - 2017 года выпуска
-
№АртикулНазвание
-
11323212 ASM., DRIVE CLUTCH, BASIC, E.S. (INCL. 2-4,6-10,14-17)ASM., DRIVE CLUTCH, BASIC, E.S. (INCL. 2-4,6-10,14-17)
-
11323211 ASM., DRIVE CLUTCH, BASIC (NON E.S.)(INCL. 2-4,6-10,14-17)ASM., DRIVE CLUTCH, BASIC (NON E.S.)(INCL. 2-4,6-10,14-17)
-
27518349 BOLT, FLANGEBOLT, FLANGE
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57043829 SPRING, CLUTCH, HP140/330SPRING, CLUTCH, HP140/330
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
95133079 PIN, ROLLERPIN, ROLLER
-
102200387 KIT, SHIM, DRIVE CLUTCHKIT, SHIM, DRIVE CLUTCH
-
111321585 ASM., WEIGHT/BUSHING, 10-64ASM., WEIGHT/BUSHING, 10-64
-
127541906 NUT, FLEXLOCNUT, FLEXLOC
-
137515105 PIN, HARDENED WEIGHTPIN, HARDENED WEIGHT
-
143514641 BEARING, SLEEVEBEARING, SLEEVE
-
155010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
165242981 SPACER, .025SPACER, .025
-
165210752 SPACER, .020SPACER, .020
-
165210753 SPACER, .032SPACER, .032
-
165210754 SPACER, .050SPACER, .050
-
175020425 NUT, JAMNUT, JAM
-
187518412 SCREWSCREW
-
197556702 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
212870002 KIT, GEAR, STARTER, RING (E.S.)(INCL. 22)KIT, GEAR, STARTER, RING (E.S.)(INCL. 22)
-
227515351 SCREW (E.S.)SCREW (E.S.)
