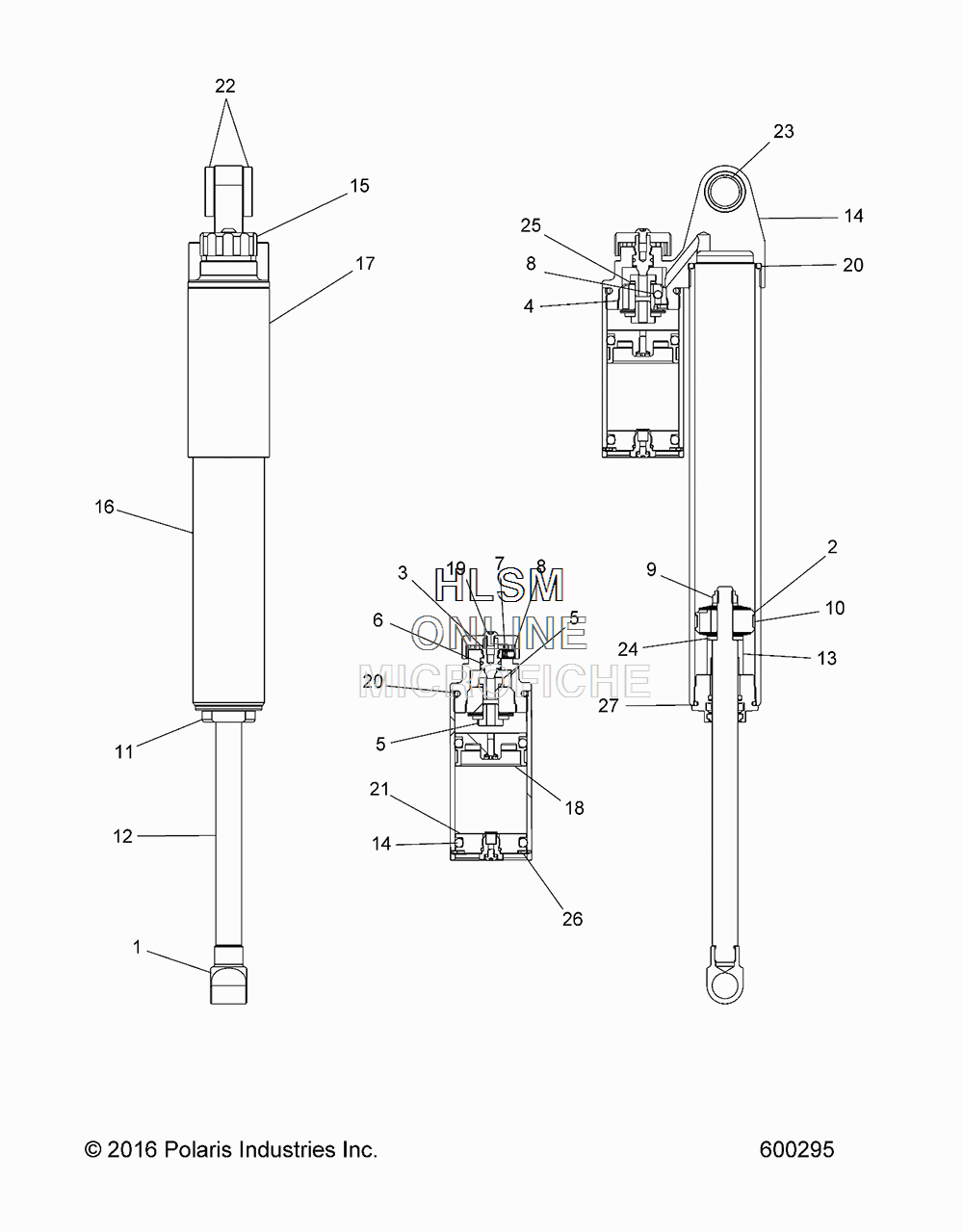

SUSPENSION - REAR SHOCK TRACK для Polaris 600 SWITCHBACK ASSAULT 144 2.0 ES (BLACK PEARL) [S17EEC6PSR] - 2017 года выпуска
-
№АртикулНазвание
-
-7044379 SHOCK, REAR TRACK, WALKER EVANSSHOCK, REAR TRACK, WALKER EVANS
-
11800096 LOOP, SHAFTLOOP, SHAFT
-
21800001 PISTON, CONVEXPISTON, CONVEX
-
31800352 STUD, CLICKERSTUD, CLICKER
-
41800217 PISTON, CLICKERPISTON, CLICKER
-
51800219 BOLT, CLICKERBOLT, CLICKER
-
61800215 O-RING, STUDO-RING, STUD
-
71800128 SPRING, D-TENTSPRING, D-TENT
-
81800127 BALL, D-TENTBALL, D-TENT
-
91800031 NUT, CRIMPNUT, CRIMP
-
101800297 BAND, WEARBAND, WEAR
-
111800414 ASM., SEAL HEADASM., SEAL HEAD
-
121800784 SHAFTSHAFT
-
131800377 SPACER, SHAFTSPACER, SHAFT
-
141800184 O-RING 2-234O-RING 2-234
-
151800418 KNOB, CLICKER, (BLACK)KNOB, CLICKER, (BLACK)
-
161800786 BODY, REAR TRACK, (BLACK)BODY, REAR TRACK, (BLACK)
-
171800668 RESERVOIRRESERVOIR
-
181800739 PISTON, IFPPISTON, IFP
-
191800357 SCREW, BTN HDSCREW, BTN HD
-
201800030 O-RING 2-222O-RING 2-222
-
211800740 ASM., END CAPASM., END CAP
-
221800406 BUSHINGBUSHING
-
231800405 SLEEVESLEEVE
-
241800204 WASHERWASHER
-
251800050 WASHERWASHER
-
261800159 SNAP RING, 1.75 IDSNAP RING, 1.75 ID
-
271800027 O-RING 2-125O-RING 2-125
