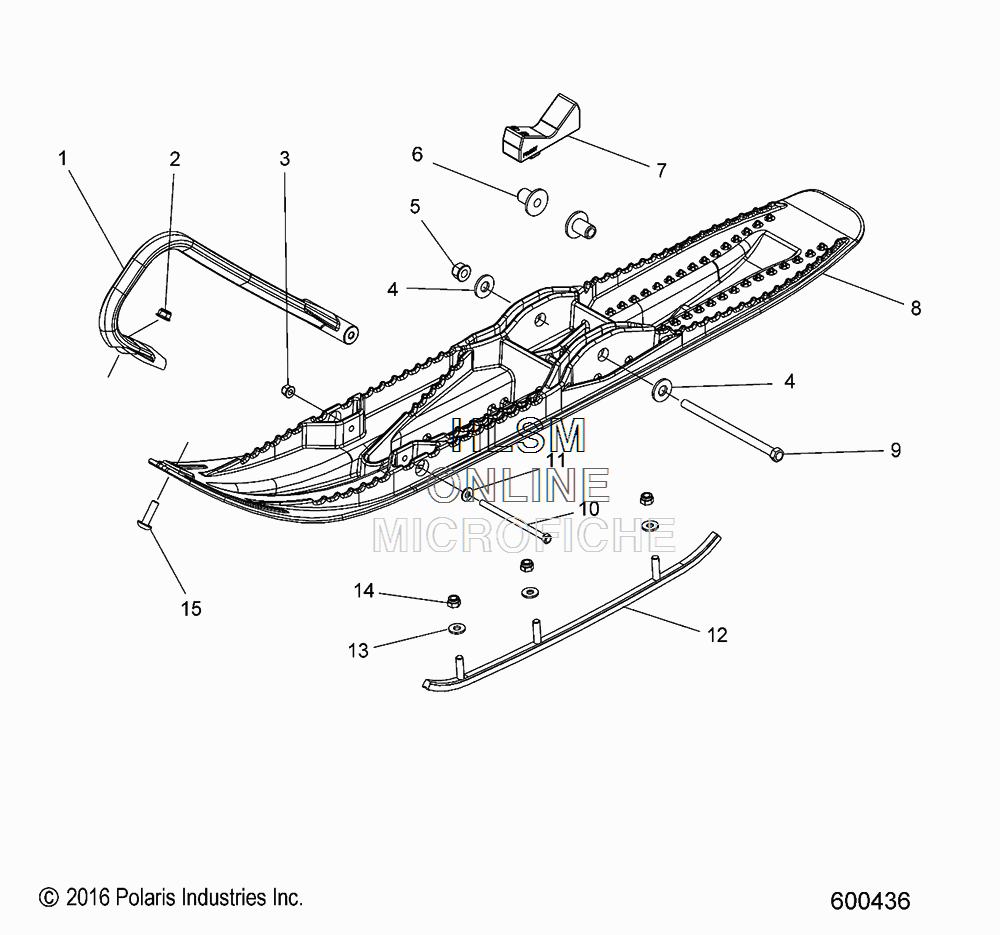

SKI ASSEMBLY для Polaris 600 SWITCHBACK PRO-X (INTL) [S17DDJ6PEM] - 2017 года выпуска
![](/wa-data/public/shop/sheme/polaris/snow/fabef3ce-bd36-4f3c-b50b-981e06b90440.gif)
-
№АртикулНазвание
-
15435681-293 TOE, PLASTIC SKI, (INDY RED)TOE, PLASTIC SKI, (INDY RED)
-
27542343 NUT, FLANGENUT, FLANGE
-
37542153 NUT, NYLOKNUT, NYLOK
-
47556130 WASHERWASHER
-
57547423 NUT, NYLOKNUT, NYLOK
-
65136908 BUSHING, PLASTIC SKI, METRICBUSHING, PLASTIC SKI, METRIC
-
75412794 STOP, SKI RUBBER, RMKSTOP, SKI RUBBER, RMK
-
81823660-070 ASM., SKI, WIDE, (BLACK) (INCL. 6)ASM., SKI, WIDE, (BLACK) (INCL. 6)
-
97519098 SCREWSCREW
-
107518655 SCREWSCREW
-
117558301 WASHER, FLATWASHER, FLAT
-
122875723 KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)KIT, SKAG, SINGLE, 3 INCH, 60 DEGREE (PAIR)
-
137555843 WASHER, FLATWASHER, FLAT
-
147542324 NUT, NYLOKNUT, NYLOK
-
157518070 SCREWSCREW
