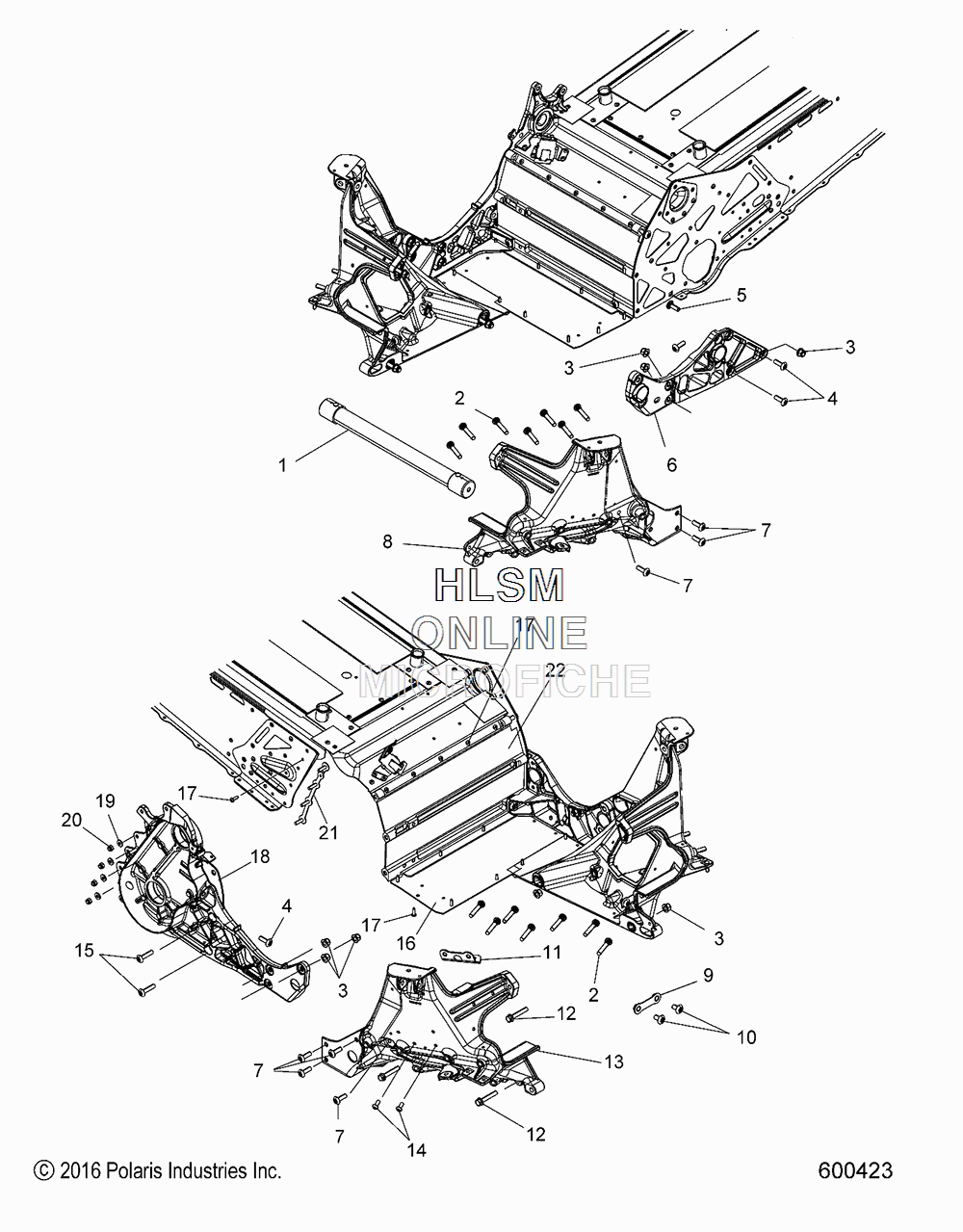

BULKHEAD ASSEMBLY для Polaris 800 PRO RMK LE 174 3inch [S17EHP8P] - 2017 года выпуска
-
№АртикулНазвание
-
-2204172 KIT, LORD, MIX NOZZLES, 12 PIECEKIT, LORD, MIX NOZZLES, 12 PIECE
-
-2204171 KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]
-
-2204400 KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]
-
11020287 ASM., CROSS TUBE, UCA, ALASM., CROSS TUBE, UCA, AL
-
27519204 STUDSTUD
-
37547332 NUTNUT
-
47518906 SCREWSCREW
-
57520297 BOLT, CARRIAGEBOLT, CARRIAGE
-
61019183 ASM., BRACE, LOWER, LEFT HAND [REQUIRES ADHESIVE][INCL. SLEEVE]ASM., BRACE, LOWER, LEFT HAND [REQUIRES ADHESIVE][INCL. SLEEVE]
-
77519070 SCREWSCREW
-
81019665 ASM., CLIP W/STUD, LEFT HAND [INCL. STUDS][REQUIRES ADHESIVE]ASM., CLIP W/STUD, LEFT HAND [INCL. STUDS][REQUIRES ADHESIVE]
-
91020829 ASM., STUD PLATEASM., STUD PLATE
-
107519109 SCREWSCREW
-
111019666 ASM., BRKT., IDLER, TOPASM., BRKT., IDLER, TOP
-
127516732 SCREWSCREW
-
131019182 ASM., CLIP W/STUD, RIGHT HAND [INCL. STUDS][REQUIRES ADHESIVE]ASM., CLIP W/STUD, RIGHT HAND [INCL. STUDS][REQUIRES ADHESIVE]
-
147518656 SCREWSCREW
-
157519049 SCREWSCREW
-
165256849 FLOOR, BULKHEADFLOOR, BULKHEAD
-
177661637 RIVETRIVET
-
197556588 WASHERWASHER
-
207547505 NUTNUT
-
211020066 ASM., STUD PLATEASM., STUD PLATE
-
225138382 CLOSEOFF, BULKHEADCLOSEOFF, BULKHEAD
