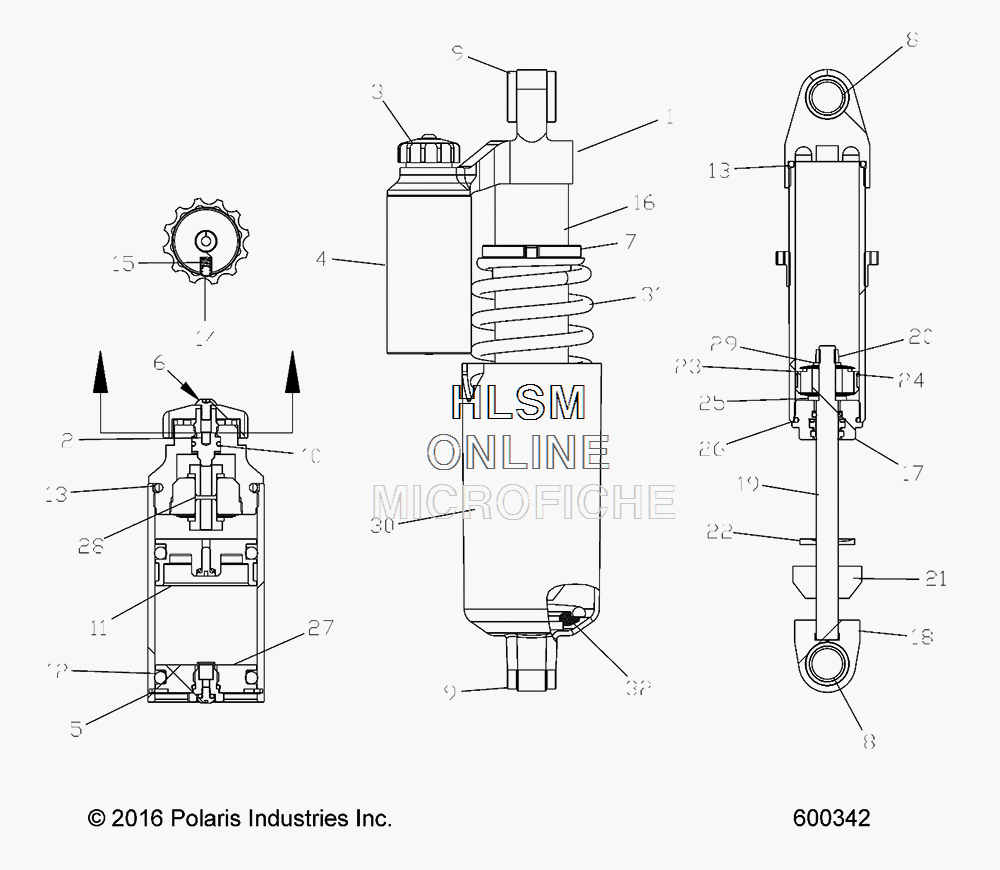

SUSPENSION - FRONT SHOCK TRACK (BLACK) для Polaris 800 RUSH PRO-S SNOWCHECK SELECT [S17DCH8PS] - 2017 года выпуска
-
№АртикулНазвание
-
-7044565 SHOCK, FT, BLACK, WALKER EVANSSHOCK, FT, BLACK, WALKER EVANS
-
11800646 PIGGY BACK, 65DEGREE, CLRPIGGY BACK, 65DEGREE, CLR
-
21800352 STUD, CLICKERSTUD, CLICKER
-
31800460 CLICKER KNOB, (BLACK)CLICKER KNOB, (BLACK)
-
41800419 BODY, RESERVOIR, (BLACK)BODY, RESERVOIR, (BLACK)
-
51800159 SNAP RINGSNAP RING
-
61800357 SCREW, BTN HDSCREW, BTN HD
-
71800046 RETAINER, SPRING NUTRETAINER, SPRING NUT
-
81800405 SLEEVESLEEVE
-
91800406 BUSHINGBUSHING
-
101800501 O-RING 2-012O-RING 2-012
-
111800739 ASM., IFP PISTONASM., IFP PISTON
-
121800184 O-RING 2-324O-RING 2-324
-
131800030 O-RING 2-222O-RING 2-222
-
141800127 BALL, DETENTBALL, DETENT
-
151800128 SPRING, DETENTSPRING, DETENT
-
161800647 BODY, FT, 5.96L, (BLACK)BODY, FT, 5.96L, (BLACK)
-
171800788 ASM., SEAL HEADASM., SEAL HEAD
-
181800408 LOOP, SHAFTLOOP, SHAFT
-
191800789 SHAFT, .50X6.73LSHAFT, .50X6.73L
-
201800031 NUT, CRIMPNUT, CRIMP
-
211800649 BUMP STOPBUMP STOP
-
221800790 SCRAPER, W/GRVS, .50 SHAFTSCRAPER, W/GRVS, .50 SHAFT
-
231800001 PISTON, CONVEXPISTON, CONVEX
-
241800297 WEAR BANDWEAR BAND
-
251800204 WASHERWASHER
-
261800027 O-RING 2-125O-RING 2-125
-
271800740 ASM., END CAP, CLRASM., END CAP, CLR
-
281800791 ASM., CLICKER PISTONASM., CLICKER PISTON
-
291800050 WASHERWASHER
-
305452841 SHIELD, SHOCKSHIELD, SHOCK
-
317043957-133 SPRING, COMP., 280#, (WHITE)SPRING, COMP., 280#, (WHITE)
-
325020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
