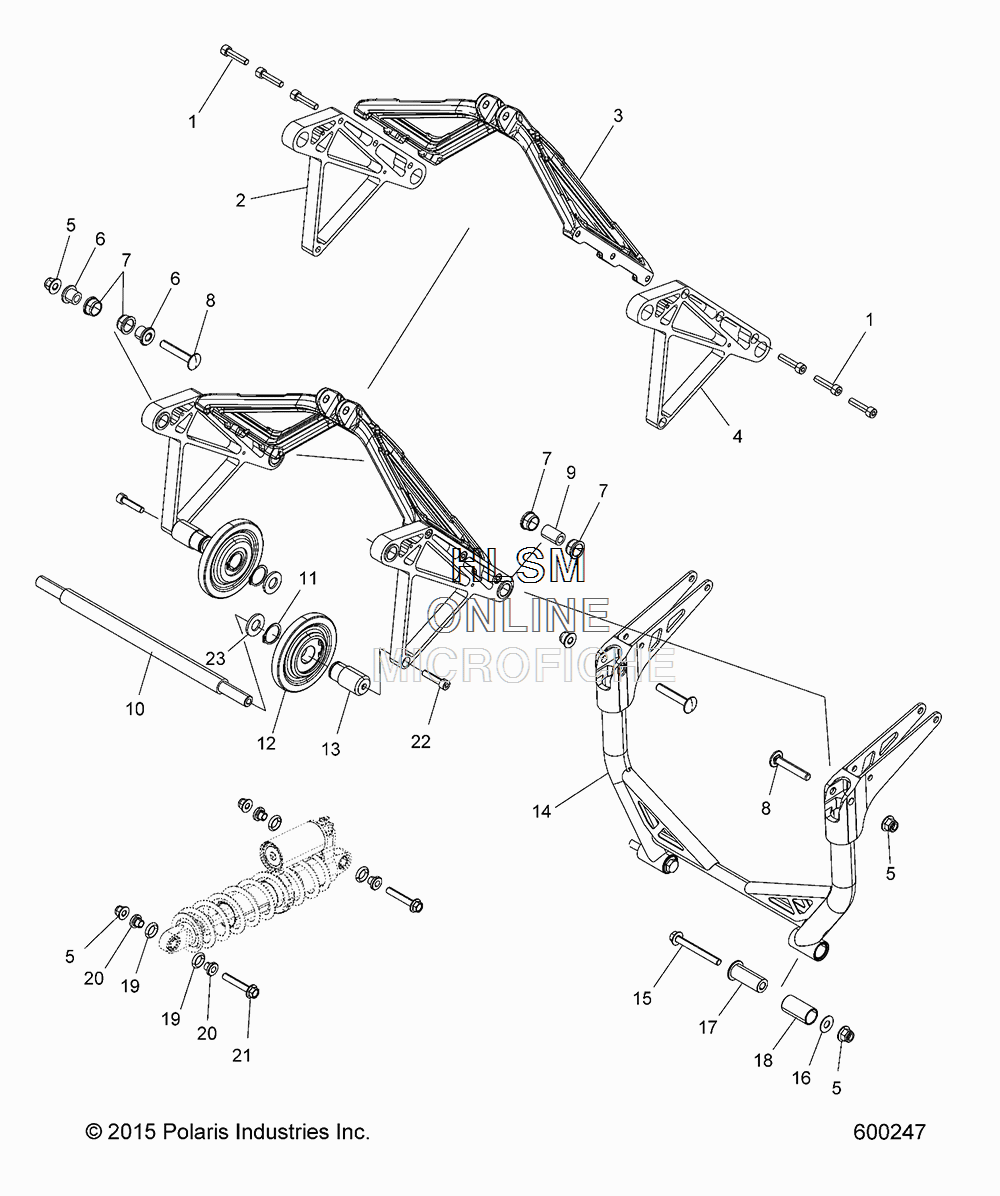

SUSPENSION - CRANK ASSEMBLY - REAR для Polaris 800 RUSH XCR (INDY RED) [S17DCL8PSA/PEL] - 2017 года выпуска
-
№АртикулНазвание
-
17519981 SCREWSCREW
-
25138644 CRANK, SIDE, RIGHT HANDCRANK, SIDE, RIGHT HAND
-
35138645 CRANK, CENTERCRANK, CENTER
-
45138643 CRANK, SIDE, LEFT HANDCRANK, SIDE, LEFT HAND
-
57547423 NUTNUT
-
65138652 SHAFT, RPA, UPPER LWTSHAFT, RPA, UPPER LWT
-
75438876 BUSHING, CRANKBUSHING, CRANK
-
87519982 BOLT, CARRIAGEBOLT, CARRIAGE
-
95138654 SHAFT, PIVOT, LWT UPPERSHAFT, PIVOT, LWT UPPER
-
105139816 SHAFT, CARRIERSHAFT, CARRIER
-
117710603 RING, RETAININGRING, RETAINING
-
121590538 ASM., WHEEL, CARRIER (INCL. 11,13)ASM., WHEEL, CARRIER (INCL. 11,13)
-
135139469 SPACER, CARRIERSPACER, CARRIER
-
141543708-458 ASM., REAR PIVOT, (MATTE BLK) (INCL. 18)ASM., REAR PIVOT, (MATTE BLK) (INCL. 18)
-
157519790 SCREWSCREW
-
167556545 WASHERWASHER
-
175137367 SHAFT, PIVOT, LWT LOWERSHAFT, PIVOT, LWT LOWER
-
185438875 BUSHING, PIVOTBUSHING, PIVOT
-
195412290 O-RINGO-RING
-
205136530 SPACERSPACER
-
217518941 SCREW-M10X60SCREW-M10X60
-
227520217 SCREW-SH, M8X50SCREW-SH, M8X50
-
237556004 WASHERWASHER
