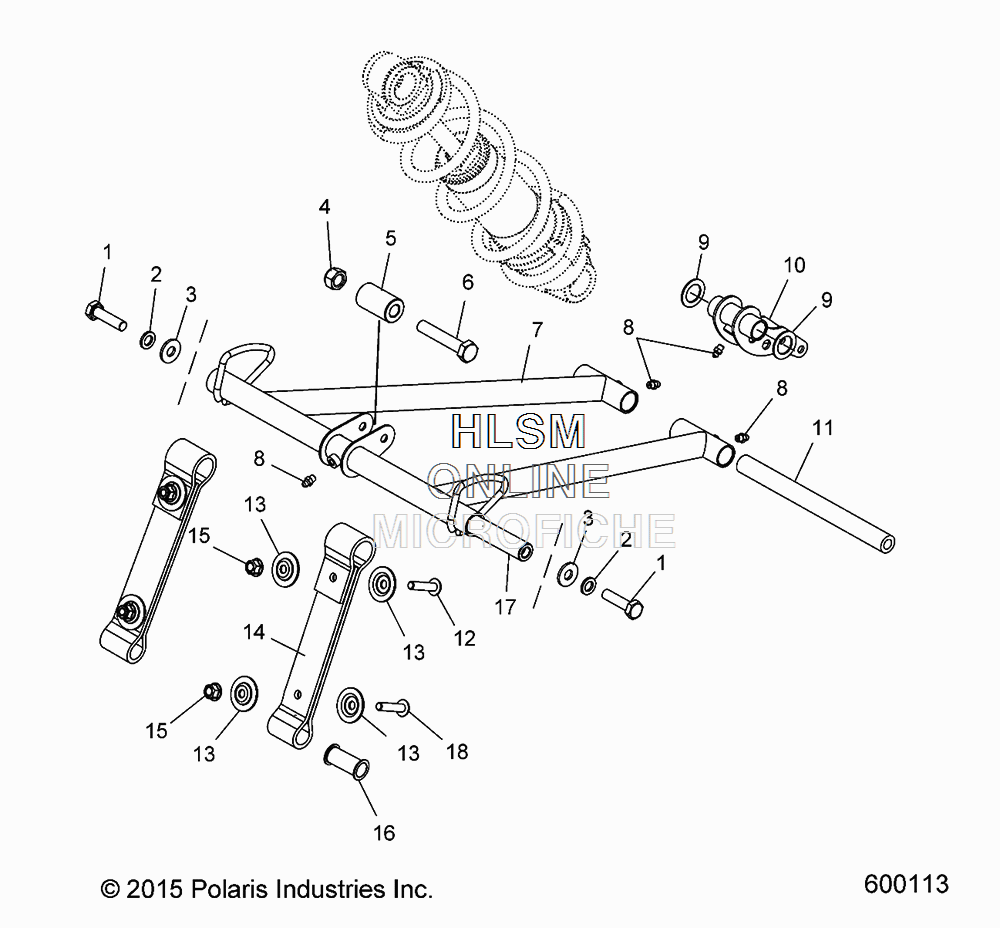

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 800 SKS 155 SNOWCHECK SELECT [S17EFS8PS] - 2017 года выпуска
-
№АртикулНазвание
-
17519223 SCREWSCREW
-
27556558 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37556559 WASHERWASHER
-
47547480 NUTNUT
-
51823987 ASM., BUSHINGASM., BUSHING
-
67519097 SCREWSCREW
-
71543496-329 ARM, TORQUE, FRONT, (BLACK)ARM, TORQUE, FRONT, (BLACK)
-
87080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
97556581 WASHERWASHER
-
101542765-329 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
115137418 SHAFT, CROSSSHAFT, CROSS
-
127519238 SCREWSCREW
-
137556491 WASHER, DOMEDWASHER, DOMED
-
145414031 STRAP, LIMITERSTRAP, LIMITER
-
157547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
165438921 BUSHINGBUSHING
-
175138059 SHAFT, HOLLOWSHAFT, HOLLOW
-
187518953 SCREWSCREW
