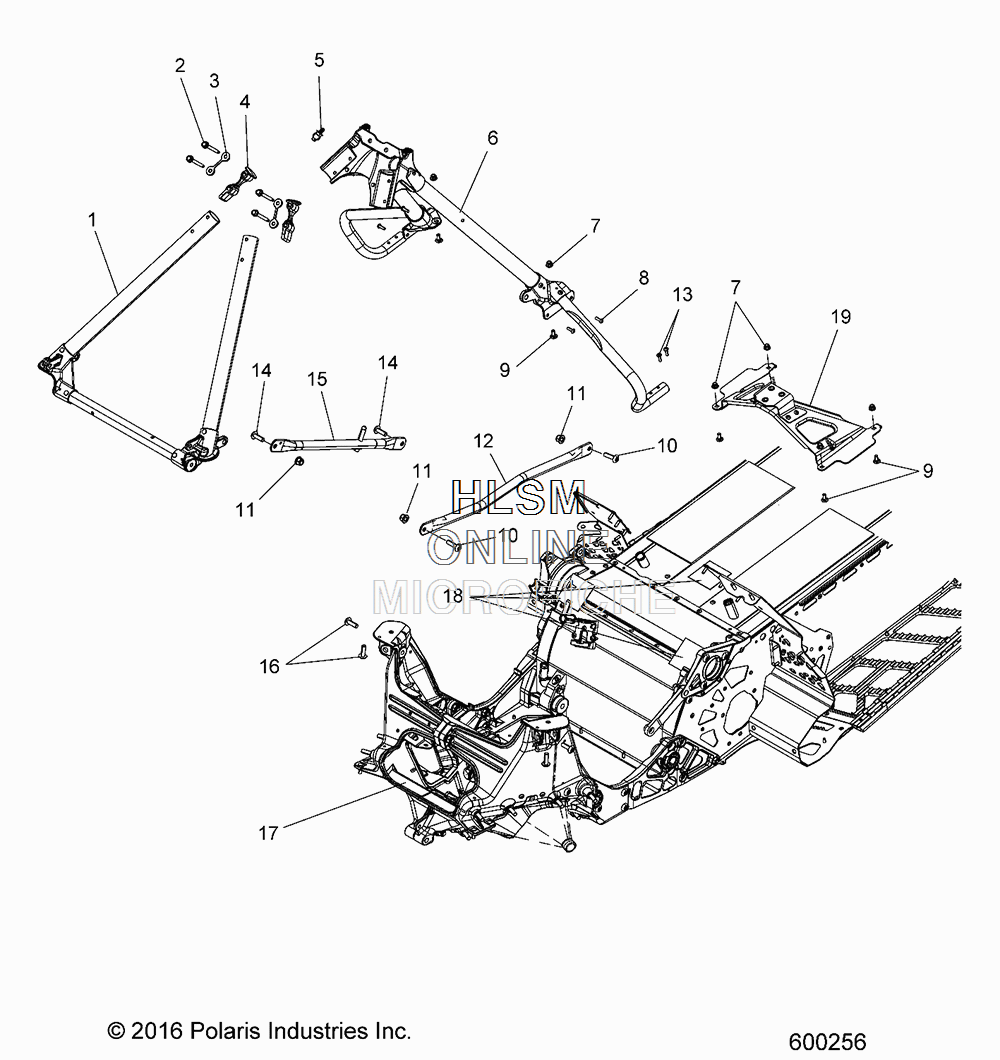

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 SWITCHBACK ASSAULT 144 ES (BLACK PEARL) [S17EEC8PSL] - 2017 года выпуска
-
№АртикулНазвание
-
11021006 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
27519967 SCREWSCREW
-
35633083 SHIM-TUBE, CASTSHIM-TUBE, CAST
-
45633122 SPACER, TUBE CASTSPACER, TUBE CAST
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
61021007 ASM., TUBE FRAME, REARASM., TUBE FRAME, REAR
-
77547453 NUT, HXFL NYLNUT, HXFL NYL
-
87661130 RIVETRIVET
-
97520514 SCREW-SPCLSCREW-SPCL
-
107518953 SCREW-TR/TXSCREW-TR/TX
-
117547332 NUT-FLG NYLNUT-FLG NYL
-
125337391-329 TUBE-BRACE, LEFT HAND, (BLACK)TUBE-BRACE, LEFT HAND, (BLACK)
-
137661637 RIVETRIVET
-
147518906 SCREW-TXTRSCREW-TXTR
-
151019861-067 TUBE BRACE RIGHT HAND (BLACK)TUBE BRACE RIGHT HAND (BLACK)
-
167519070 SCREW-TXTHSCREW-TXTH
-
171021261-647 ASM., TUNNEL, CONV. 144 INCH, (ORANGE BURST) (SNOW CHECK)(INCL. TUNNEL COOLER)ASM., TUNNEL, CONV. 144 INCH, (ORANGE BURST) (SNOW CHECK)(INCL. TUNNEL COOLER)
-
171021261-309 ASM., TUNNEL, CONV. 144 INCH, (NATURAL) (INCL. TUNNEL COOLER)ASM., TUNNEL, CONV. 144 INCH, (NATURAL) (INCL. TUNNEL COOLER)
-
171021258-309 ASM., CHASSIS, 144 INCH CONV, (NATURAL) (INCL. BULKHEAD)ASM., CHASSIS, 144 INCH CONV, (NATURAL) (INCL. BULKHEAD)
-
171021261-485 ASM., TUNNEL, CONV. 144 INCH, (MIDNIGHT BLUE) (SNOW CHECK)(INCL. TUNNEL COOLER)ASM., TUNNEL, CONV. 144 INCH, (MIDNIGHT BLUE) (SNOW CHECK)(INCL. TUNNEL COOLER)
-
171021258-485 ASM., CHASSIS, 144 INCH CONV, (MIDNIGHT BLUE) (SNOW CHECK)(INCL. BULKHEAD)ASM., CHASSIS, 144 INCH CONV, (MIDNIGHT BLUE) (SNOW CHECK)(INCL. BULKHEAD)
-
171021258-647 ASM., CHASSIS, 144 INCH CONV, (ORANGE BURST) (SNOW CHECK)(INCL. BULKHEAD)ASM., CHASSIS, 144 INCH CONV, (ORANGE BURST) (SNOW CHECK)(INCL. BULKHEAD)
-
185814187 PAD, 2.5"X2.5"PAD, 2.5"X2.5"
-
191021376-458 BRACKET, FUEL TANK, (MBLACK)BRACKET, FUEL TANK, (MBLACK)
