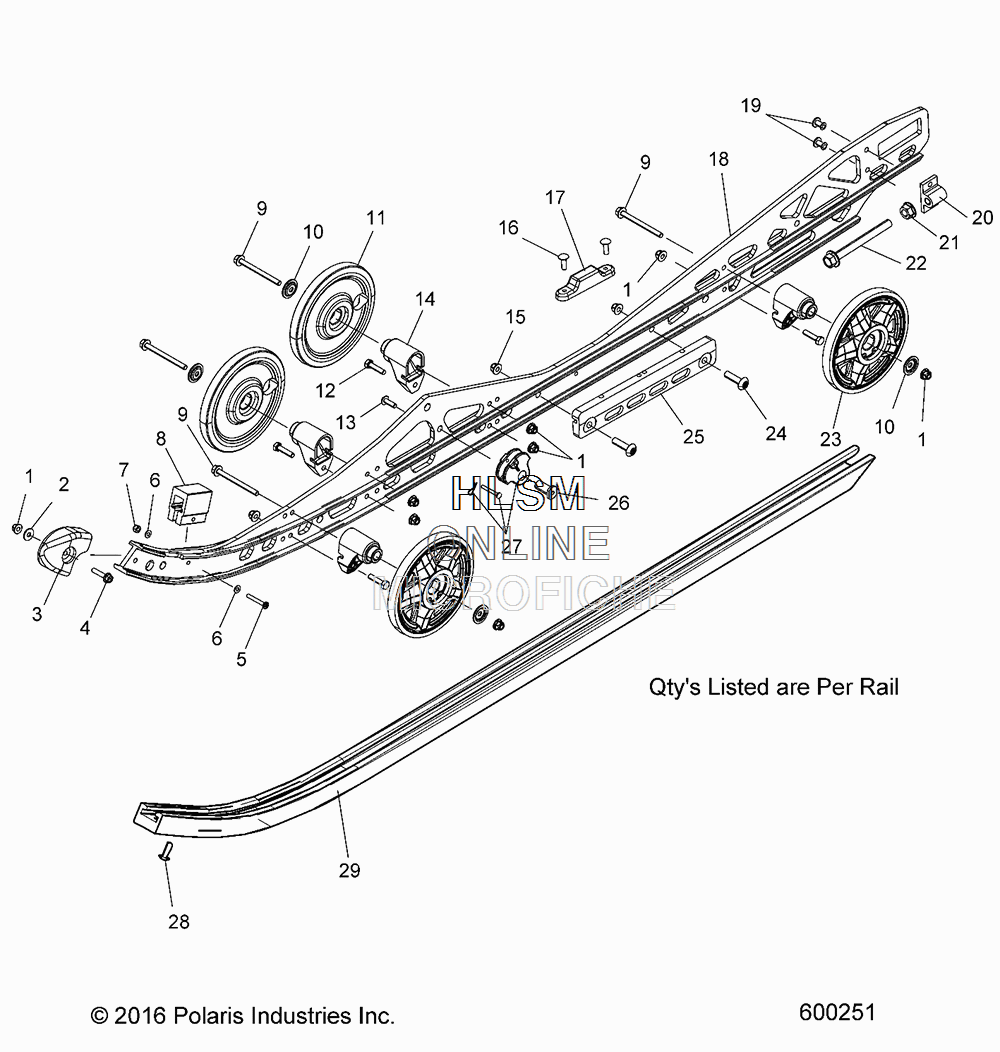

SUSPENSION - RAIL MOUNTING для Polaris 800 SWITCHBACK ASSAULT 144 SNOWCHECK SELECT [S17EEC8PS] - 2017 года выпуска
-
№АртикулНазвание
-
17547339 NUT, NYLOKNUT, NYLOK
-
27556064 WASHER, FLATWASHER, FLAT
-
35438374 CAP, RAIL TIPCAP, RAIL TIP
-
47518993 SCREWSCREW
-
57510504 SCREWSCREW
-
67555783 WASHER, FLATWASHER, FLAT
-
77541925 NUT, NYLOKNUT, NYLOK
-
85521499 BUMPER, JOUNCE, FRONTBUMPER, JOUNCE, FRONT
-
97519908 SCREW, HXFLGSCREW, HXFLG
-
107556799 WASHER, OFFSETWASHER, OFFSET
-
113514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
111590457 ASM., WHEEL, PLAINASM., WHEEL, PLAIN
-
117710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
127517510 SCREW, HHSCREW, HH
-
137518906 SCREW, M8X25 TXTRSCREW, M8X25 TXTR
-
145632808 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
157547332 NUT, FLG NYLNUT, FLG NYL
-
167515199 SCREWSCREW
-
175432166 BUMPERBUMPER
-
181543559-293 ASM., RAIL, 144, LEFT HAND, (INDY RED) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, LEFT HAND, (INDY RED) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
181543560-689 ASM., RAIL, 144, RIGHT HAND, (VELOCITY BLUE) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, RIGHT HAND, (VELOCITY BLUE) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
181543560-067 ASM., RAIL, 144, RIGHT HAND, (BLACK) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, RIGHT HAND, (BLACK) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
181543559-647 ASM., RAIL, 144, LEFT HAND, (ORANGE BURST) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, LEFT HAND, (ORANGE BURST) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
181543560-647 ASM., RAIL, 144, RIGHT HAND, (ORANGE BURST) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, RIGHT HAND, (ORANGE BURST) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
181543559-309 ASM., RAIL, 144, LEFT HAND, (NATURAL) (INCL. 15,19,20,24,25)ASM., RAIL, 144, LEFT HAND, (NATURAL) (INCL. 15,19,20,24,25)
-
181543560-293 ASM., RAIL, 144, RIGHT HAND, (INDY RED) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, RIGHT HAND, (INDY RED) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
181543559-689 ASM., RAIL, 144, LEFT HAND, (VELOCITY BLUE) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, LEFT HAND, (VELOCITY BLUE) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
181543560-309 ASM., RAIL, 144, RIGHT HAND, (NATURAL) (INCL. 15,19,20,24,25)ASM., RAIL, 144, RIGHT HAND, (NATURAL) (INCL. 15,19,20,24,25)
-
181543559-067 ASM., RAIL, 144, LEFT HAND, (BLACK) (SNOW CHECK) (INCL. 15,19,20,24,25)ASM., RAIL, 144, LEFT HAND, (BLACK) (SNOW CHECK) (INCL. 15,19,20,24,25)
-
197621501 RIVETRIVET
-
205136570 BLOCK, IDLER BOLT ADJUSTABLEBLOCK, IDLER BOLT ADJUSTABLE
-
217547017 NUT, HXFLNUT, HXFL
-
227519167 SCREW, HXFLSCREW, HXFL
-
231590511 ASM., WHEEL, LWTASM., WHEEL, LWT
-
233514384 BEARINGBEARING
-
237710444 RING, RETAININGRING, RETAINING
-
247518953 SCREW, M8X30 TR/TXSCREW, M8X30 TR/TX
-
255136588 PLATE, RAIL REINFORCEPLATE, RAIL REINFORCE
-
265136687 SHAFT, SPRING ROLLERSHAFT, SPRING ROLLER
-
277661123 PIN, CLEVISPIN, CLEVIS
-
275434334 GUIDE, SPRING, SQUAREGUIDE, SPRING, SQUARE
-
277661644 PIN, HITCHPIN, HITCH
-
287518976 SCREWSCREW
-
295521633-070 SLIDER, SVC, (BLACK) (SNOW CHECK)(HI-FAX)SLIDER, SVC, (BLACK) (SNOW CHECK)(HI-FAX)
-
295521633-309 SLIDER, SVC, (NATURAL) (HI-FAX)SLIDER, SVC, (NATURAL) (HI-FAX)
