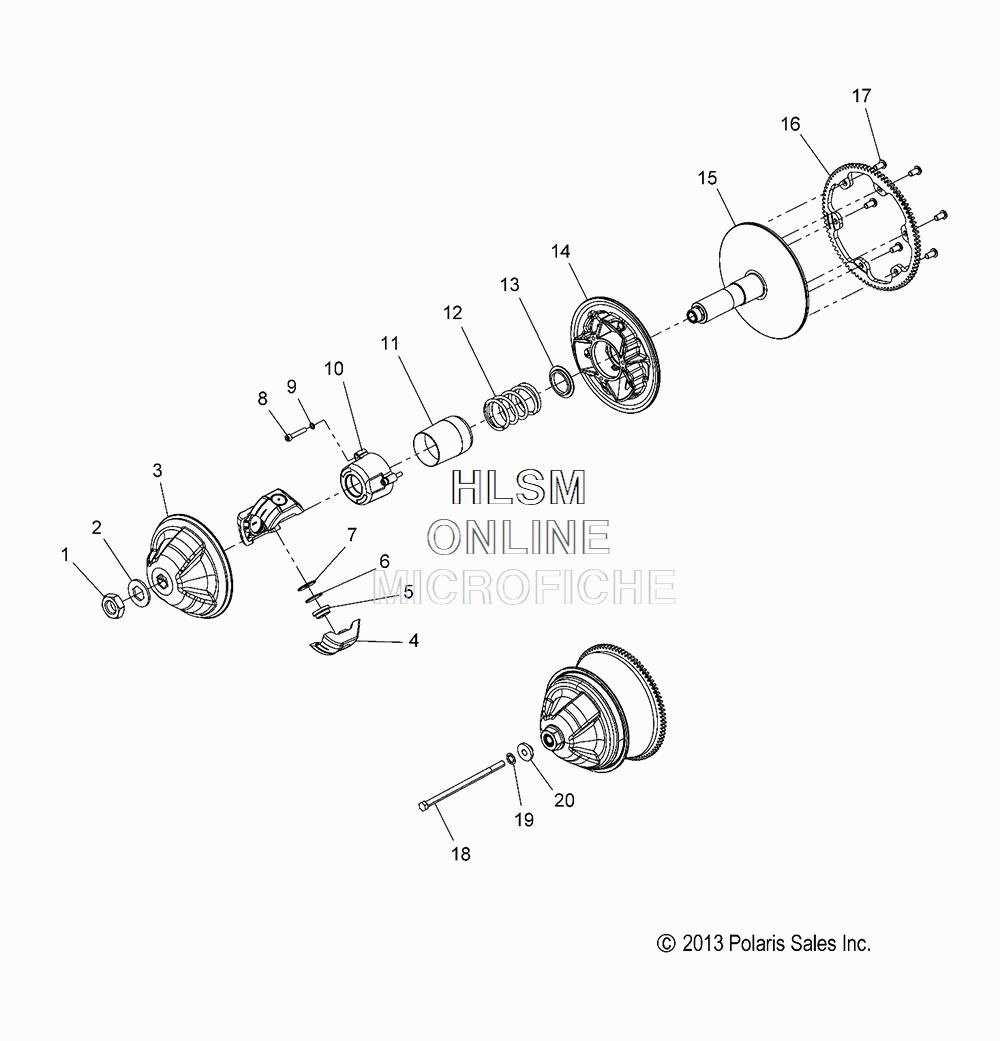

CLUTCH - PRIMARY для Polaris 550 VOYAGEUR 155 (S18CFF5BSL) - 2018 года выпуска
-
№АртикулНазвание
-
-1323165 ASSY., DRIVE CLUTCH, CV TECH 50 ES (INCL. 1-17)ASSY., DRIVE CLUTCH, CV TECH 50 ES (INCL. 1-17)
-
12205341 NUT, CVTNUT, CVT
-
22205340 WASHER, CVTWASHER, CVT
-
32205311 COVER, CVTCOVER, CVT
-
42205321 BLOCK, CVTBLOCK, CVT
-
52205308 SLUG, 21 GRAMSSLUG, 21 GRAMS
-
62205309 SHIM, 3.2 GRAMSSHIM, 3.2 GRAMS
-
72205310 CAP, THREADEDCAP, THREADED
-
82205470 SCREWSCREW
-
92205338 WASHER, LOCKWASHER, LOCK
-
102205306 COVER, SPRINGCOVER, SPRING
-
112205305 GUIDE, SPRINGGUIDE, SPRING
-
127044161 SPRING, 127LB/IN.SPRING, 127LB/IN.
-
132205304 SEAT, SPRINGSEAT, SPRING
-
142205303 SHEAVE, SLIDINGSHEAVE, SLIDING
-
152205300 SHEAVE, FIXEDSHEAVE, FIXED
-
162205312 RING GEARRING GEAR
-
172205342 SCREWSCREW
-
187519287 SCREWSCREW
-
197555883 WASHERWASHER
-
205138316 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
