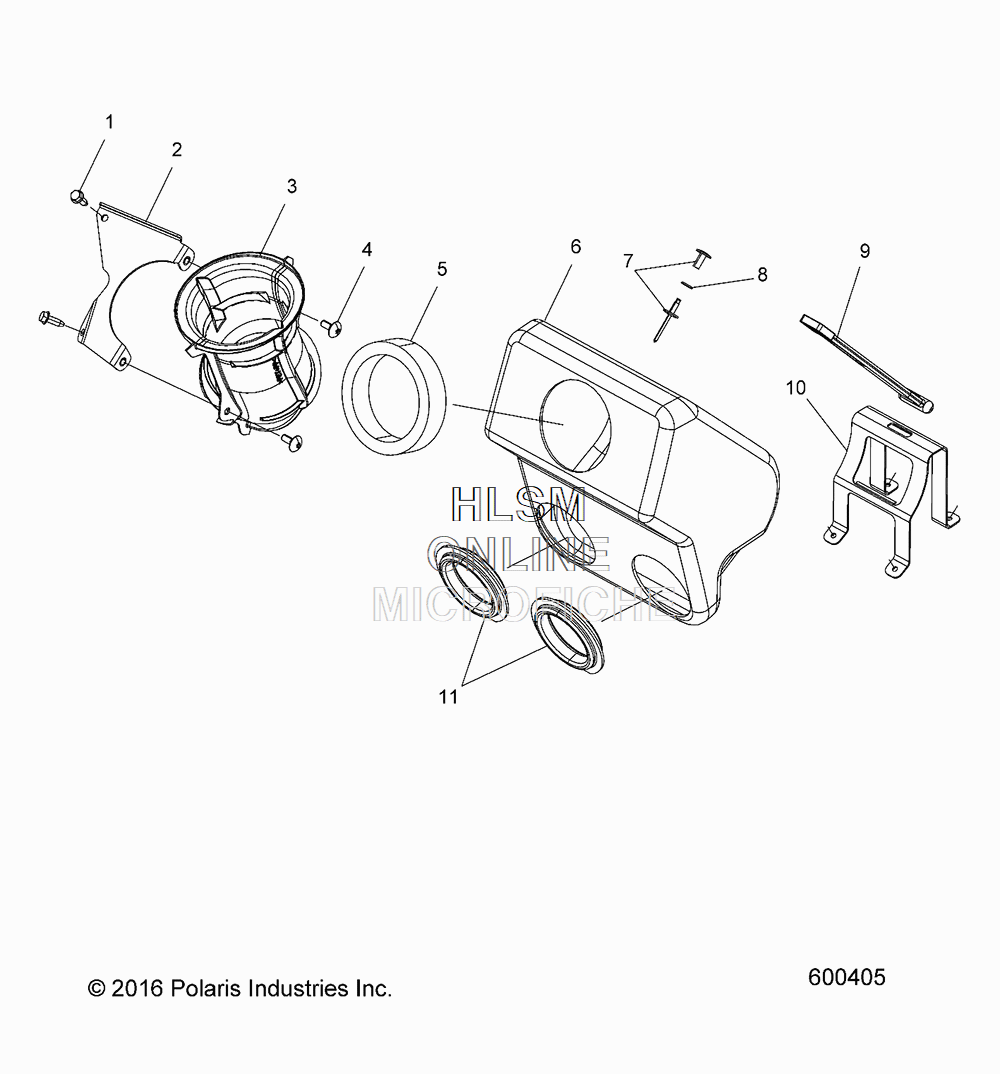

AIR INTAKE SYSTEM для Polaris 600 RACER INTL (S18MBX6JEA) - 2018 года выпуска
-
№АртикулНазвание
-
17512253 SCREWSCREW
-
21022371 ASM., BRACKET, TUBE INTAKEASM., BRACKET, TUBE INTAKE
-
35454547 TUBE, INTAKETUBE, INTAKE
-
47518905 SCREWSCREW
-
55814686 FOAM, TUBE/AIRBOXFOAM, TUBE/AIRBOX
-
61204651 ASM., AIRBOX SILENCER (INCL. 7, 8)ASM., AIRBOX SILENCER (INCL. 7, 8)
-
71015421 ASM., RIVET/RETAINERASM., RIVET/RETAINER
-
87555904 BURR-RIVETBURR-RIVET
-
95436090 STRAP, RUBBERSTRAP, RUBBER
-
115413314 BOOT, CARBURETOR, 40MM, 600 RACEBOOT, CARBURETOR, 40MM, 600 RACE
