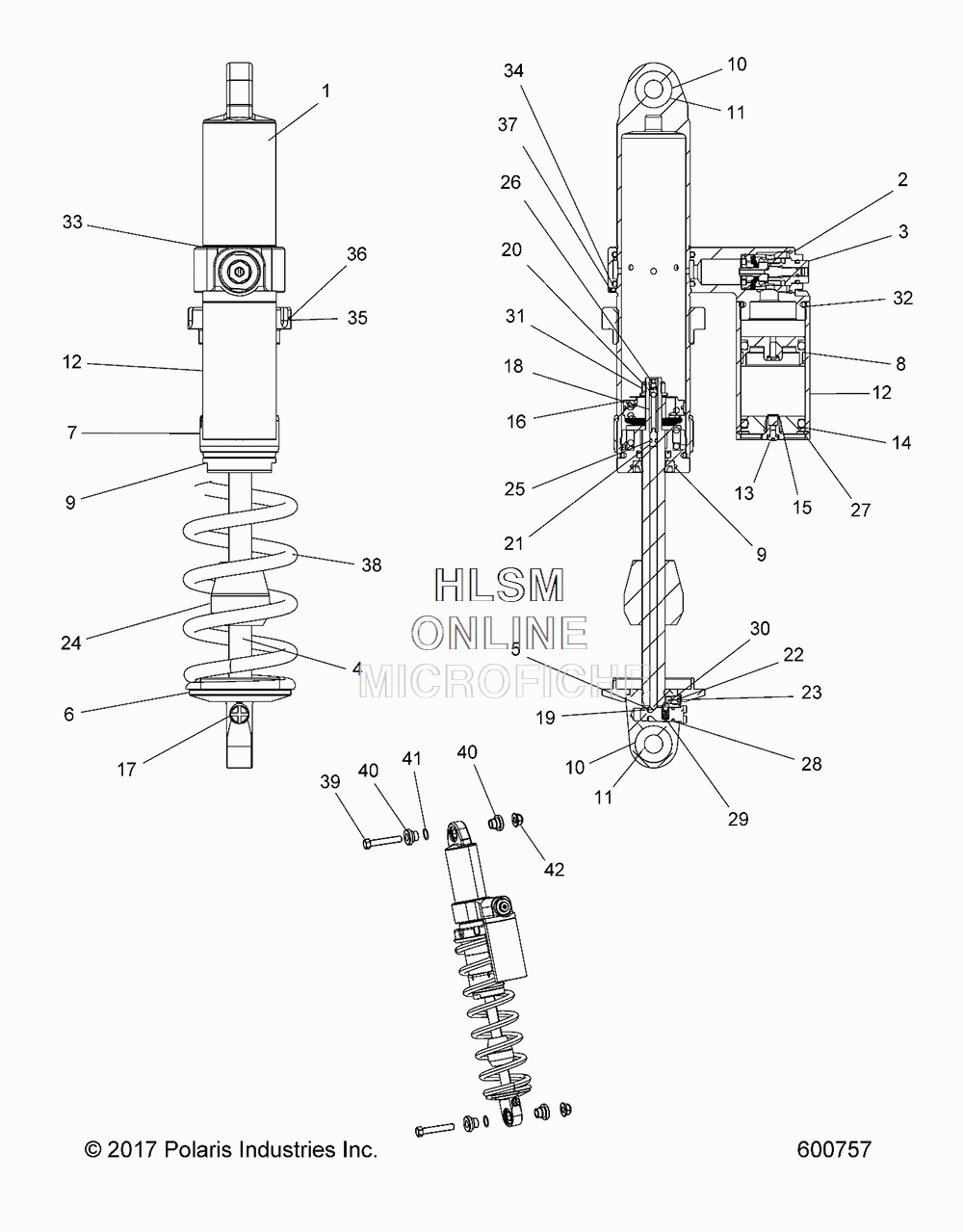

SUSPENSION - IFS SHOCK для Polaris 600 RACER (S18MBX6JSA) - 2018 года выпуска
-
№АртикулНазвание
-
-7044928 SHOCK, IFS, WALKER EVANS, VELOCITY RACE (INCL. 1-37)SHOCK, IFS, WALKER EVANS, VELOCITY RACE (INCL. 1-37)
-
11800922 BODY-2 IN MID MNT RES., CLRBODY-2 IN MID MNT RES., CLR
-
21800923 BRIDGE, 2 IN, ANO BLUEBRIDGE, 2 IN, ANO BLUE
-
31800710 ASM-ADJ, H/L SPEEDASM-ADJ, H/L SPEED
-
41800695 SHAFT-REBOUNDSHAFT-REBOUND
-
51800924 SHAFT LOOP, REBOUND LOCKINGSHAFT LOOP, REBOUND LOCKING
-
61800925 RETAINER-SPRING CLIP, ANO BLUERETAINER-SPRING CLIP, ANO BLUE
-
71800780 SPRING WEAR BANDSPRING WEAR BAND
-
81800739 PISTON-FLOATING, 1.75 W/BLEEDPISTON-FLOATING, 1.75 W/BLEED
-
91800926 ASM-SEAL HEAD, NEG SPRING, BLUEASM-SEAL HEAD, NEG SPRING, BLUE
-
101800927 BEARING-SPHERICAL, 1 IN X.50 IDBEARING-SPHERICAL, 1 IN X.50 ID
-
111800929 SNAP RING, 1"IDSNAP RING, 1"ID
-
121800310 BODY-RESERVOIR, 3.75LBODY-RESERVOIR, 3.75L
-
131800805 ASM-CHARGE PORTASM-CHARGE PORT
-
141800930 O-RING 2-324O-RING 2-324
-
151800931 END CAP, RESERVOIR, 2 IN BLUEEND CAP, RESERVOIR, 2 IN BLUE
-
161800533 PISTON, 2 IN, 6PORT, .052 BLEEDPISTON, 2 IN, 6PORT, .052 BLEED
-
171800697 KNOB-REB. ADJUSTERKNOB-REB. ADJUSTER
-
181800528 HOUSING-CHECK BALLHOUSING-CHECK BALL
-
191800698 ROD-REBOUND ADJ.ROD-REBOUND ADJ.
-
205134999 CHECK BALL, .1405CHECK BALL, .1405
-
211800526 REBOUND PISTONREBOUND PISTON
-
221800706 SET SCREW-1/4X1/4 SSSET SCREW-1/4X1/4 SS
-
231800707 BRASS BALL, 3/16BRASS BALL, 3/16
-
241800617 BUMPSTOP, IFS RACERBUMPSTOP, IFS RACER
-
251800525 O-RING 2-004O-RING 2-004
-
261800804 SCREW-CHECK BALLSCREW-CHECK BALL
-
271800932 SNAP RING-1.75 IDSNAP RING-1.75 ID
-
281800094 O-RING 2-010O-RING 2-010
-
291800933 SPRING-DETENTSPRING-DETENT
-
301800934 BALL-DETENT 3/16 INBALL-DETENT 3/16 IN
-
311800807 NUT-NYLOCK THIN, 7/16NUT-NYLOCK THIN, 7/16
-
321800935 O-RING 2-222O-RING 2-222
-
331800862 RING-RETAININGRING-RETAINING
-
341800863 O-RING 2-226O-RING 2-226
-
351800936 SPRING NUT, 2"SPRING NUT, 2"
-
361800937 SCREW-SCHDCP #6X.75SCREW-SCHDCP #6X.75
-
371800938 SET SCREW #4X5/32SET SCREW #4X5/32
-
387045095-458 SPRING, COMP. .362X10.00 170#, 2 IN MATTE BLACK (OPTION)SPRING, COMP. .362X10.00 170#, 2 IN MATTE BLACK (OPTION)
-
387045096-458 SPRING, COMP. .331X10.00 125#, 2 IN MATTE BLACK (OPTION)SPRING, COMP. .331X10.00 125#, 2 IN MATTE BLACK (OPTION)
-
387044927-458 SPRING, COMP., .375X10.00, 190#, 2 IN MATTE BLACK (STOCK)SPRING, COMP., .375X10.00, 190#, 2 IN MATTE BLACK (STOCK)
-
397515415 SCREW-3/8X2.25 HXCPSCREW-3/8X2.25 HXCP
-
405134999 SPACER-IFSSPACER-IFS
-
415412290 O-RING .60 IDX.210O-RING .60 IDX.210
-
427547263 NUT-3/8-24 FLG LOCNUT-3/8-24 FLG LOC
