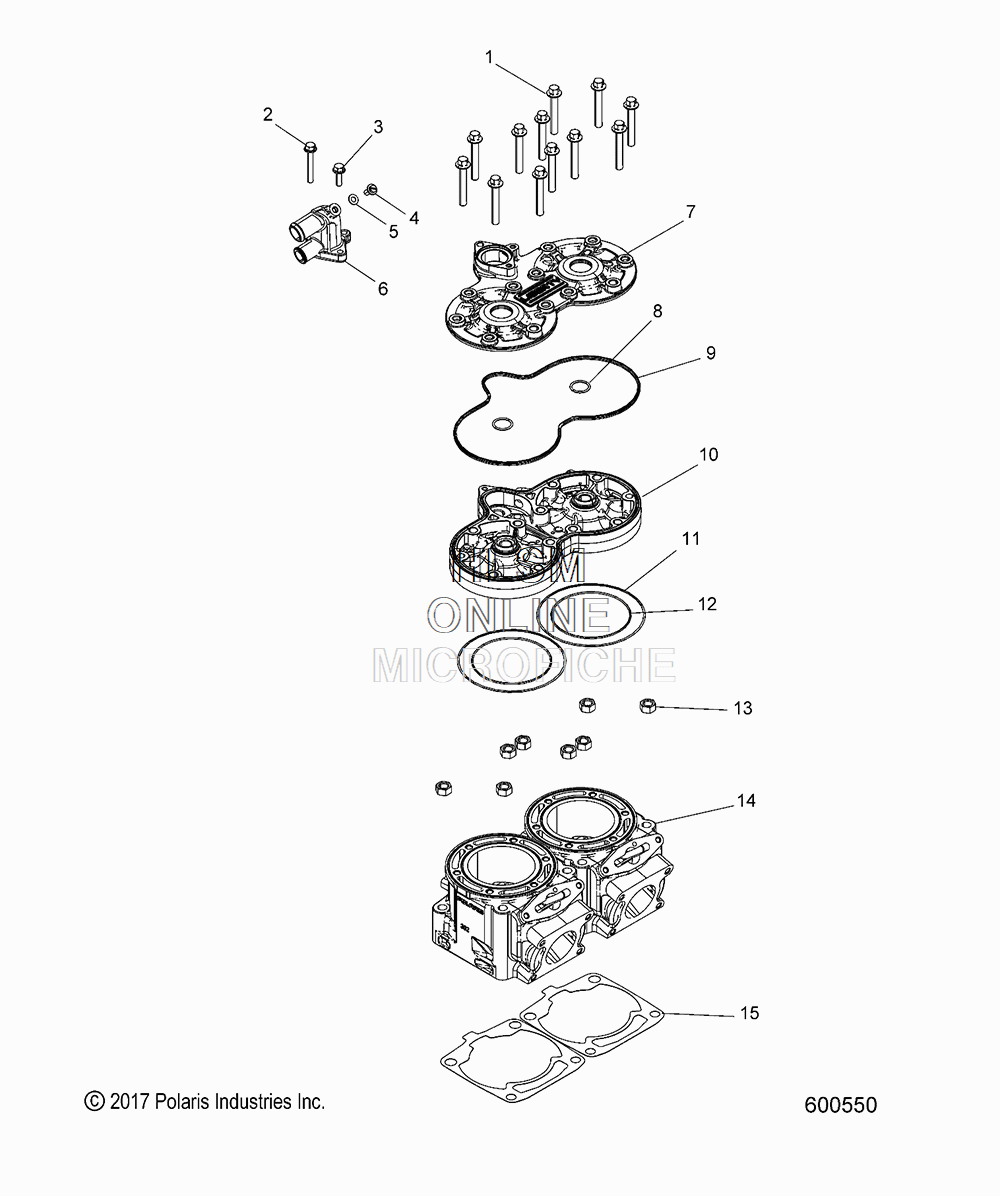

CYLINDER ASSEMBLY для Polaris 600 RMK 144 (S18EEG6PSA) - 2018 года выпуска
-
№АртикулНазвание
-
17517533 SCREWSCREW
-
27516825 SCREWSCREW
-
37516822 SCREWSCREW
-
47520470 SCREW, BLEEDSCREW, BLEED
-
57555998 WASHER, FLATWASHER, FLAT
-
65139019 COVER, THERMOSTATCOVER, THERMOSTAT
-
75138804 COVER, HEAD, ASCOVER, HEAD, AS
-
85411411 O-RINGO-RING
-
95414803 SEAL, GLAND, HEADSEAL, GLAND, HEAD
-
103022590 HEAD, CYLINDER, ASHEAD, CYLINDER, AS
-
115415031 O-RINGO-RING
-
125410932 O-RINGO-RING
-
137547013 NUTNUT
-
143022663 CYLINDERCYLINDER
-
155813312 GASKET, CYLINDER BASE, METALGASKET, CYLINDER BASE, METAL
