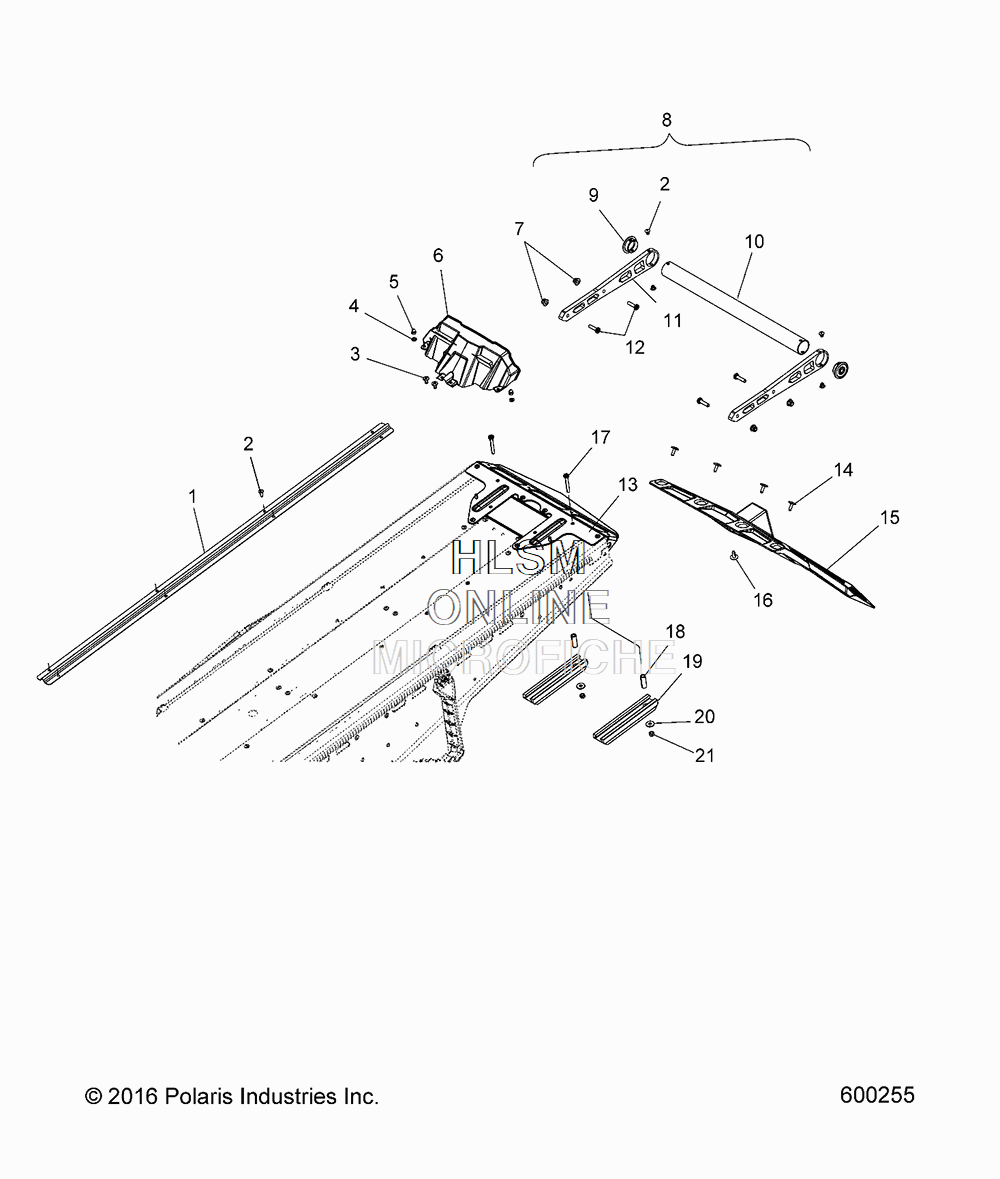

BUMPER - REAR W/SNOWFLAP AND TAILLIGHT для Polaris 600 RMK ES 144 (S18EEG6PSL) - 2018 года выпуска
-
№АртикулНазвание
-
15260985 COVER, TAILLIGHT HARNESS, 144COVER, TAILLIGHT HARNESS, 144
-
27662251 RIVETRIVET
-
37621433 RIVETRIVET
-
47556071 WASHERWASHER
-
57547286 NUT-ACORNNUT-ACORN
-
65452369-070 COVER, TAILLIGHT, BLACKCOVER, TAILLIGHT, BLACK
-
77547453 NUTNUT
-
81017851-1241 ASM., BUMPER, REAR, AL, MATTE BLACK/NATURAL (INCL. 2, 7, 8, 10, 11)ASM., BUMPER, REAR, AL, MATTE BLACK/NATURAL (INCL. 2, 7, 8, 10, 11)
-
97519248 SCREWSCREW
-
97081210 PLUG, TUBEPLUG, TUBE
-
105339046-458 TUBE, BUMPER, ALUM., MATTE BLACKTUBE, BUMPER, ALUM., MATTE BLACK
-
115137501 MOUNT, BUMPERMOUNT, BUMPER
-
127519993 SCREWSCREW
-
131021309 ASM., CLOSEOFF, REARASM., CLOSEOFF, REAR
-
147621467 RIVETRIVET
-
155438788-070 FLAP, SNOW W/HOLE, BLACKFLAP, SNOW W/HOLE, BLACK
-
167519092 SCREWSCREW
-
177520466 SCREW-M6SCREW-M6
-
185140603 SPACER-TUNNEL PROTECTORSPACER-TUNNEL PROTECTOR
-
195522135-309 PROTECTOR-TUNNELPROTECTOR-TUNNEL
-
207556565 WASHERWASHER
-
217546703 NUT-6MMNUT-6MM
