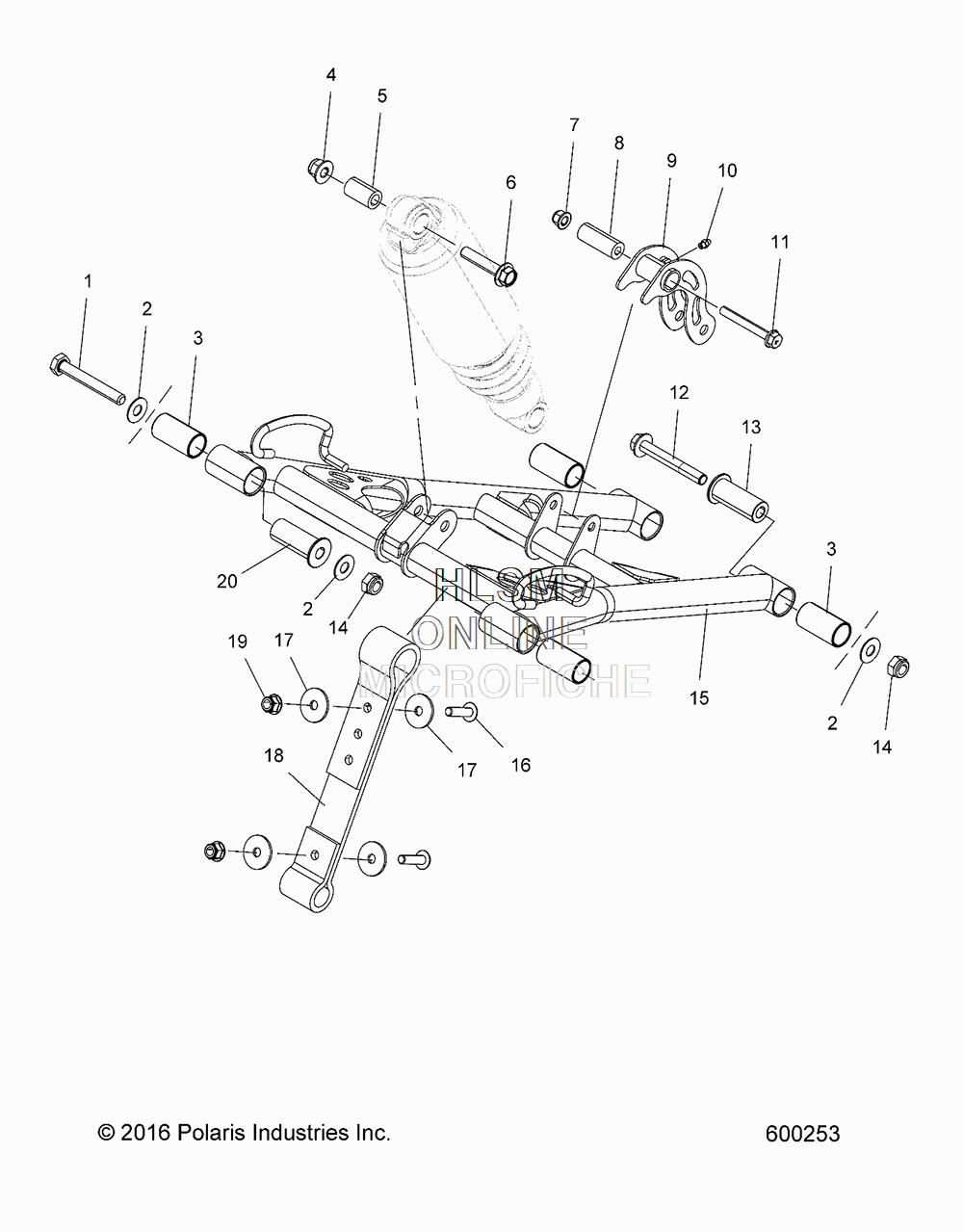

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 600 SWITCHBACK ASSAULT 144 (S18EEC6P) - 2018 года выпуска
-
№АртикулНазвание
-
17519015 SCREW, M10X75 HCSSCREW, M10X75 HCS
-
27556545 WASHERWASHER
-
35438875 BUSHING, PIVOTBUSHING, PIVOT
-
47547423 NUTNUT
-
55137360 BUSHINGBUSHING
-
67518971 SCREW, M10X50SCREW, M10X50
-
77547332 NUTNUT
-
85140030 BUSHING, RTS PIVOTBUSHING, RTS PIVOT
-
91543515-329 PIVOT, SHOCK, E-COATPIVOT, SHOCK, E-COAT
-
107080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117519212 SCREW, M8X65SCREW, M8X65
-
127519286 SCREW, M10X75 HXFLSCREW, M10X75 HXFL
-
135137367 SHAFT, PIVOTSHAFT, PIVOT
-
147547793 NUT, HEXNUT, HEX
-
151543509-329 ASM., FRONT TORQUE ARM (INCL. 3)ASM., FRONT TORQUE ARM (INCL. 3)
-
167518953 SCREW, M8X30 TR/TXSCREW, M8X30 TR/TX
-
177556175 WASHERWASHER
-
185414733 STRAP, LIMITERSTRAP, LIMITER
-
197547332 NUT, NYLOCNUT, NYLOC
-
205138648 SHAFT, PIVOTSHAFT, PIVOT
