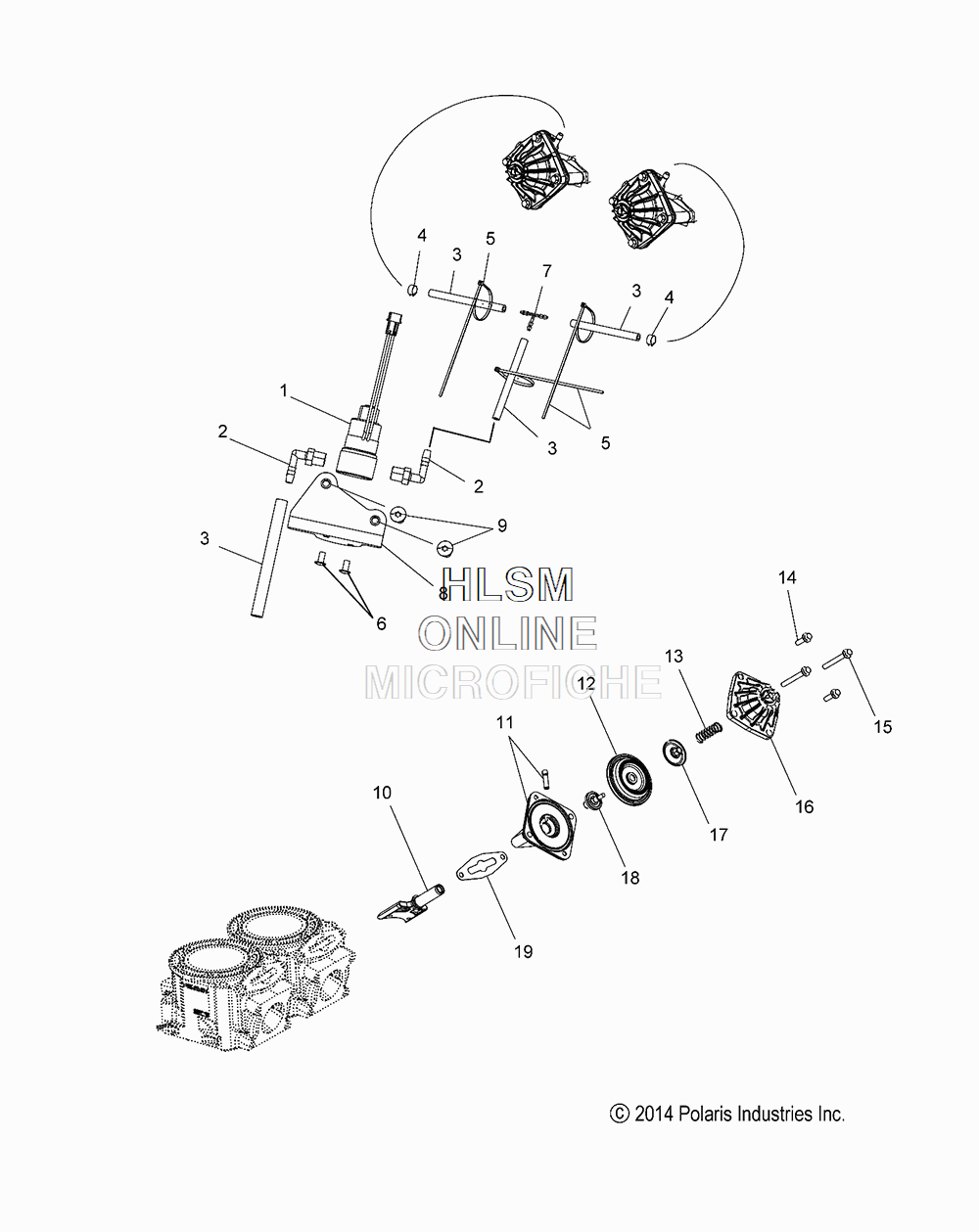

EXHAUST VALVES W/SOLENOID для Polaris 600 SWITCHBACK XCR INTL (S18DDL6PEM) - 2018 года выпуска
-
№АртикулНазвание
-
14014812 SOLENOID, EV, NC,1/4 DIA.SOLENOID, EV, NC,1/4 DIA.
-
27050000 FITTING-1/4 IN NPT TO 1/4 IN BARB90°FITTING-1/4 IN NPT TO 1/4 IN BARB90°
-
38450040-600 LINE, FUELLINE, FUEL
-
47080003 CLAMP, HOSECLAMP, HOSE
-
57080138 CABLE TIECABLE TIE
-
67518656 BOLTBOLT
-
77052075 FITTING, TEEFITTING, TEE
-
81020241 ASM., BRKT., SOLENOIDASM., BRKT., SOLENOID
-
97518321 SCREWSCREW
-
102206017 K-VALVE, GUILLOTINE, 600 INT. THD. (INCL. 12,13,17-19)K-VALVE, GUILLOTINE, 600 INT. THD. (INCL. 12,13,17-19)
-
117052145 FITTINGFITTING
-
111204445 BASE, EXHAUST VALVE W/FITTINGBASE, EXHAUST VALVE W/FITTING
-
115020958 BUSHINGBUSHING
-
125414495 BELLOWS, EXHAUST, RIB, NMXBELLOWS, EXHAUST, RIB, NMX
-
137041704-04 SPRING, PURPLESPRING, PURPLE
-
147516820 SCREWSCREW
-
157517932 SCREWSCREW
-
161202640 ASM., HOUSING W/BUSHINGASM., HOUSING W/BUSHING
-
175137602 CAP/NUT, BELLOWSCAP/NUT, BELLOWS
-
185139881 STUD/WASHER, EXHAUST VALVESTUD/WASHER, EXHAUST VALVE
-
195813934 GASKET, BASE TO CYLINDER EXHAUST VALVEGASKET, BASE TO CYLINDER EXHAUST VALVE
