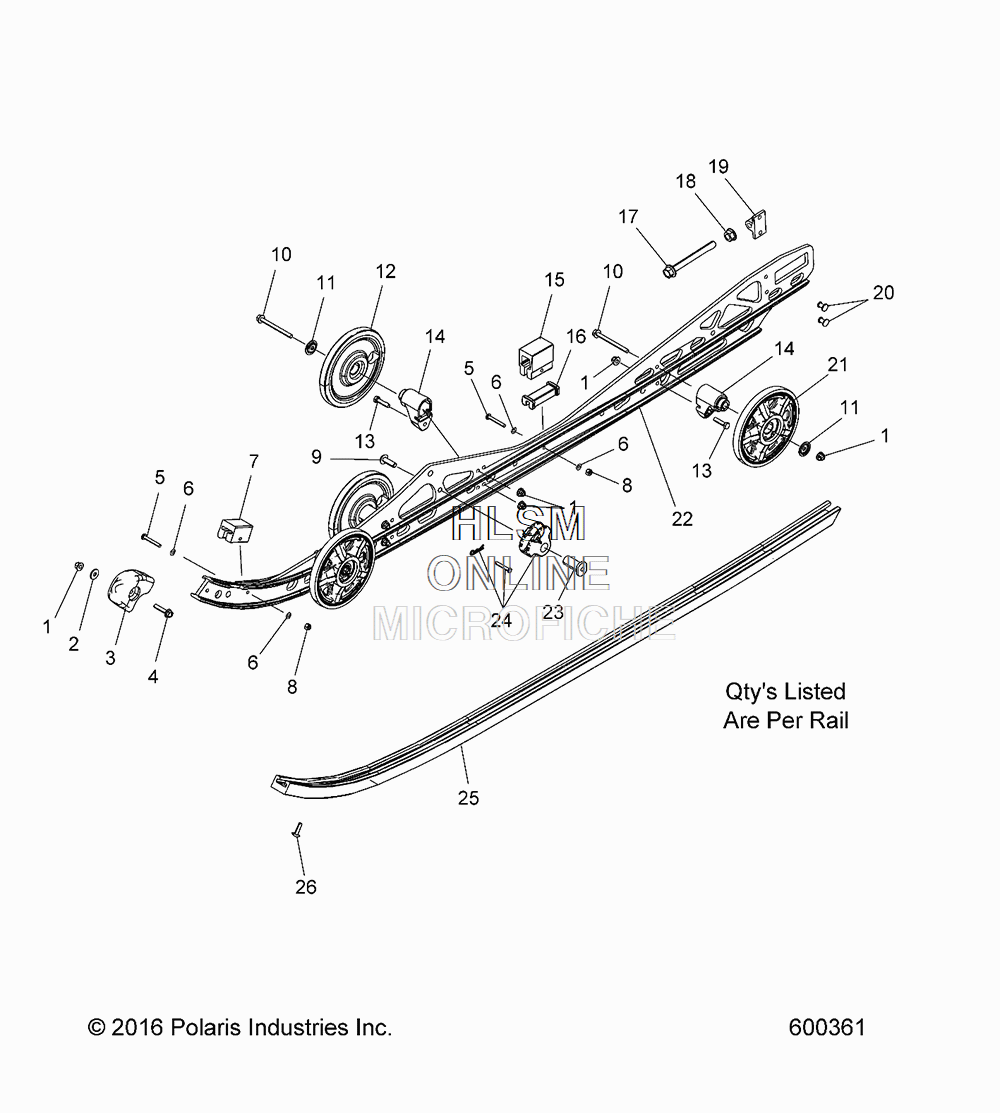

SUSPENSION - RAIL MOUNTING для Polaris 600 VOYAGEUR 144 ES INTL (S18EEF6PEL) - 2018 года выпуска
-
№АртикулНазвание
-
17547339 NUT, NYLOKNUT, NYLOK
-
27556064 WASHER, FLATWASHER, FLAT
-
35438374 CAP, RAIL TIPCAP, RAIL TIP
-
47518993 SCREWSCREW
-
57510504 SCREWSCREW
-
67555783 WASHER, FLATWASHER, FLAT
-
75521499 BUMPER, JOUNCE, FRONTBUMPER, JOUNCE, FRONT
-
87541925 NUT, NYLOKNUT, NYLOK
-
97518906 SCREW, TXTRSCREW, TXTR
-
107519908 SCREW, HXFLGSCREW, HXFLG
-
117556799 WASHER, OFFSETWASHER, OFFSET
-
123514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
121590457 ASM., WHEEL, PLAINASM., WHEEL, PLAIN
-
127710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
137517510 SCREW, HHSCREW, HH
-
145632808 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
155521498 BUMPERBUMPER
-
165432946 LINER-BUMPERLINER-BUMPER
-
177519167 SCREW, HXFLSCREW, HXFL
-
187547017 NUT, HXFLNUT, HXFL
-
195136570 BLOCK, IDLER BOLT ADJUSTABLEBLOCK, IDLER BOLT ADJUSTABLE
-
207621501 RIVETRIVET
-
211590511 ASM., WHEEL, LWTASM., WHEEL, LWT
-
213514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
217710444 RING, RETAININGRING, RETAINING
-
221543597-309 ASM., RAIL, 144, LEFT HAND, NATURAL (INCL. 19, 20)ASM., RAIL, 144, LEFT HAND, NATURAL (INCL. 19, 20)
-
221543598-309 ASM., RAIL, 144, RIGHT HAND, NATURAL (INCL. 19, 20)ASM., RAIL, 144, RIGHT HAND, NATURAL (INCL. 19, 20)
-
235136687 SHAFT, SPRING ROLLERSHAFT, SPRING ROLLER
-
247661644 PIN, HITCHPIN, HITCH
-
247661123 PIN, CLEVISPIN, CLEVIS
-
245434334 GUIDE, SPRING, SQUAREGUIDE, SPRING, SQUARE
-
255521633-070 SLIDER, SVC, BLACKSLIDER, SVC, BLACK
-
267518976 SCREWSCREW
