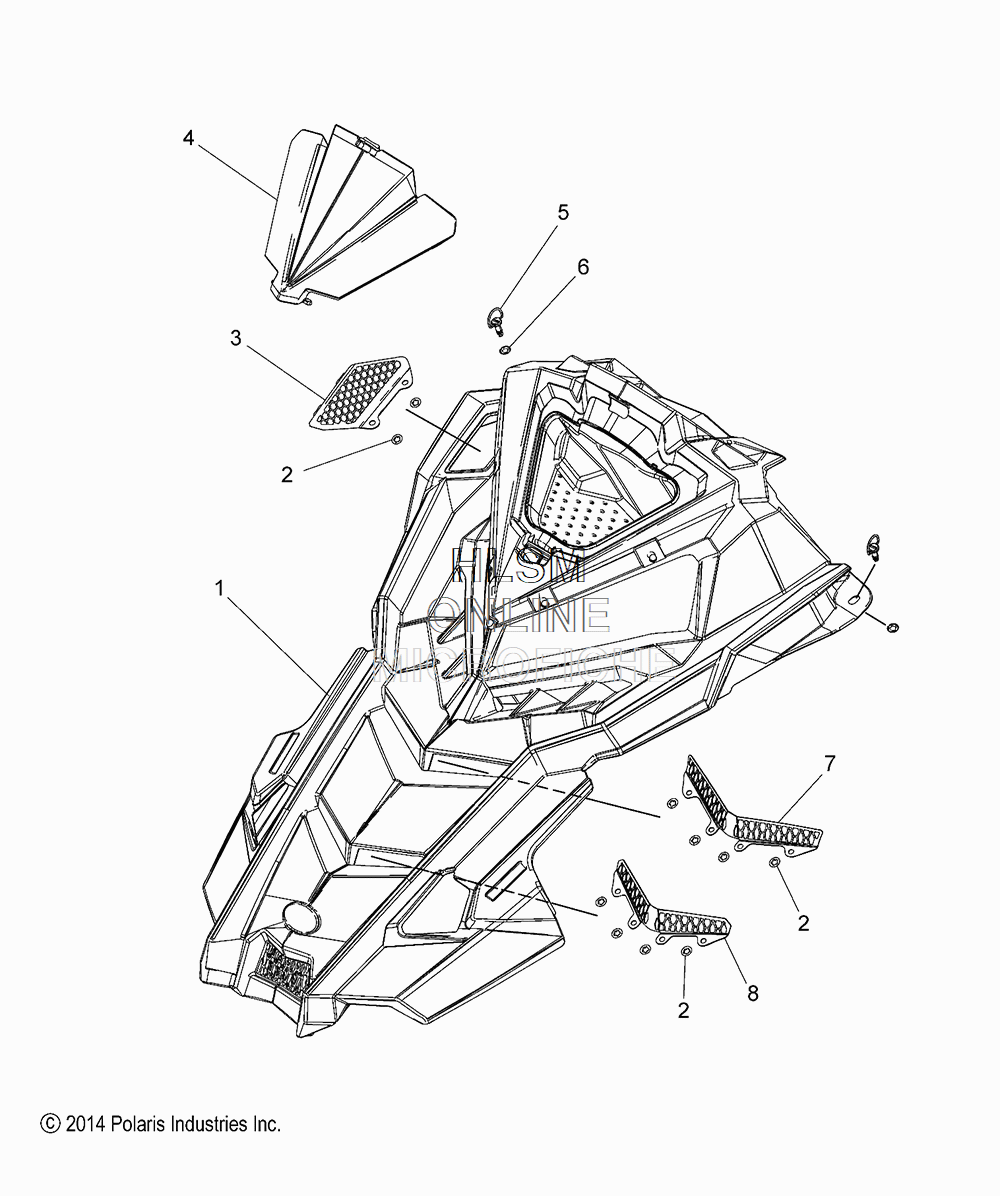

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 600 VOYAGEUR 144 ES (S18EEF6PSL) - 2018 года выпуска
-
№АртикулНазвание
-
15450455-070 HOOD, UV TPO BLACK (ALSO ORDER 2635485)HOOD, UV TPO BLACK (ALSO ORDER 2635485)
-
12635485 KIT, HOOD FOAM (SEE BODY, HOOD, FOAM/FIBER PAGE)KIT, HOOD FOAM (SEE BODY, HOOD, FOAM/FIBER PAGE)
-
27670154 RETAINER, BOLTRETAINER, BOLT
-
35258828 VENT, HOOD, UPPERVENT, HOOD, UPPER
-
45451206-070 LID, STORAGE, IN-MOLD BLACKLID, STORAGE, IN-MOLD BLACK
-
57662246 STUD, 1/4 TURN 6MMX16MMSTUD, 1/4 TURN 6MMX16MM
-
67710807 RETAINER, 1/4 TURN 6MM, STEELRETAINER, 1/4 TURN 6MM, STEEL
-
75257643 SCREEN, HOOD MIDDLESCREEN, HOOD MIDDLE
-
85257642 SCREEN, HOOD FRONTSCREEN, HOOD FRONT
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- • HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- MULTI-FUNCTION GAUGE
- OIL BOTTLE ASSEMBLY
- OIL PUMP ASSEMBLY
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT W/ TAILLIGHT
- SHOCK - FRONT
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- STEERING - UPPER W/ HANDLEBAR ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOLS- BELT HOLDER- TOOLS- AND OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
