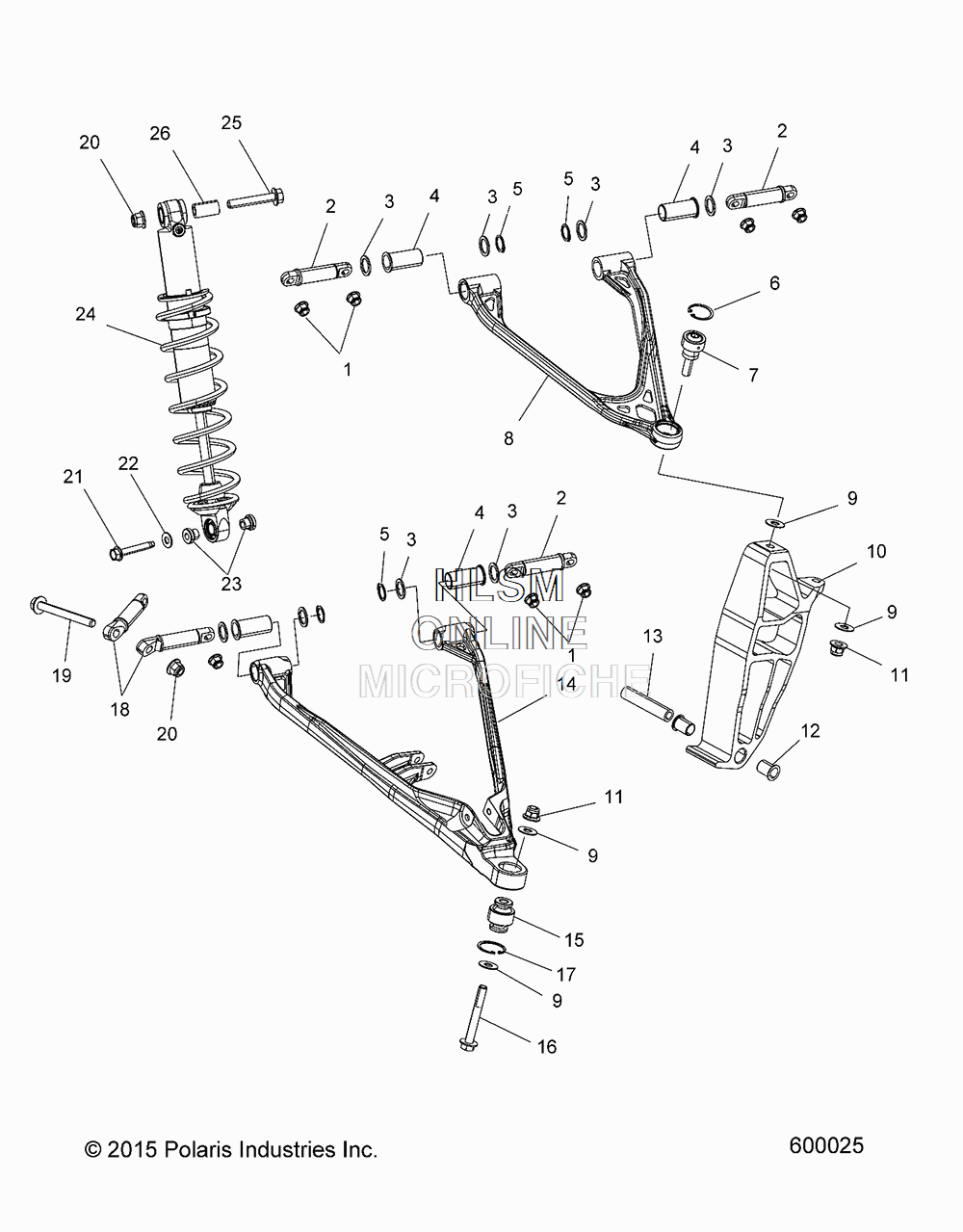

CONTROL ARMS W/SPINDLE для Polaris 800 AXYS PRO RMK 155 CHAIN DRIVE (S18EFM8P) - 2018 года выпуска
-
№АртикулНазвание
-
17547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
25140556 SHAFT, PIVOTSHAFT, PIVOT
-
37556959 WASHERWASHER
-
45451498 BUSHING, PIVOTBUSHING, PIVOT
-
57710786 RING, RETAINING, 18MMRING, RETAINING, 18MM
-
67710642 RING, RETAINING, INT. 1.125 INRING, RETAINING, INT. 1.125 IN
-
81824535-458 ASM-UPPER CONTROL ARM, LEFT HAND, BLACK (INCL. 2-7) (SNOW CHECK)ASM-UPPER CONTROL ARM, LEFT HAND, BLACK (INCL. 2-7) (SNOW CHECK)
-
81824536-458 ASM-UPPER CONTROL ARM, RIGHT HAND, BLACK (INCL. 2-7) (SNOW CHECK)ASM-UPPER CONTROL ARM, RIGHT HAND, BLACK (INCL. 2-7) (SNOW CHECK)
-
81824535-309 ASM-UPPER CONTROL ARM, LEFT HAND, NATURAL (INCL. 2-7)ASM-UPPER CONTROL ARM, LEFT HAND, NATURAL (INCL. 2-7)
-
81824536-309 ASM-UPPER CONTROL ARM, RIGHT HAND, NATURAL (INCL. 2-7)ASM-UPPER CONTROL ARM, RIGHT HAND, NATURAL (INCL. 2-7)
-
97556545 WASHERWASHER
-
101824040 ASM., SPINDLE, LEFT HAND, RMK (INCL. 12)ASM., SPINDLE, LEFT HAND, RMK (INCL. 12)
-
101824041 ASM., SPINDLE, RIGHT HAND, RMK (INCL. 12)ASM., SPINDLE, RIGHT HAND, RMK (INCL. 12)
-
101824040-689 ASM., SPINDLE, LEFT HAND, RMK, VELOCITY BLUE (INCL. 12)ASM., SPINDLE, LEFT HAND, RMK, VELOCITY BLUE (INCL. 12)
-
101824041-689 ASM., SPINDLE, RIGHT HAND, RMK, VELOCITY BLUE (INCL. 12)ASM., SPINDLE, RIGHT HAND, RMK, VELOCITY BLUE (INCL. 12)
-
101824040-133 ASM., SPINDLE, LEFT HAND, RMK, WHITE LIGHTING (INCL. 12)ASM., SPINDLE, LEFT HAND, RMK, WHITE LIGHTING (INCL. 12)
-
101824040-293 ASM., SPINDLE, LEFT HAND, RMK, INDY RED (INCL. 12)ASM., SPINDLE, LEFT HAND, RMK, INDY RED (INCL. 12)
-
101824041-293 ASM., SPINDLE, RIGHT HAND, RMK, INDY RED (INCL. 12)ASM., SPINDLE, RIGHT HAND, RMK, INDY RED (INCL. 12)
-
101824040-647 ASM., SPINDLE, LEFT HAND, RMK, ORANGE BURST (INCL. 12)ASM., SPINDLE, LEFT HAND, RMK, ORANGE BURST (INCL. 12)
-
101824041-647 ASM., SPINDLE, RIGHT HAND, RMK, ORANGE BURST (INCL. 12)ASM., SPINDLE, RIGHT HAND, RMK, ORANGE BURST (INCL. 12)
-
101824041-133 ASM., SPINDLE, RIGHT HAND, RMK, WHITE LIGHTING (INCL. 12)ASM., SPINDLE, RIGHT HAND, RMK, WHITE LIGHTING (INCL. 12)
-
101824040-458 ASM., SPINDLE, LEFT HAND, RMK, BLACK (INCL. 12)ASM., SPINDLE, LEFT HAND, RMK, BLACK (INCL. 12)
-
101824041-458 ASM., SPINDLE, RIGHT HAND, RMK, BLACK (INCL. 12)ASM., SPINDLE, RIGHT HAND, RMK, BLACK (INCL. 12)
-
101824040-630 ASM., SPINDLE, LEFT HAND, RMK, LIME SQUEEZE (INCL. 12)ASM., SPINDLE, LEFT HAND, RMK, LIME SQUEEZE (INCL. 12)
-
101824041-630 ASM., SPINDLE, RIGHT HAND, RMK, LIME SQUEEZE (INCL. 12)ASM., SPINDLE, RIGHT HAND, RMK, LIME SQUEEZE (INCL. 12)
-
117547333 NUT, NYLOCNUT, NYLOC
-
125438460 BUSHINGBUSHING
-
135136910 BUSHINGBUSHING
-
141824533-309 ASM-LOWER CONTROL ARM, LEFT HAND, NATURAL (INCL. 2-6, 15, 18)ASM-LOWER CONTROL ARM, LEFT HAND, NATURAL (INCL. 2-6, 15, 18)
-
141824534-309 ASM-LOWER CONTROL ARM, RIGHT HAND, NATURAL (INCL. 2-6, 15, 18)ASM-LOWER CONTROL ARM, RIGHT HAND, NATURAL (INCL. 2-6, 15, 18)
-
141824533-458 ASM-LOWER CONTROL ARM, LEFT HAND, BLACK (INCL. 2-6, 15, 18) (SNOW CHECK)ASM-LOWER CONTROL ARM, LEFT HAND, BLACK (INCL. 2-6, 15, 18) (SNOW CHECK)
-
141824534-458 ASM-LOWER CONTROL ARM, RIGHT HAND, BLACK (INCL. 2-6, 15, 18) (SNOW CHECK)ASM-LOWER CONTROL ARM, RIGHT HAND, BLACK (INCL. 2-6, 15, 18) (SNOW CHECK)
-
167519286 SCREWSCREW
-
177710539 RING, RETAININGRING, RETAINING
-
185140557 SHAFT, PIVOT, LOWER CONTROL ARM, FRONTSHAFT, PIVOT, LOWER CONTROL ARM, FRONT
-
197518917 SCREWSCREW
-
207547423 NUTNUT
-
217519245 SCREWSCREW
-
227556524 WASHERWASHER
-
235138124 SPACER, ALUM.SPACER, ALUM.
-
257518941 SCREWSCREW
-
265137360 BUSHINGBUSHING
