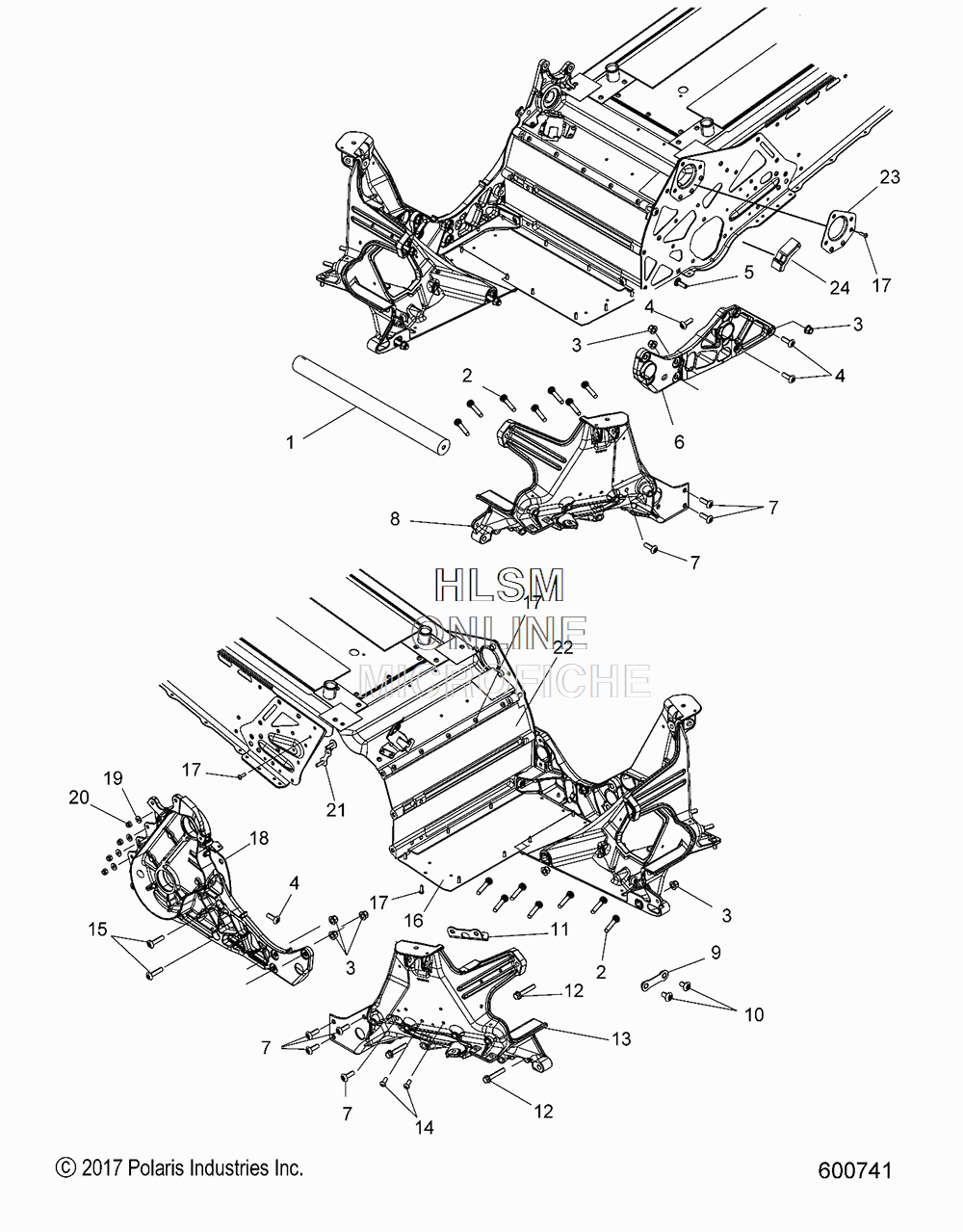

BULKHEAD ASSEMBLY для Polaris 800 AXYS PRO RMK 174 3'' (S18EHM8PSPEB) - 2018 года выпуска
-
№АртикулНазвание
-
-2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
-
-2204172 KIT, LORD, MIX NOZZLES, 12 PIECEKIT, LORD, MIX NOZZLES, 12 PIECE
-
-2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
-
15140781 TUBE-CROSSOVER, EXTRUDEDTUBE-CROSSOVER, EXTRUDED
-
27519204 STUDSTUD
-
37547332 NUTNUT
-
47518906 SCREWSCREW
-
57520297 BOLT, CARRIAGEBOLT, CARRIAGE
-
61019183 ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
-
77519070 SCREWSCREW
-
81019665 ASM., CLIP W/STUD, LEFT HAND (INCL. STUDS) (REQUIRES ADHESIVE)ASM., CLIP W/STUD, LEFT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
-
91020829 ASM., STUD PLATE, 47MMASM., STUD PLATE, 47MM
-
107519109 SCREWSCREW
-
111019666 ASM., BRKT., IDLER, TOPASM., BRKT., IDLER, TOP
-
127516732 SCREWSCREW
-
131019182 ASM., CLIP W/STUD, RIGHT HAND (INCL. STUDS) (REQUIRES ADHESIVE)ASM., CLIP W/STUD, RIGHT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
-
147518656 SCREWSCREW
-
157519049 SCREWSCREW
-
165256849 FLOOR, BULKHEADFLOOR, BULKHEAD
-
177661637 RIVETRIVET
-
197556588 WASHERWASHER
-
207547505 NUTNUT
-
211020066 ASM-STUD PLATE M6X4 STEPPEDASM-STUD PLATE M6X4 STEPPED
-
225138382 CLOSEOFF, BULKHEADCLOSEOFF, BULKHEAD
-
235258020 FLANGETTE-3BOLT 0MM OFFSETFLANGETTE-3BOLT 0MM OFFSET
-
245814424 PAD-40X90PAD-40X90
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- • BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS - GLOSS BLACK W/TITANIUM ACCENT OR WHITE W/TITANIUM ACCENT
- DECALS - LIME SQUEEZE
- DECALS - MATTE TITANIUM W/PINK RIBBON RIDER ACCENT
- DECALS - ORANGE BURST
- DECALS - RETRO AND MIDNITE BLUE W/RED WHITE ACCENT
- DECALS- INDY RED SIDE PANEL OR VELOCITY BLUE W/TITANIUM ACCENT SIDE PANEL
- DECALS- STEALTH BLACK W/LIME SQUEEZE ACCENT
- DECALS- VELOCITY BLUE W/LIME SQUEEZE ACCENT
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVE ASM.
- FENDERS W/ NOSEPAN ASM.
- FUEL TANK
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- MULTI-FUNCTION GAUGE
- OIL BOTTLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OPTIONS - SADDLEBAGS
- RECOIL STARTER
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SIDE PANELS
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - LOWER
- SUSPENSION - FRONT SHOCK TRACK (BLACK COIL OVER)
- SUSPENSION - FRONT SHOCK TRACK (CLEAR COIL OVER)
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - IFS SHOCK W/RESERVOIR
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK (COIL OVER)
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- SUSPENSION- SHOCK- REAR TRACK- W/RES.
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOLS- BELT HOLDER- TOOLS- AND OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
