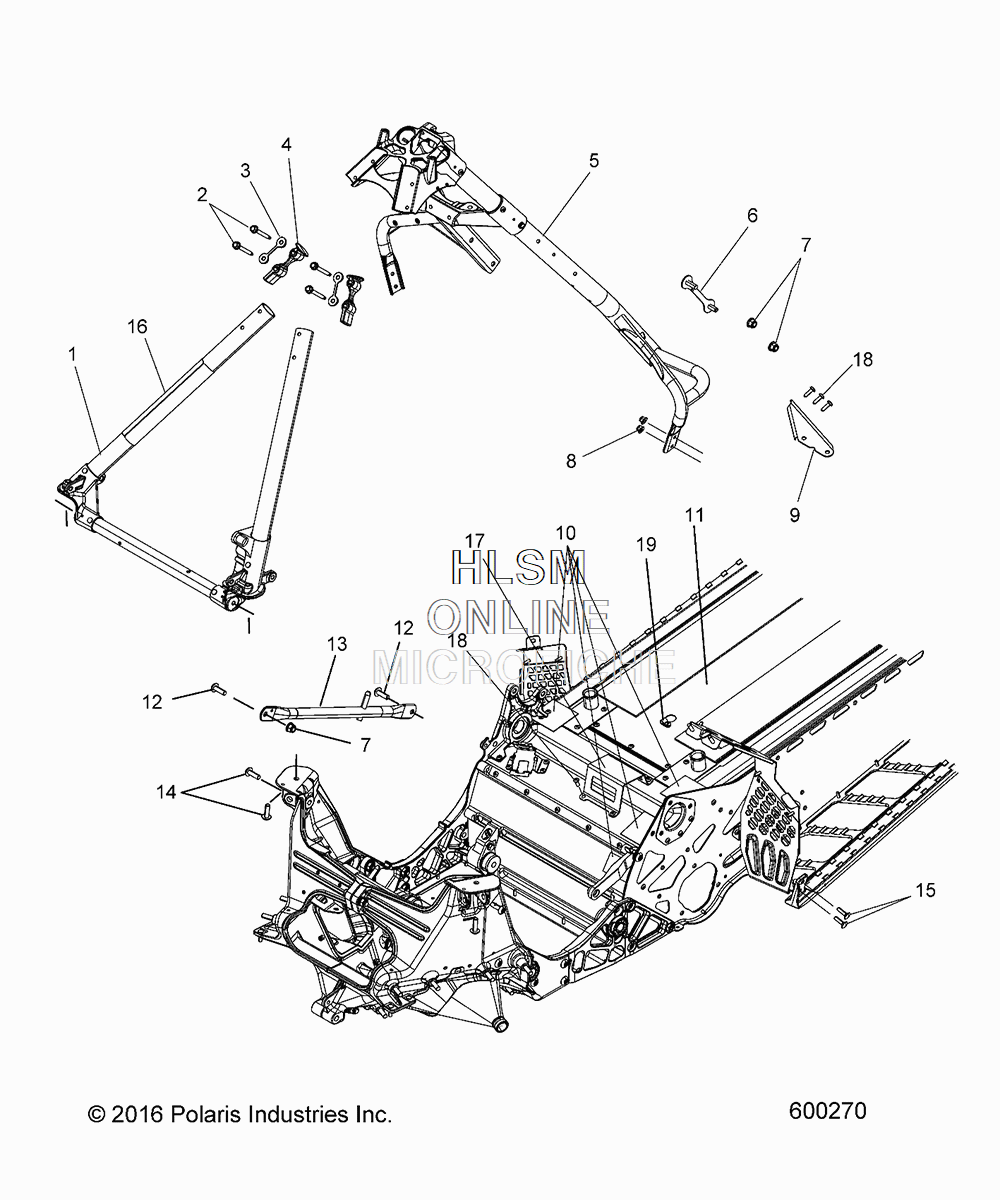

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 AXYS RMK ASSAULT 155 (S18EFT8P) - 2018 года выпуска
-
№АртикулНазвание
-
11019338 ASM., FRAME, TUBE, FRONT, RMKASM., FRAME, TUBE, FRONT, RMK
-
27519967 SCREWSCREW
-
35633083 SHIM, TUBE, 31.76 DIASHIM, TUBE, 31.76 DIA
-
45632923 SPACER, TUBE CASTSPACER, TUBE CAST
-
51019339 ASM., FRAME, TUBULAR, REAR, RMKASM., FRAME, TUBULAR, REAR, RMK
-
61019337 ASM., STUD PLATE, 91MMASM., STUD PLATE, 91MM
-
77547332 NUTNUT
-
87547453 NUTNUT
-
95262012 BRKT., SUPPORT, TOE STOPBRKT., SUPPORT, TOE STOP
-
105814353 PADPAD
-
111019376-705 ASM-CHASSIS MNT155 ASSLT TITANIUM (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)ASM-CHASSIS MNT155 ASSLT TITANIUM (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)
-
111019377-705 ASM-TUNNEL 155 ASSLT SVC TITANIUM (SNOW CHECK)ASM-TUNNEL 155 ASSLT SVC TITANIUM (SNOW CHECK)
-
111020652-458 ASM-TUNNEL 155 ASSLT SVC BLACK (SNOW CHECK)ASM-TUNNEL 155 ASSLT SVC BLACK (SNOW CHECK)
-
111020651-485 ASM-CHASSIS MNT155 ASSLT MIDNIGHT BLUE (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)ASM-CHASSIS MNT155 ASSLT MIDNIGHT BLUE (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)
-
111020651-293 ASM-CHASSIS MNT155 ASSLT INDY RED (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)ASM-CHASSIS MNT155 ASSLT INDY RED (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)
-
111020652-293 ASM-TUNNEL 155 ASSLT SVC INDY RED (SNOW CHECK)ASM-TUNNEL 155 ASSLT SVC INDY RED (SNOW CHECK)
-
111020651-647 ASM-CHASSIS MNT155 ASSLT ORANGE BURST (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)ASM-CHASSIS MNT155 ASSLT ORANGE BURST (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)
-
111020652-647 ASM-TUNNEL 155 ASSLT SVC ORANGE BURST (SNOW CHECK)ASM-TUNNEL 155 ASSLT SVC ORANGE BURST (SNOW CHECK)
-
111020651-458 ASM-CHASSIS MNT155 ASSLT BLACK (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)ASM-CHASSIS MNT155 ASSLT BLACK (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)
-
111020652-485 ASM-TUNNEL 155 ASSLT SVC MIDNIGHT BLUE (SNOW CHECK)ASM-TUNNEL 155 ASSLT SVC MIDNIGHT BLUE (SNOW CHECK)
-
111020652-309 ASM-TUNNEL 155 ASSLT SVC NATURALASM-TUNNEL 155 ASSLT SVC NATURAL
-
111020651-689 ASM-CHASSIS MNT155 ASSLT VELOCITY BLUE (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)ASM-CHASSIS MNT155 ASSLT VELOCITY BLUE (SNOW CHECK) (INCL. BULKHEAD AND CHAINCASE)
-
111020652-689 ASM-TUNNEL 155 ASSLT SVC VELOCITY BLUE (SNOW CHECK)ASM-TUNNEL 155 ASSLT SVC VELOCITY BLUE (SNOW CHECK)
-
111020651-309 ASM-CHASSIS MNT155 ASSLT NATURAL (INCL. BULKHEAD AND CHAINCASE)ASM-CHASSIS MNT155 ASSLT NATURAL (INCL. BULKHEAD AND CHAINCASE)
-
127518906 SCREWSCREW
-
131019861-067 WELD-TUBE BRACE RIGHT HAND BLACKWELD-TUBE BRACE RIGHT HAND BLACK
-
147519070 SCREWSCREW
-
157519338 SCREWSCREW
-
165814124 FOILFOIL
-
175258618 BRKT., AIR BOX SUPPPORTBRKT., AIR BOX SUPPPORT
-
187661637 RIVETRIVET
-
197080539 CLAMP-NYLON, CABLE, 1/4 INCLAMP-NYLON, CABLE, 1/4 IN
-
197662251 RIVET-4.8MM DIA-1.5-6.0GRIP BKRIVET-4.8MM DIA-1.5-6.0GRIP BK
