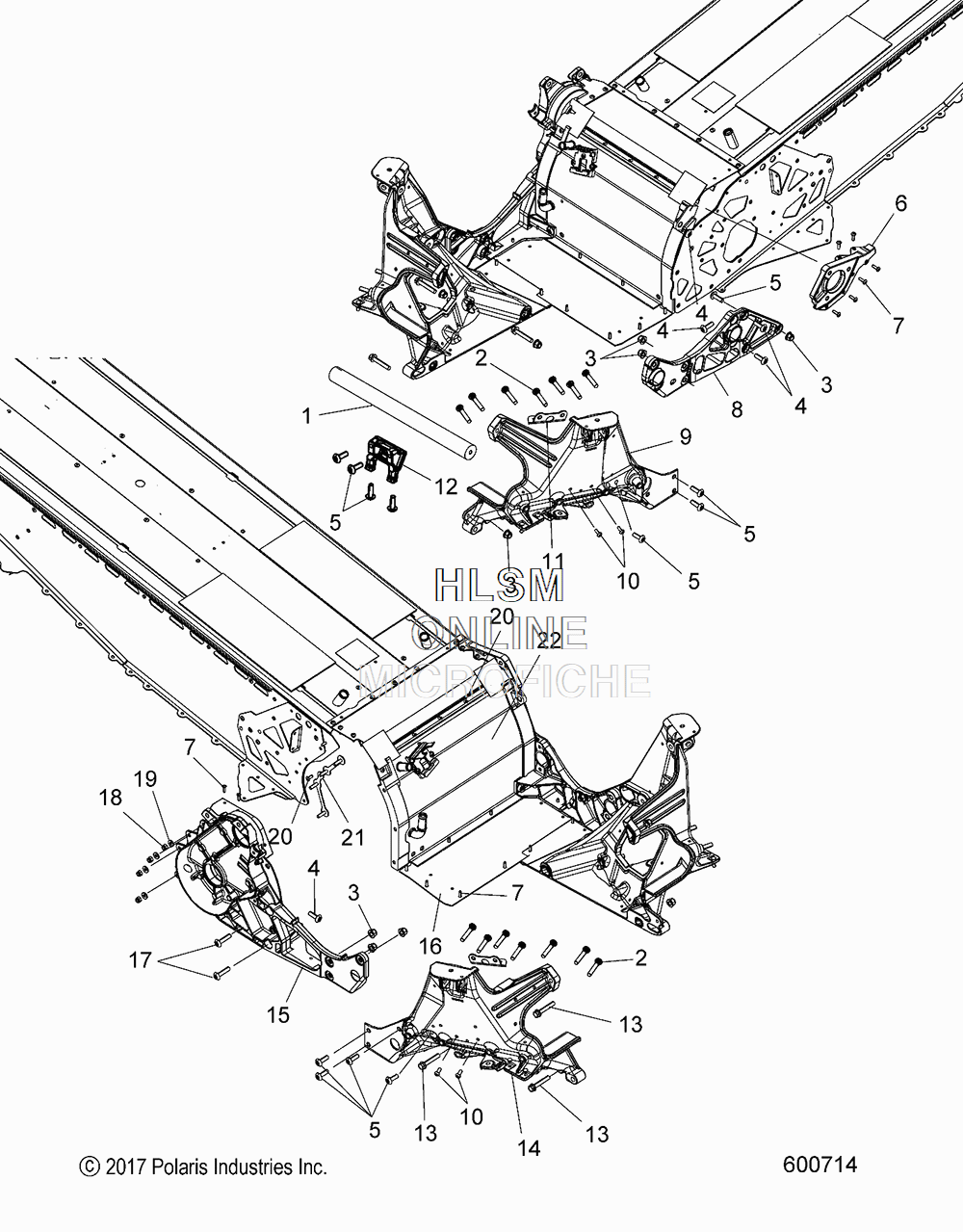

BULKHEAD ASSEMBLY для Polaris 800 AXYS SKS 146 (S18ELS8P) - 2018 года выпуска
-
№АртикулНазвание
-
-2204172 KIT, LORD, MIX NOZZLES, 12 PIECEKIT, LORD, MIX NOZZLES, 12 PIECE
-
-2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
-
-2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
-
15140781 TUBE-CROSSOVER, EXTRUDEDTUBE-CROSSOVER, EXTRUDED
-
27519204 STUDSTUD
-
37547332 NUTNUT
-
47518906 SCREWSCREW
-
57519070 SCREWSCREW
-
65139244 MOUNT-JACKSHAFT BRG.MOUNT-JACKSHAFT BRG.
-
77661637 RIVETRIVET
-
81019183 ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
-
91019181 ASM., CLIP W/STUD, LEFT HAND (INCL. STUDS) (REQUIRES ADHESIVE)ASM., CLIP W/STUD, LEFT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
-
107518656 SCREWSCREW
-
111019666 ASM., BRKT., IDLER, TOPASM., BRKT., IDLER, TOP
-
125138449 MOUNT, STEERING, LOWERMOUNT, STEERING, LOWER
-
137516732 SCREWSCREW
-
141019182 ASM., CLIP W/STUD, RIGHT HAND (INCL. STUDS) (REQUIRES ADHESIVE)ASM., CLIP W/STUD, RIGHT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
-
151333119 CHAINCASE (REQUIRES ADHESIVE)CHAINCASE (REQUIRES ADHESIVE)
-
165256849 FLOOR, BULKHEADFLOOR, BULKHEAD
-
177519049 SCREWSCREW
-
187547505 NUTNUT
-
197556588 WASHERWASHER
-
207661973 RIVET-4.8MM DIA-1.5-6.0 GRIPRIVET-4.8MM DIA-1.5-6.0 GRIP
-
211020927 ASM., STUD PLATEASM., STUD PLATE
-
221240857 ASM-COOLER, BULKHEADASM-COOLER, BULKHEAD
