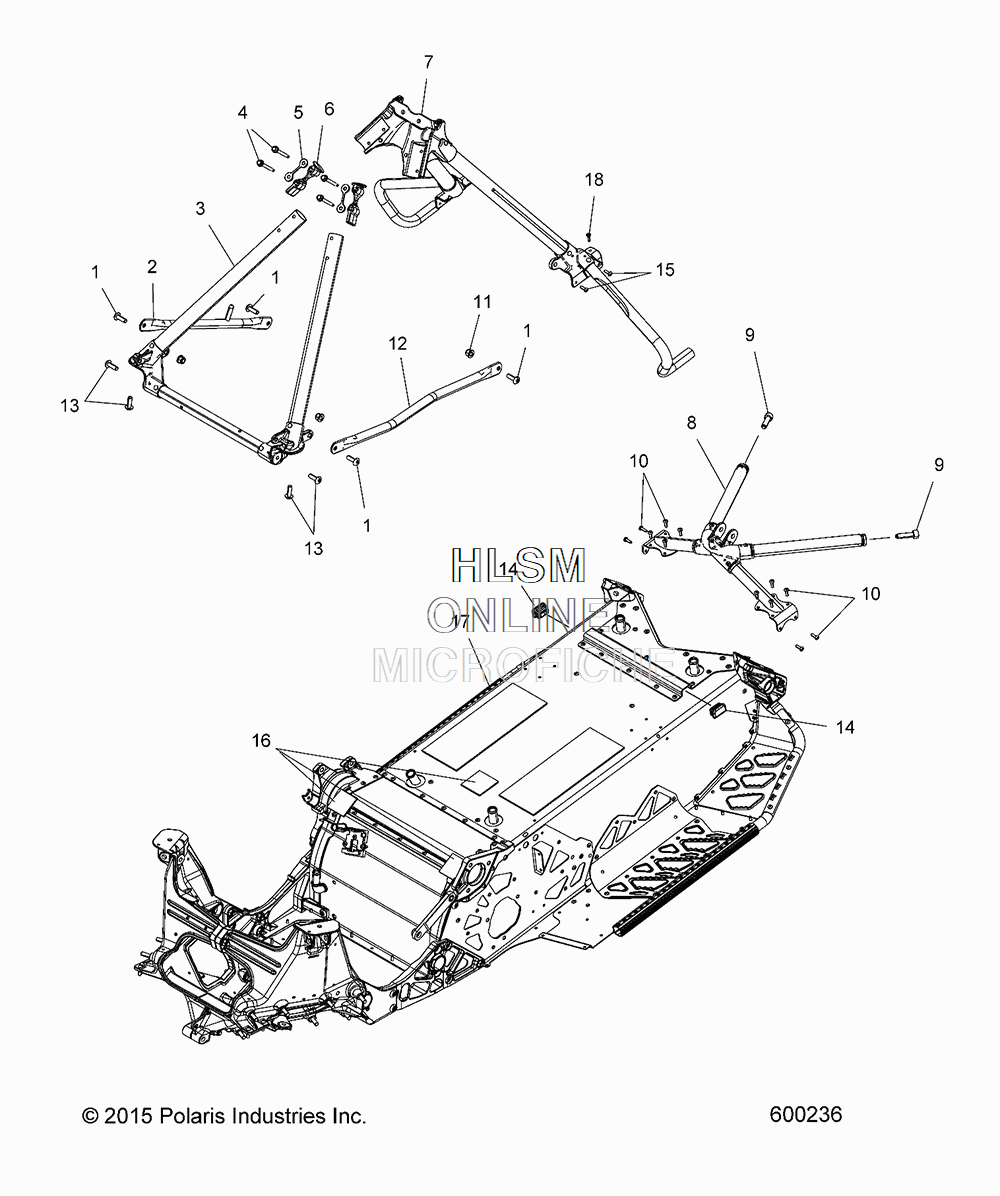

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 RUSH XCR INTL (S18DCL8PEM) - 2018 года выпуска
-
№АртикулНазвание
-
17518906 SCREWSCREW
-
21019861-067 BRACE, TUBE, RIGHT HAND, E-COATBRACE, TUBE, RIGHT HAND, E-COAT
-
31021006 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
47519967 SCREWSCREW
-
55633083 SHIM, TUBE CAST, 31.76 DIASHIM, TUBE CAST, 31.76 DIA
-
65633122 SPACER, TUBE CAST, 27.00 DIASPACER, TUBE CAST, 27.00 DIA
-
71019146 ASM., TUBE FRAME, REARASM., TUBE FRAME, REAR
-
81021433-458 ASM., R/T SHOCK MOUNT 120, MATTE BLACKASM., R/T SHOCK MOUNT 120, MATTE BLACK
-
97519102 SCREWSCREW
-
107661637 RIVETRIVET
-
117547332 NUTNUT
-
125337391-329 BRACE, TUBE, LEFT HAND, E-COATBRACE, TUBE, LEFT HAND, E-COAT
-
137519070 SCREWSCREW
-
145439145 PLUG, TUNNEL SUPPORTPLUG, TUNNEL SUPPORT
-
157661130 RIVETRIVET
-
165814187 PAD, 2.5 IN X 2.5 INPAD, 2.5 IN X 2.5 IN
-
171022084-1447 ASM., CHASSIS, 120 PROG., MATTE BLACKASM., CHASSIS, 120 PROG., MATTE BLACK
-
187520147 SCREW, TXBHSCREW, TXBH
Все узлы модели:
- AIR INTAKE SYSTEM
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/ CLOSEOFF
- CHAINCASE ASSEMBLY
- • CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ELECTRICAL- BATTERY AND CABLES
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVE ASM.
- FENDERS W/ NOSEPAN ASM.
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- MULTI-FUNCTION GAUGE
- OIL BOTTLE ASSEMBLY
- OIL PUMP ASSEMBLY
- RECOIL STARTER
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT
- SIDE PANELS
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING - LOWER
- STEERING - UPPER W/ HANDLEBAR ASSEMBLY
- SUSPENSION - CRANK ASSEMBLY - REAR
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOLS- BELT HOLDER- TOOLS- AND OWNERS MANUAL
- TUNNEL ASSEMBLY
- WATER PUMP
- WINDSHIELD
