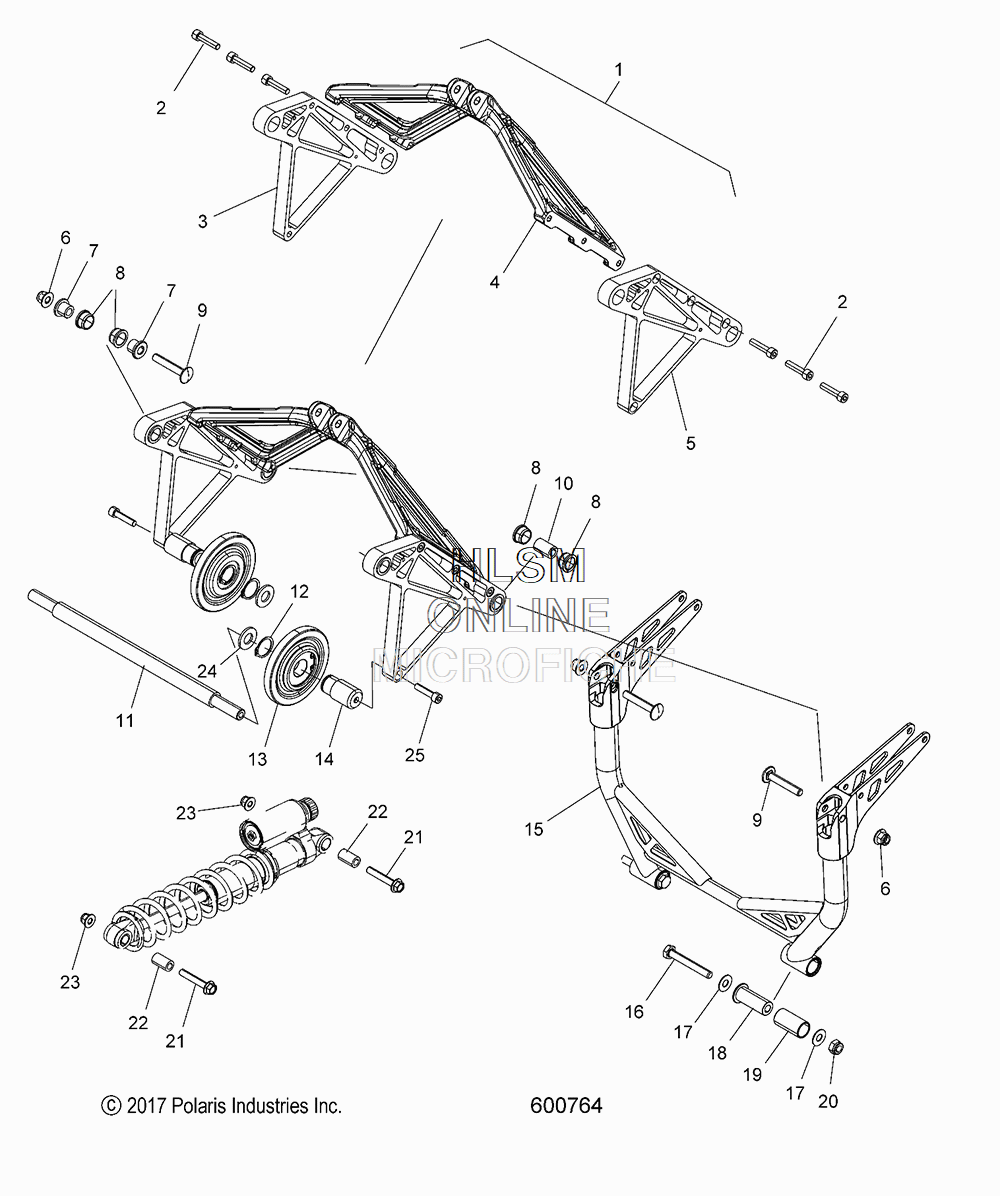

SUSPENSION - CRANK ASSEMBLY - REAR для Polaris 800 SWITCHBACK PRO-X SNOW CHECK (S18DDJ8PS) - 2018 года выпуска
-
№АртикулНазвание
-
11543872-458 ASM-CRANK, MATTE BLACK (INCL. 2-5)ASM-CRANK, MATTE BLACK (INCL. 2-5)
-
27519981 SCREWSCREW
-
35140959 CRANK, SIDE, RIGHT HAND (UNPAINTED)CRANK, SIDE, RIGHT HAND (UNPAINTED)
-
45138645 CRANK, CENTER (UNPAINTED)CRANK, CENTER (UNPAINTED)
-
55140958 CRANK, SIDE, LEFT HAND (UNPAINTED)CRANK, SIDE, LEFT HAND (UNPAINTED)
-
67547423 NUTNUT
-
75138652 SHAFT, RPA, UPPER LWTSHAFT, RPA, UPPER LWT
-
85438876 BUSHING, CRANKBUSHING, CRANK
-
97519982 BOLT, CARRIAGEBOLT, CARRIAGE
-
105138654 SHAFT, PIVOT, LWT UPPERSHAFT, PIVOT, LWT UPPER
-
115139816 SHAFT, CARRIER, STEPPEDSHAFT, CARRIER, STEPPED
-
127710603 RING, RETAININGRING, RETAINING
-
131590538 ASM., WHEEL, CARRIER (INCL 11, 13)ASM., WHEEL, CARRIER (INCL 11, 13)
-
145139469 SPACER, CARRIERSPACER, CARRIER
-
151543461-458 ASM., REAR PIVOT, MATTE BLACK (INCL. 18)ASM., REAR PIVOT, MATTE BLACK (INCL. 18)
-
167519015 SCREWSCREW
-
177556545 WASHERWASHER
-
185138648 SHAFT, PIVOT, LWT LOWERSHAFT, PIVOT, LWT LOWER
-
195438875 BUSHING, PIVOTBUSHING, PIVOT
-
207547442 NUTNUT
-
217518941 SCREWSCREW
-
225137360 BUSHINGBUSHING
-
237547423 NUTNUT
-
247556004 WASHERWASHER
-
257520217 SCREW, SHSCREW, SH
