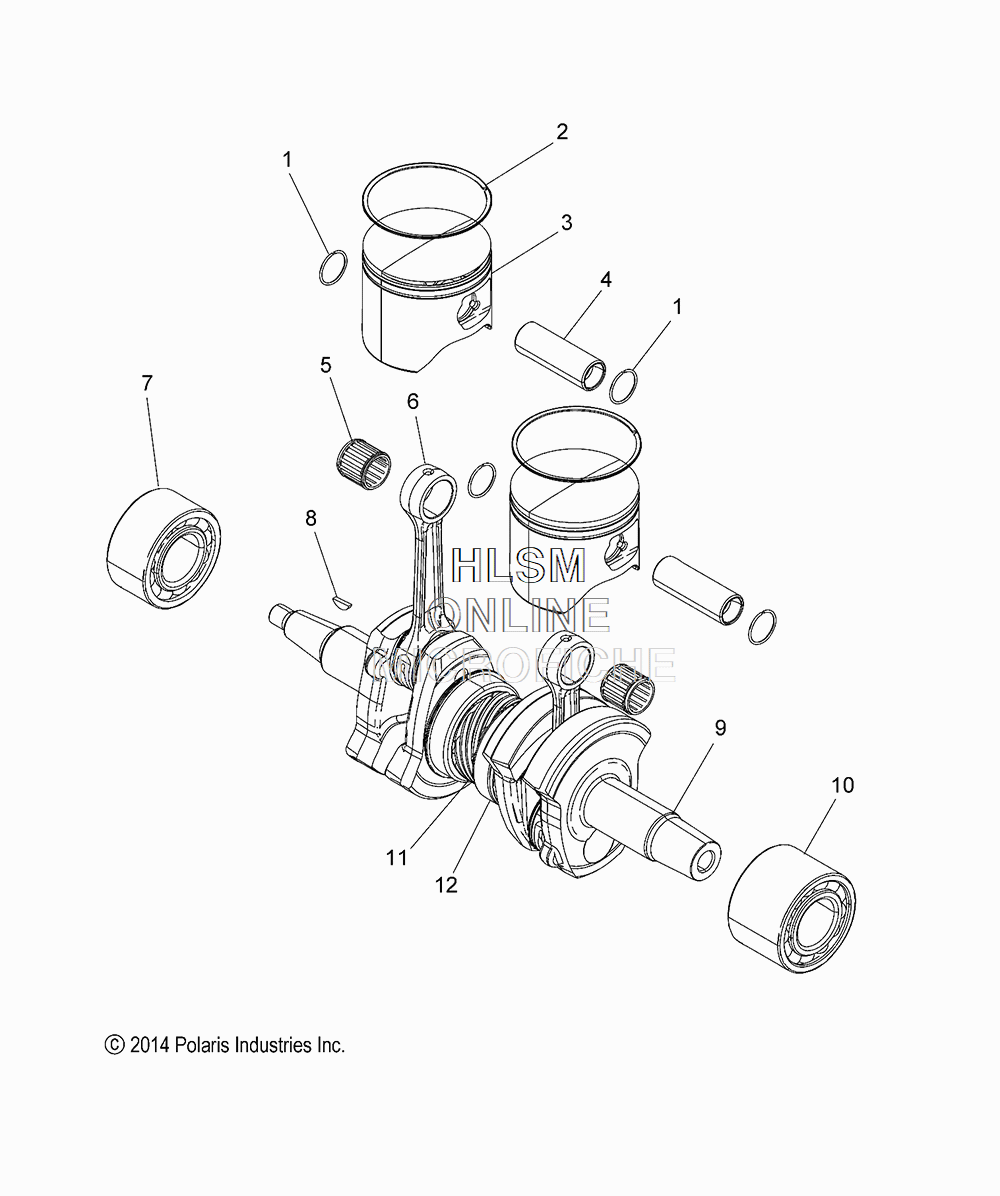

CRANKSHAFT ASSY. W/ PISTON для Polaris 800 SWITCHBACK XCR INTL (S18DDL8PEM) - 2018 года выпуска
-
№АртикулНазвание
-
13022830 CIRCLIP, PISTONCIRCLIP, PISTON
-
22206375 KIT, PISTON RINGS, 800LE (INCL. 2 RINGS)KIT, PISTON RINGS, 800LE (INCL. 2 RINGS)
-
32206374 KIT, PISTON, 800CH (INCL. 1, 2, 4)KIT, PISTON, 800CH (INCL. 1, 2, 4)
-
53514883 BEARING-17NDLBEARING-17NDL
-
62206470 KIT, CONNECTING ROD (INCL. CRANKWEB, CONN. ROD, BEARING, WASHERS)KIT, CONNECTING ROD (INCL. CRANKWEB, CONN. ROD, BEARING, WASHERS)
-
73514530 BEARING, BALL, DOUBLE ROWBEARING, BALL, DOUBLE ROW
-
87721117 KEY, WOODRUFFKEY, WOODRUFF
-
92206373 KIT, CRANKSHAFT (INCL. 5, 6, 7, 10 )KIT, CRANKSHAFT (INCL. 5, 6, 7, 10 )
-
103514908 BEARING, BALLBEARING, BALL
-
115138548 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
127710528 RING, SNAPRING, SNAP
-
123090283 BEARING, BALLBEARING, BALL
-
123090284 BEARING, BALL, W/RING FJBEARING, BALL, W/RING FJ
