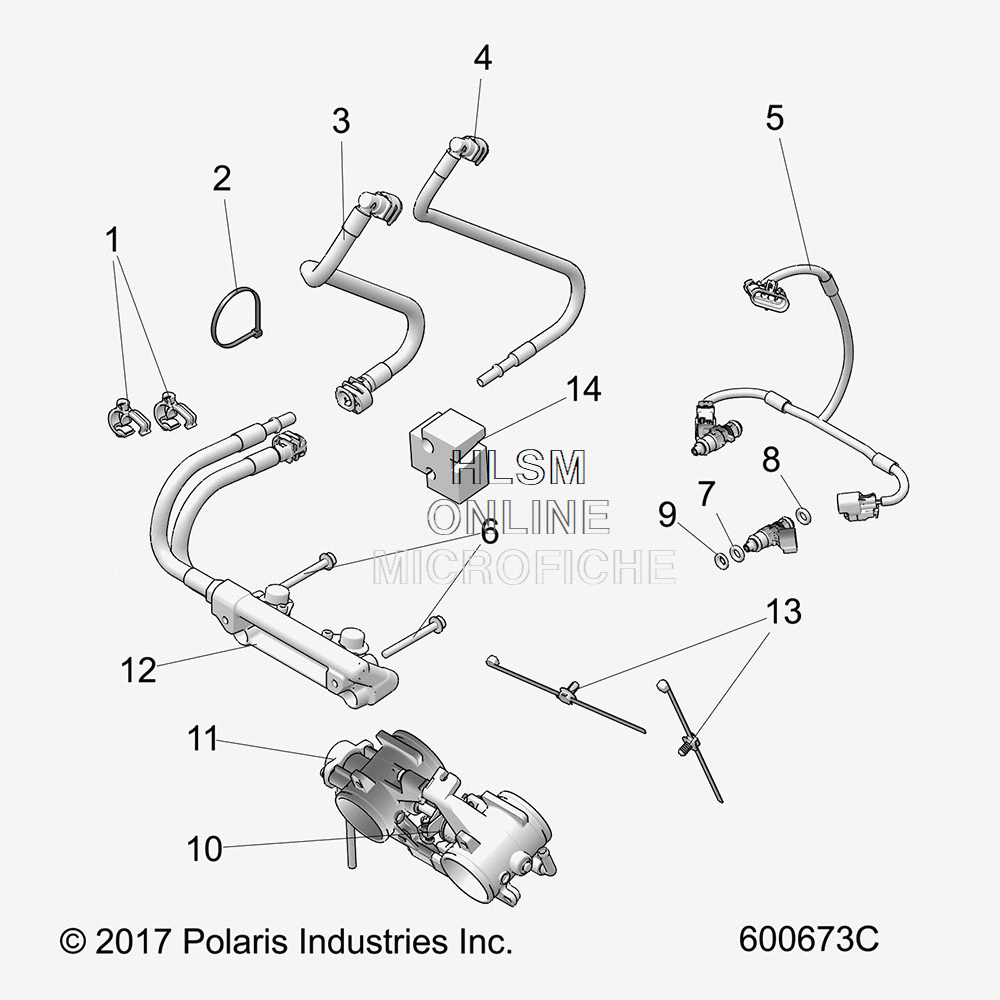

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 800 TITAN SP (S18FJB8) - 2018 года выпуска
-
№АртикулНазвание
-
17081871 CLIP, HARNESS 3-13MM, INTERLOCKCLIP, HARNESS 3-13MM, INTERLOCK
-
27080356 CABLE TIECABLE TIE
-
32521685 ASM., FUEL LINE RETURNASM., FUEL LINE RETURN
-
42521684 ASM., FUEL LINE SUPPLYASM., FUEL LINE SUPPLY
-
54014715 HARNESS, INJECTOR WITH LEADHARNESS, INJECTOR WITH LEAD
-
67519244 SCREW, M6SCREW, M6
-
71500198 O-RINGO-RING
-
85412891 O-RINGO-RING
-
95436287 BUSHING, RUBBERBUSHING, RUBBER
-
101205241 ASM., THROTTLE BODY, 48MMASM., THROTTLE BODY, 48MM
-
122521382 ASM., FUEL RAIL, ASASM., FUEL RAIL, AS
-
137081496 CLIP, ROUTINGCLIP, ROUTING
-
145814352 FOAM BLOCKFOAM BLOCK
