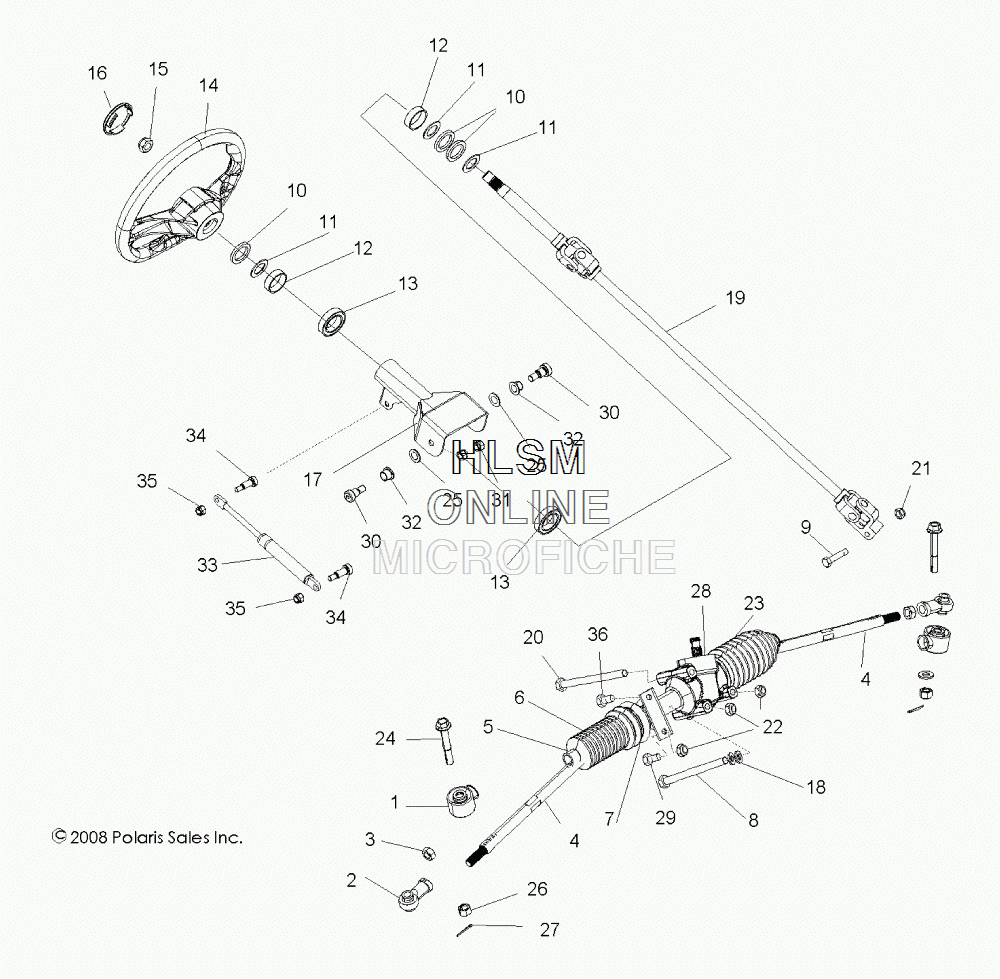

STEERING ASM. для Polaris RZR 800 EFI STEALTH BLACK [R09VH76AS] - 2009 года выпуска
-
№АртикулНазвание
-
15411920 BOOT, SEAL, ROD ENDBOOT, SEAL, ROD END
-
27061054 ROD ENDROD END
-
37547028 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
57080978 CLAMP, BOOT, SMALLCLAMP, BOOT, SMALL
-
65412013 BOOT, PASSENGER, SIDE RACKBOOT, PASSENGER, SIDE RACK
-
77080979 CLAMP, BOOT, LARGECLAMP, BOOT, LARGE
-
87515382 BOLTBOLT
-
97518644 SCREWSCREW
-
107556482 WASHERWASHER
-
117556483 WASHERWASHER
-
125252796 SPACER, STEERING SHAFTSPACER, STEERING SHAFT
-
133514646 BEARING, STEERINGBEARING, STEERING
-
141823623 WHEEL, STEERINGWHEEL, STEERING
-
157547188 NUTNUT
-
165436536 CAP, STEERING WHEELCAP, STEERING WHEEL
-
171016721-458 TUBE, PIVOT, MATTE' BLACKTUBE, PIVOT, MATTE' BLACK
-
187558402 WASHER, FLATWASHER, FLAT
-
191542610 SHAFT, STEERING, UPPER/LOWER (BUILT 1/01/09 AND BEFORE)SHAFT, STEERING, UPPER/LOWER (BUILT 1/01/09 AND BEFORE)
-
191823681 SHAFT, STEERING, UPPER/LOWER (BUILT 1/02/09 AND AFTER)SHAFT, STEERING, UPPER/LOWER (BUILT 1/02/09 AND AFTER)
-
207518895 BOLT (LOCK PATCH)BOLT (LOCK PATCH)
-
217547385 NUT, NYLOKNUT, NYLOK
-
227542324 NUT, NYLOKNUT, NYLOK
-
235412012 BOOT, DRIVER SIDE, RACKBOOT, DRIVER SIDE, RACK
-
247517909 BOLTBOLT
-
257555919 WASHERWASHER
-
267547177 NUTNUT
-
277661203 PIN, COTTERPIN, COTTER
-
281823497 ASM., GEAR BOX, STEERING (INCL. 2-7,23)ASM., GEAR BOX, STEERING (INCL. 2-7,23)
-
297512371 BOLTBOLT
-
307517607 BOLT, SHOULDERBOLT, SHOULDER
-
317542451 NUT, NYLOKNUT, NYLOK
-
325431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
337043439 ASM., SHOCK, OIL LOCKINGASM., SHOCK, OIL LOCKING
-
347518786 BOLT, SHOULDERBOLT, SHOULDER
-
357546703 NUT, NYLOKNUT, NYLOK
-
367512325 BOLTBOLT
