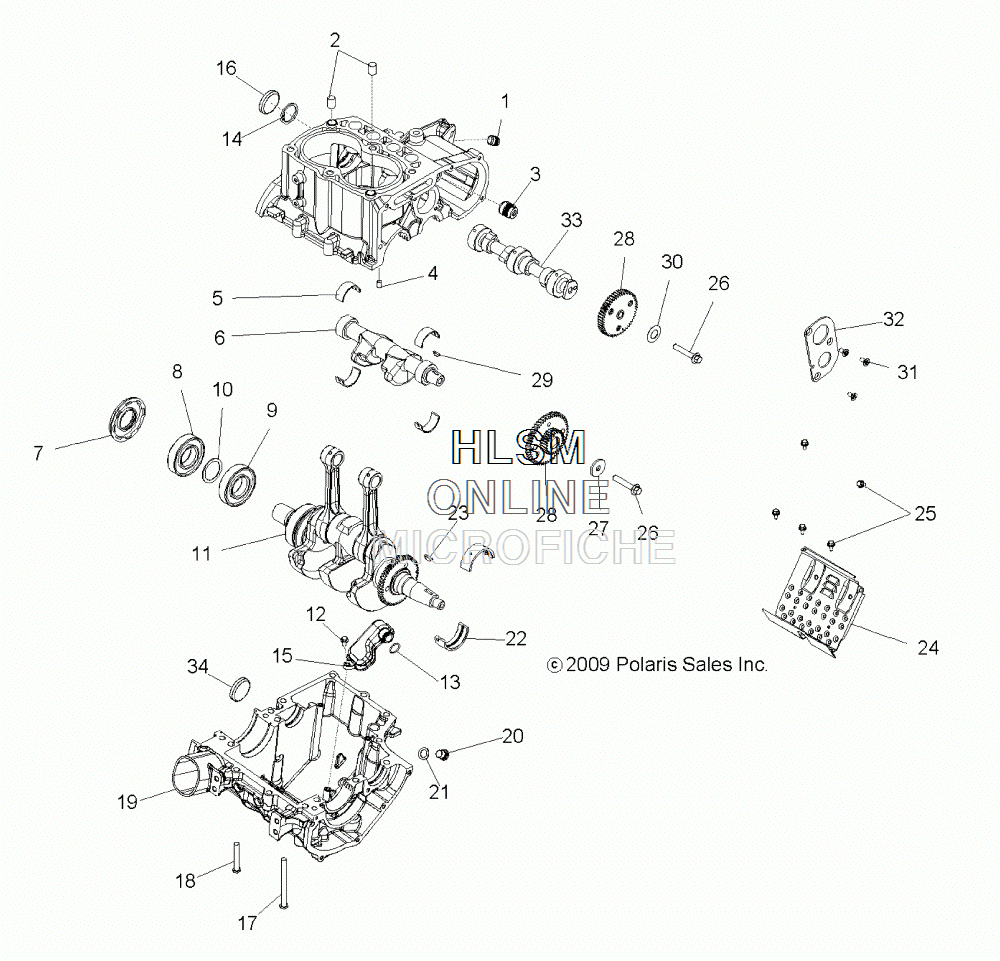

CRANKCASE AND CRANKSHAFT для Polaris RZR S 800EFI PURPLE THUNDER [R10VH76AW] - 2010 года выпуска
-
№АртикулНазвание
-
-2203913 KIT, SHORT BLOCKKIT, SHORT BLOCK
-
17051531 PLUG, EXPANSIONPLUG, EXPANSION
-
27661175 DOWELDOWEL
-
37052288 PLUG, EXPANSIONPLUG, EXPANSION
-
47663001 PIN, DOWELPIN, DOWEL
-
55132753 BEARING, BALANCE SHAFT JOURNALBEARING, BALANCE SHAFT JOURNAL
-
65134837 SHAFT, BALANCESHAFT, BALANCE
-
75412676 SEALSEAL
-
83514361 BEARING, BALLBEARING, BALL
-
93514318 BEARING, BALLBEARING, BALL
-
107556194 BUSHINGBUSHING
-
112203068 KIT, CRANKSHAFT (INCL. 8-11,22)KIT, CRANKSHAFT (INCL. 8-11,22)
-
127516603 BOLTBOLT
-
135413013 O-RINGO-RING
-
147710512 RING, RETAININGRING, RETAINING
-
151204082 ASM., OIL PICKUP (INCL. 13)ASM., OIL PICKUP (INCL. 13)
-
163060004 PLUG, EXPANSIONPLUG, EXPANSION
-
177517792 SCREWSCREW
-
187517793 SCREWSCREW
-
192203301 KIT, CRANKCASE (INCL. 1-5,12-18,20-22,24,25,34,KIT, CRANKCASE (INCL. 1-5,12-18,20-22,24,25,34,
-
207052306 PLUG, SOCKETPLUG, SOCKET
-
215812232 WASHER, COPPERWASHER, COPPER
-
223585704 BEARING, MAIN JOURNALBEARING, MAIN JOURNAL
-
237721117 KEY, WOODRUFFKEY, WOODRUFF
-
245253617 PLATE, BAFFLEPLATE, BAFFLE
-
257518045 SCREWSCREW
-
267517865 SCREWSCREW
-
277555982 WASHERWASHER
-
282203106 KIT, GEAR SETKIT, GEAR SET
-
297721131 KEY, WOODRUFFKEY, WOODRUFF
-
307556183 WASHER, SPRINGWASHER, SPRING
-
317517598 SCREWSCREW
-
325244286 PLATE, THRUSTPLATE, THRUST
-
332203740 KIT, CAMSHAFT (INCL. CAM AND LIFTERS)KIT, CAMSHAFT (INCL. CAM AND LIFTERS)
-
347051534 PLUG, EXPANSIONPLUG, EXPANSION
