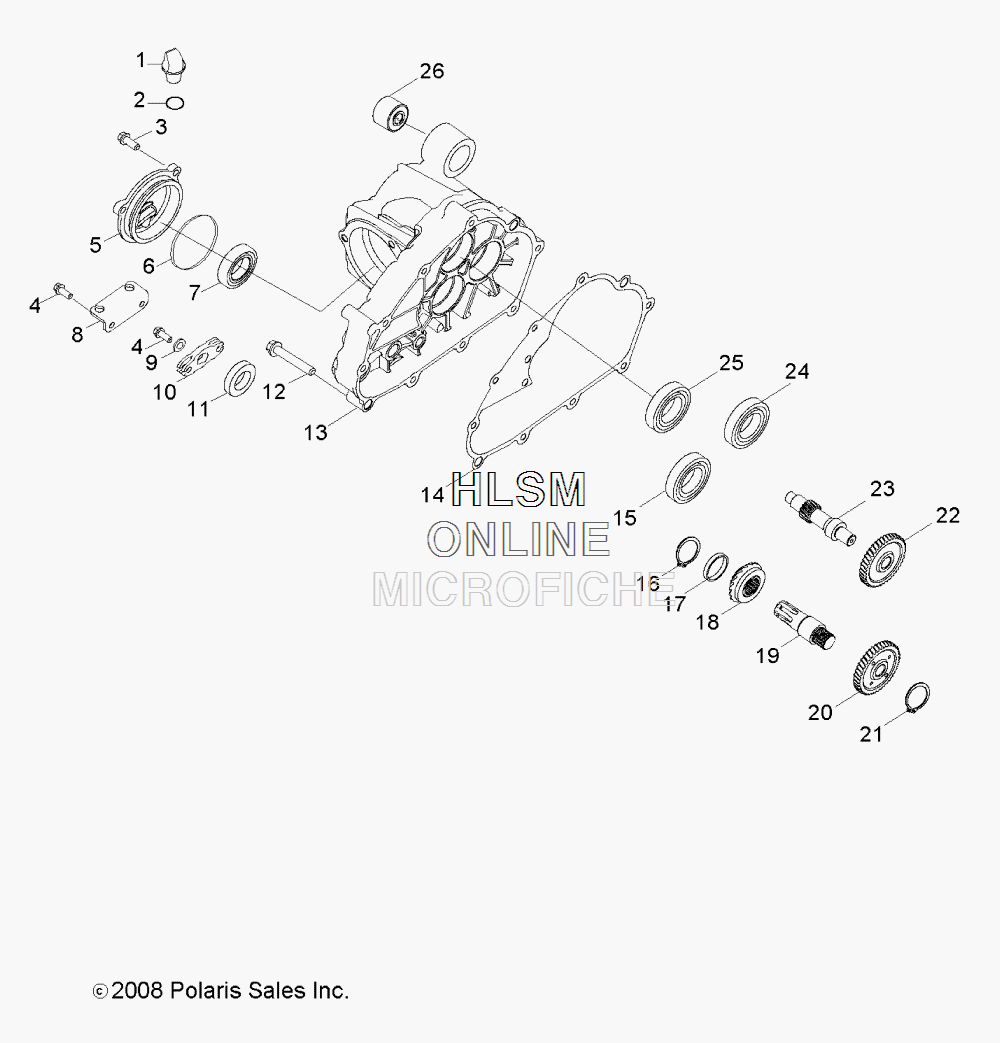

DRIVE SHAFT для Polaris RZR 170 [R11VA17AA] - 2011 года выпуска
-
№АртикулНазвание
-
10451813 PLUG, OILPLUG, OIL
-
20452394 O-RINGO-RING
-
30453519 BOLTBOLT
-
40454011 BOLTBOLT
-
50454548 COVER, TRANSMISSION, RIGHT HANDCOVER, TRANSMISSION, RIGHT HAND
-
60454549 O-RINGO-RING
-
70454550 BEARING, BALLBEARING, BALL
-
80454551 BRACKET, TRANSMISSIONBRACKET, TRANSMISSION
-
90452201 WASHER, FLATWASHER, FLAT
-
100454552 PIVOT, SHIFT, LEVERPIVOT, SHIFT, LEVER
-
110452175 SEAL, OILSEAL, OIL
-
120452331 BOLTBOLT
-
130454553 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
140454383 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
150452346 BEARING, BALLBEARING, BALL
-
160452529 CLIP, CIRCLIP, CIR
-
170454554 SPACER, PINIONSPACER, PINION
-
180454555 GEAR, RINGGEAR, RING
-
190454556 PINION, OUTPUTPINION, OUTPUT
-
200454557 GEAR, OUTPUTGEAR, OUTPUT
-
210453779 CLIP, CIRCLIP, CIR
-
220452527 GEAR, COUNTERGEAR, COUNTER
-
230452526 SHAFT, COUNTERSHAFT, COUNTER
-
240452358 BEARING, NEEDLEBEARING, NEEDLE
-
250452347 BEARING, BALLBEARING, BALL
-
260450587 BUSHING, RUBBERBUSHING, RUBBER
