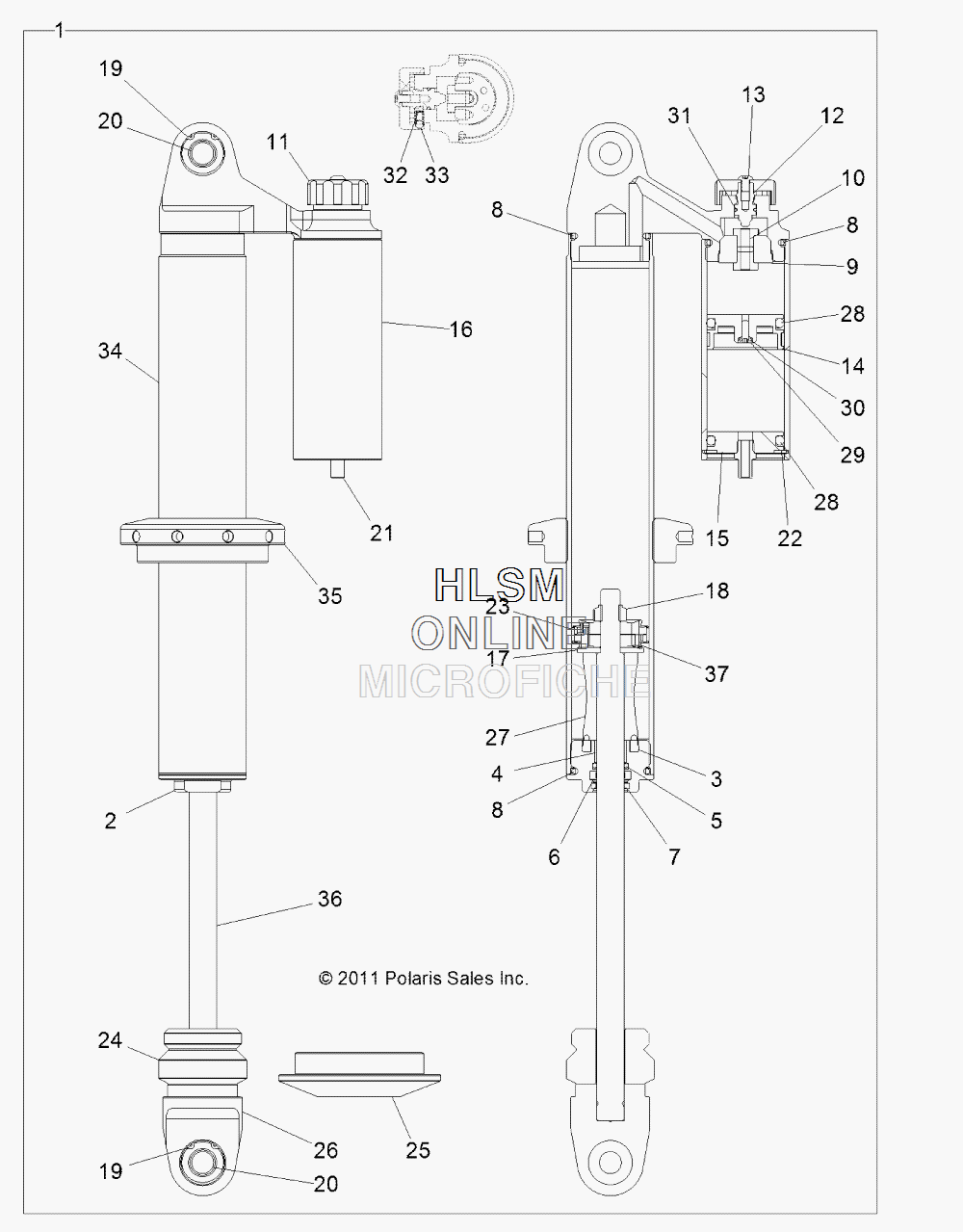

FRONT SHOCK (7043777) для Polaris RZR 4 XP 900 STEALTH BLACK [R12XT87AA] - 2012 года выпуска
-
№АртикулНазвание
-
17043777 SHOCK, FRONT (INCL. ALL)SHOCK, FRONT (INCL. ALL)
-
21800385 HEAD, SEALHEAD, SEAL
-
31800386 STOP, BUMP, INTERNALSTOP, BUMP, INTERNAL
-
41800038 BUSHING, SHAFTBUSHING, SHAFT
-
51800037 O-RINGO-RING
-
61800035 SEAL, SHAFT, U CUPSEAL, SHAFT, U CUP
-
71800034 WIPERWIPER
-
81800030 O-RING, BODYO-RING, BODY
-
91800217 PISTONPISTON
-
101800219 SCREWSCREW
-
111800284 KNOBKNOB
-
121800352 STUD, CLICKERSTUD, CLICKER
-
131800357 SCREWSCREW
-
141800355 PISTON, RESERVOIRPISTON, RESERVOIR
-
151800394 CAP, ENDCAP, END
-
161800392 BODY, RESERVOIRBODY, RESERVOIR
-
171800393 WASHERWASHER
-
181800164 NUT, CRIMPNUT, CRIMP
-
191800041 RING, SNAPRING, SNAP
-
201800170 BEARINGBEARING
-
211800021 VALVE, SCHRAEDERVALVE, SCHRAEDER
-
221800159 RING, SNAPRING, SNAP
-
231800185 BAND, PISTONBAND, PISTON
-
241800593 BUMPERBUMPER
-
251500867 RETAINER, SPRINGRETAINER, SPRING
-
261800482 RING, RETAININGRING, RETAINING
-
271800512 SPACER, SHAFTSPACER, SHAFT
-
281800184 O-RINGO-RING
-
291800043 SCREW, BLEEDSCREW, BLEED
-
301800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
311800215 O-RING, STUDO-RING, STUD
-
321800128 SPRING, D-TENTSPRING, D-TENT
-
331800127 BALL, D-TENTBALL, D-TENT
-
341800513 SPACER, SHAFTSPACER, SHAFT
-
351800514 NUT, SPRINGNUT, SPRING
-
361800515 SHAFTSHAFT
-
371800516 ASM., PISTONASM., PISTON
