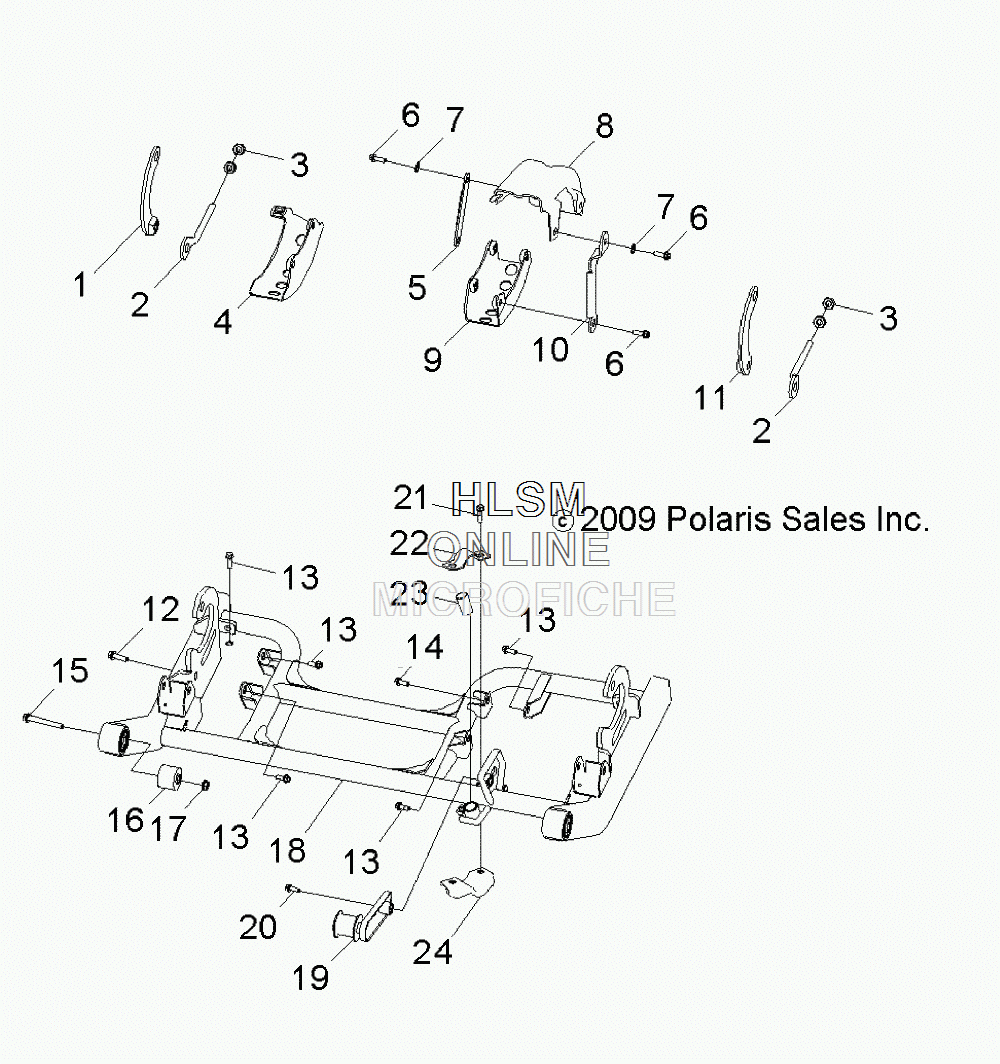

SWING ARM для Polaris RZR 170 WHITE [R13VA17AB] - 2013 года выпуска
-
№АртикулНазвание
-
10454508 CLAMP, TUBE, AXLE HUB, RIGHT HANDCLAMP, TUBE, AXLE HUB, RIGHT HAND
-
20453557 ADJUSTER, CHAINADJUSTER, CHAIN
-
30453818 NUTNUT
-
40454507 SHIELD, DISC, BRAKESHIELD, DISC, BRAKE
-
50454506 BRACKET, CHAIN GUARD, RIGHT HANDBRACKET, CHAIN GUARD, RIGHT HAND
-
60452030 BOLTBOLT
-
70452198 WASHER, FLATWASHER, FLAT
-
80454264 COVER, SPROCKET, REARCOVER, SPROCKET, REAR
-
90454275 GUARD, SPROCKET, REARGUARD, SPROCKET, REAR
-
100454505 BRACKET, CHAIN GUARD, LEFT HANDBRACKET, CHAIN GUARD, LEFT HAND
-
110454504 CLAMP, TUBE, AXLE HUB, LEFT HANDCLAMP, TUBE, AXLE HUB, LEFT HAND
-
120454448 BOLTBOLT
-
130453669 BOLTBOLT
-
140452031 BOLTBOLT
-
150454509 BOLTBOLT
-
160454510 BUSHINGBUSHING
-
170453706 NUT, FLANGENUT, FLANGE
-
180454851-067 ARM, SWING, BLACKARM, SWING, BLACK
-
190452954 ASM., CHAIN TENSIONERASM., CHAIN TENSIONER
-
200451689 BOLT, FLANGEBOLT, FLANGE
-
210450298 BOLTBOLT
-
220454651-067 CLAMP, BUFFER, BLACKCLAMP, BUFFER, BLACK
-
230454652 BUFFER, CHAINBUFFER, CHAIN
-
240454650-067 MOUNT, BUFFER, BLACKMOUNT, BUFFER, BLACK
