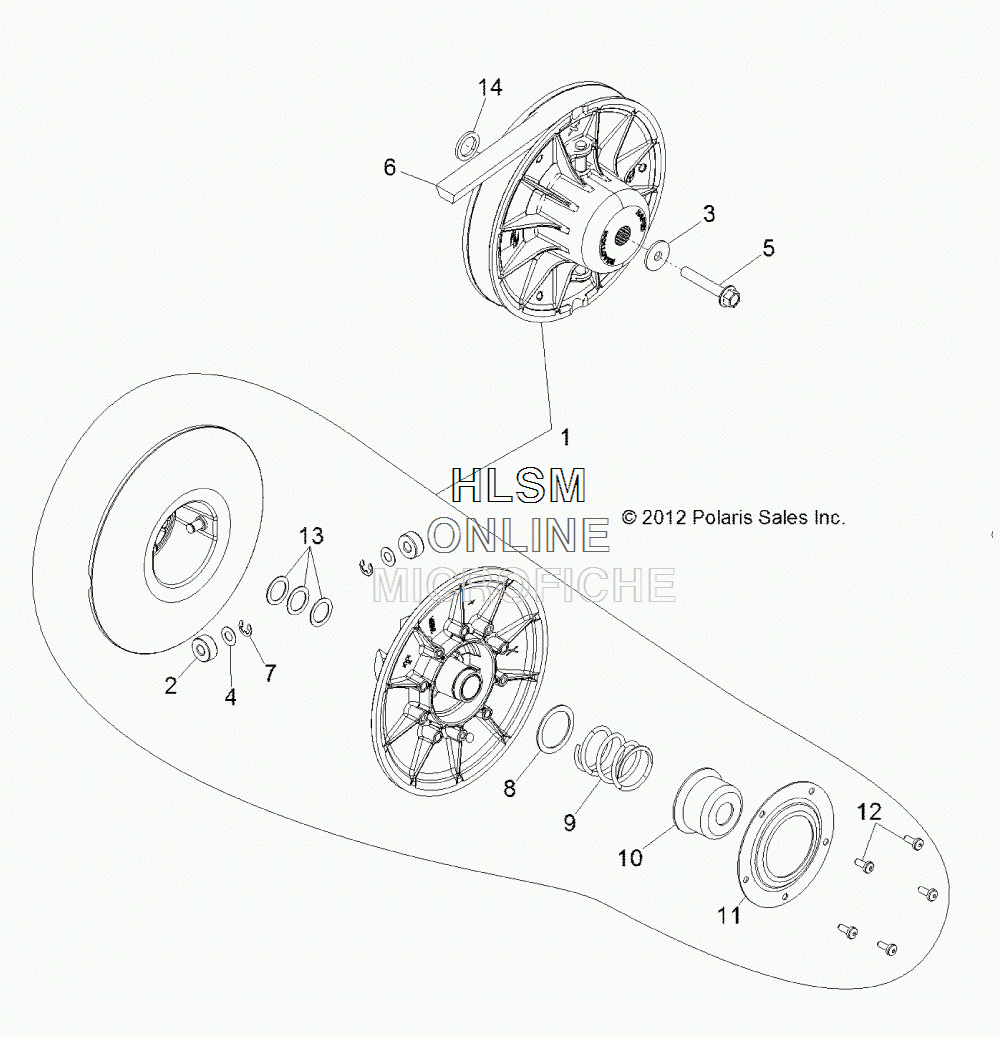

CLUTCH- SECONDARY для Polaris RZR 570 EFI INTERNATIONAL INDY RED [R13VH57FX] - 2013 года выпуска
-
№АртикулНазвание
-
11323038 ASM., DRIVEN CLUTCH (INCL. 2,4,7-12) (BUILT 9/10/12 AND BEFORE)ASM., DRIVEN CLUTCH (INCL. 2,4,7-12) (BUILT 9/10/12 AND BEFORE)
-
11323070 ASM., DRIVEN CLUTCH (INCL. 2,4,7, 9-12) (BUILT 9/11/12 AND AFTER)ASM., DRIVEN CLUTCH (INCL. 2,4,7, 9-12) (BUILT 9/11/12 AND AFTER)
-
25439831 ROLLER, CLUTCHROLLER, CLUTCH
-
37555846 WASHER, FLATWASHER, FLAT
-
47556226 WASHER, THRUSTWASHER, THRUST
-
57519210 SCREWSCREW
-
63211143 BELT, DRIVEBELT, DRIVE
-
77710523 E-RING, RETAININGE-RING, RETAINING
-
87556735 WASHER, FLATWASHER, FLAT
-
93235088 SPRING, DRIVEN (USED W/1323038) (BUILT 9/10/12 AND BEFORE)SPRING, DRIVEN (USED W/1323038) (BUILT 9/10/12 AND BEFORE)
-
97044015 SPRING, COMPRESSION, RED/WHITE (USED W/1323070) (BUILT 9/11/12 AND AFTER)SPRING, COMPRESSION, RED/WHITE (USED W/1323070) (BUILT 9/11/12 AND AFTER)
-
105256403 CUP, SPRING, BOSS LW UTILITYCUP, SPRING, BOSS LW UTILITY
-
115256404 PLATE, RETAINER, BOSS LW UTILITYPLATE, RETAINER, BOSS LW UTILITY
-
127519735 SCREWSCREW
-
137556736 WASHER, THRUSTWASHER, THRUST
-
147556745 WASHER, THRUSTWASHER, THRUST
