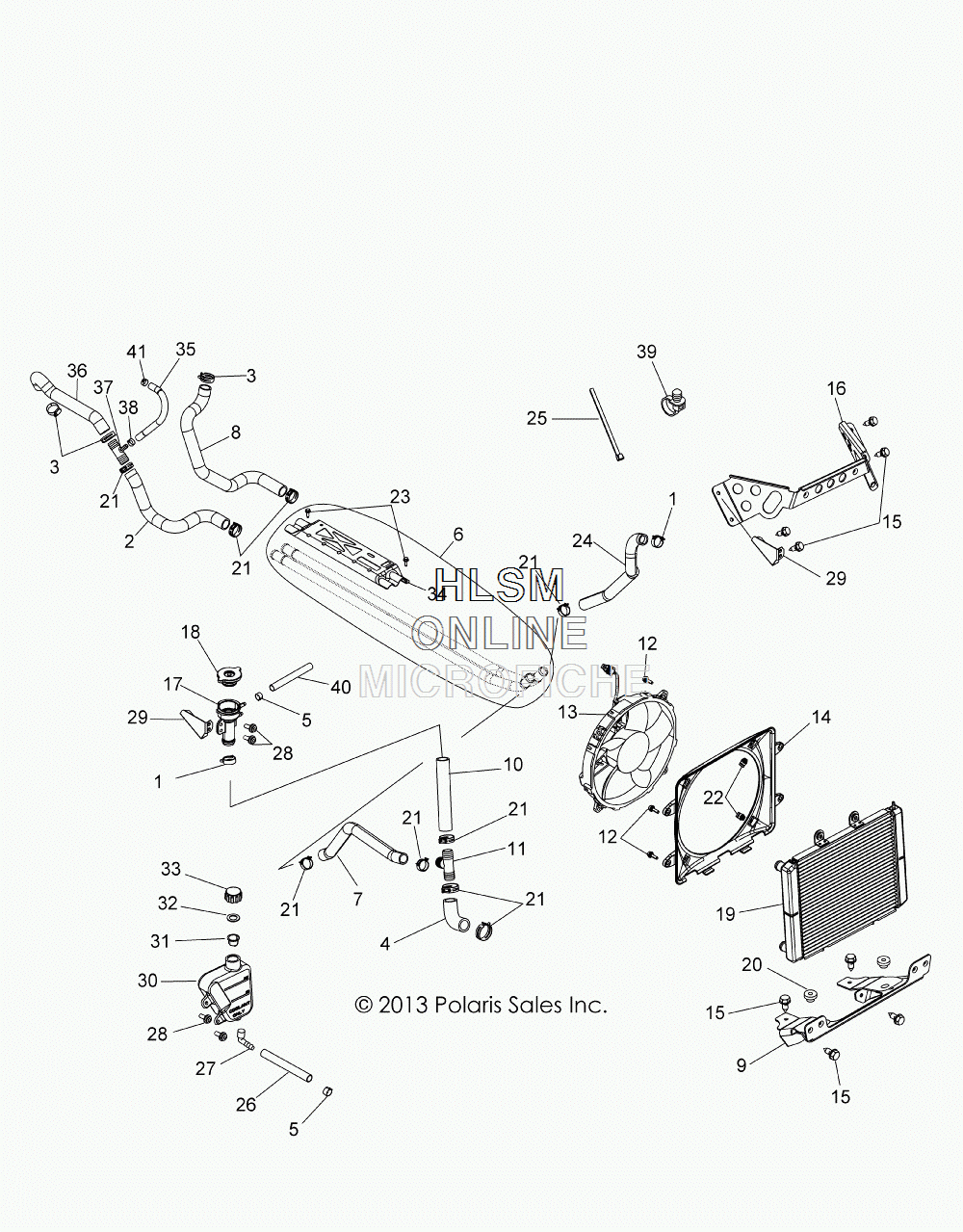

COOLING SYSTEM для Polaris RZR S 800 EFI ISREAL [Z14VE76FI] - 2014 года выпуска
-
№АртикулНазвание
-
17081174 CLAMP, HOSECLAMP, HOSE
-
25414206 HOSE, ENGINE INLET, REARHOSE, ENGINE INLET, REAR
-
37080560 CLAMP, HOSECLAMP, HOSE
-
45414202 HOSE, RADIATOR, LOWERHOSE, RADIATOR, LOWER
-
57080003 CLAMP, HOSECLAMP, HOSE
-
61240648 ASM., TUBE, COOLANT (INCL. 34)ASM., TUBE, COOLANT (INCL. 34)
-
75414204 HOSE, LOWER, FRONTHOSE, LOWER, FRONT
-
85414205 HOSE, ENGINE OUTLET, REARHOSE, ENGINE OUTLET, REAR
-
95254709-067 BRACKET, MOUNT, RADIATOR, LOWER, BLACK (BUILT 1/2/14 AND BEFORE)BRACKET, MOUNT, RADIATOR, LOWER, BLACK (BUILT 1/2/14 AND BEFORE)
-
95254709-458 BRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACK (BUILT 1/3/14 AND AFTER)BRACKET, MOUNT, RADIATOR, LOWER, MATTE BLACK (BUILT 1/3/14 AND AFTER)
-
105414203 HOSE, REMOTE FILLER NECKHOSE, REMOTE FILLER NECK
-
117052373 T-CONNECTORT-CONNECTOR
-
127516822 SCREWSCREW
-
132410413 KIT, FANKIT, FAN
-
145437845 SHROUD, FANSHROUD, FAN
-
157517386 SCREWSCREW
-
165254710-458 BRACKET, MOUNT, RADIATOR, UPPER, MATTE BLACKBRACKET, MOUNT, RADIATOR, UPPER, MATTE BLACK
-
175439079 FILLER, REMOTE, COOLANT, SMALLFILLER, REMOTE, COOLANT, SMALL
-
181240300 CAP, PRESSURECAP, PRESSURE
-
191240444 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
205410584 BUSHING, MOUNT, RADIATOR, LOWERBUSHING, MOUNT, RADIATOR, LOWER
-
217080844 CLAMP, SPRINGBAND, BLACKCLAMP, SPRINGBAND, BLACK
-
227547366 U-CLIPU-CLIP
-
237519342 SCREWSCREW
-
245414201 HOSE, RADIATOR, UPPERHOSE, RADIATOR, UPPER
-
257080761 CABLE TIECABLE TIE
-
268450003-1525 LINE, FUELLINE, FUEL
-
277052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
287512084 SCREWSCREW
-
295253450 BRACKET, FILLER NECKBRACKET, FILLER NECK
-
305436936 TANK, SURGETANK, SURGE
-
315433774 PLUG, CAPPLUG, CAP
-
325810279 GASKETGASKET
-
335430743 CAP, OVERFLOWCAP, OVERFLOW
-
345254161-329 BRACKET, FUEL TANK MOUNT, CENTER, BLACKBRACKET, FUEL TANK MOUNT, CENTER, BLACK
-
355413949 HOSE, BYPASSHOSE, BYPASS
-
365414207 HOSE, BYPASS, FORMEDHOSE, BYPASS, FORMED
-
377052494 CONNECTOR, TEECONNECTOR, TEE
-
387080474 CLAMP, HOSECLAMP, HOSE
-
397081496 CLIP, ROUTINGCLIP, ROUTING
-
408450120-600 HOSEHOSE
-
417080474 CLAMP, HOSECLAMP, HOSE
