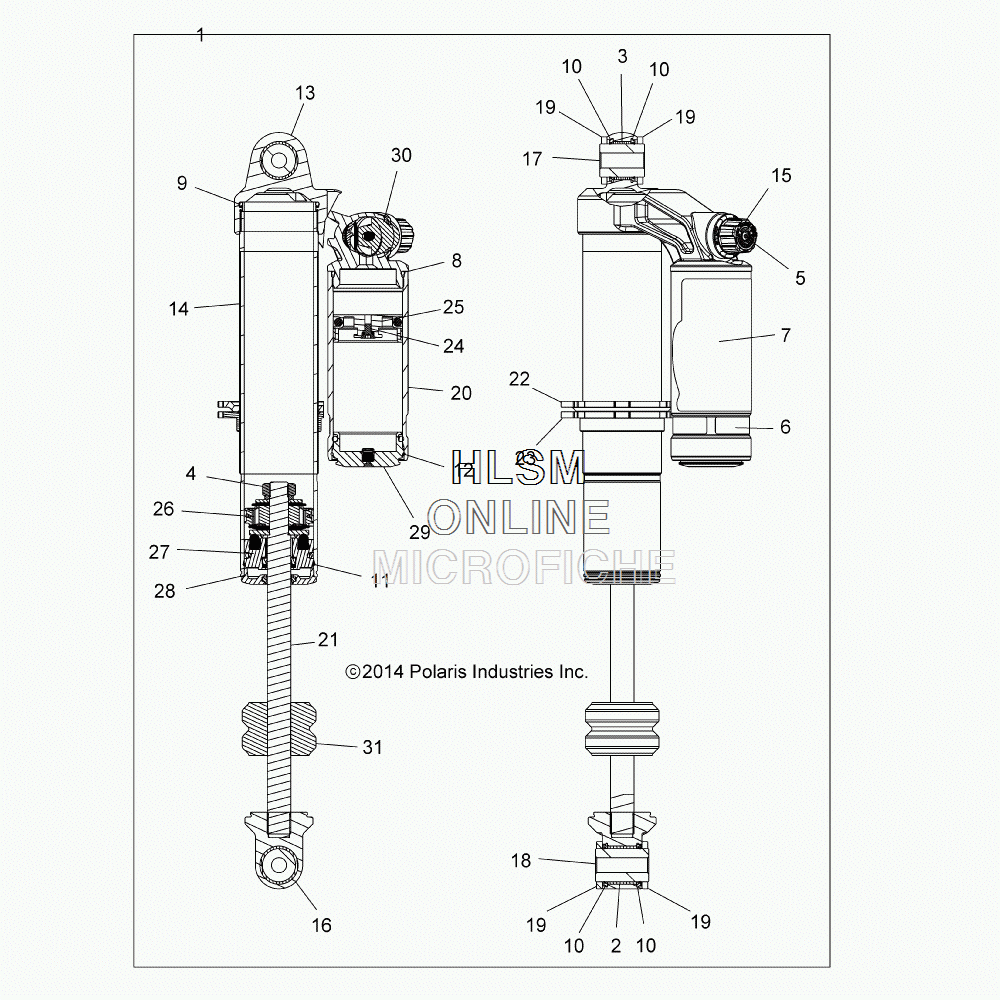

FRONT SHOCK INTERNALS для Polaris RZR 900 XC EDITION STEALTH BLACK [Z15VAX87AL] - 2015 года выпуска
-
№АртикулНазвание
-
17044289 SHOCK, FRONT LEFT, 2 RESERVOIRS, PIGGYBACKSHOCK, FRONT LEFT, 2 RESERVOIRS, PIGGYBACK
-
17044290 SHOCK, FRONT RIGHT, 2 RESERVOIRS, PIGGYBACKSHOCK, FRONT RIGHT, 2 RESERVOIRS, PIGGYBACK
-
21501035 BUSHING, EYELETBUSHING, EYELET
-
31501010 BUSHING, EYELETBUSHING, EYELET
-
41500871 NUT, CENTER LOCKNUT, CENTER LOCK
-
51501011 SCREWSCREW
-
61501012 DECAL, PERFORMANCEDECAL, PERFORMANCE
-
71501013 DECAL, RESERVOIRDECAL, RESERVOIR
-
81500623 O-RINGO-RING
-
91500510 O-RINGO-RING
-
101501014 SEAL, WEATHERSEAL, WEATHER
-
111500236 RING, RETAININGRING, RETAINING
-
121501015 RING, RETAINING, WIRERING, RETAINING, WIRE
-
131501029 BODY, CAP (USED W/7044289)BODY, CAP (USED W/7044289)
-
131501030 BODY, CAP (USED W/7044290)BODY, CAP (USED W/7044290)
-
141501036 BODYBODY
-
151501019 KNOB, LOW SPEEDKNOB, LOW SPEED
-
161501037 EYELETEYELET
-
171501020 SLEEVESLEEVE
-
181501038 SLEEVE, EYELETSLEEVE, EYELET
-
191501022 SPACER, EYELETSPACER, EYELET
-
201501023 RESERVOIRRESERVOIR
-
211501039 SHAFTSHAFT
-
221500872 RING, PRELOAD, BACKRING, PRELOAD, BACK
-
231500873 RING, PRELOADRING, PRELOAD
-
241500161 SCREW, W/O RINGSCREW, W/O RING
-
251501026 ASM., PISTON, FLOATASM., PISTON, FLOAT
-
271500940 ASM., BEARINGASM., BEARING
-
281500835 ASM., BEARING CAPASM., BEARING CAP
-
291501027 ASM., END CAP, RESERVOIRASM., END CAP, RESERVOIR
-
301501034 ASM., DAMPING, ADJUSTER, LSCASM., DAMPING, ADJUSTER, LSC
-
311501028 BUMPER, B/O SHAFTBUMPER, B/O SHAFT
