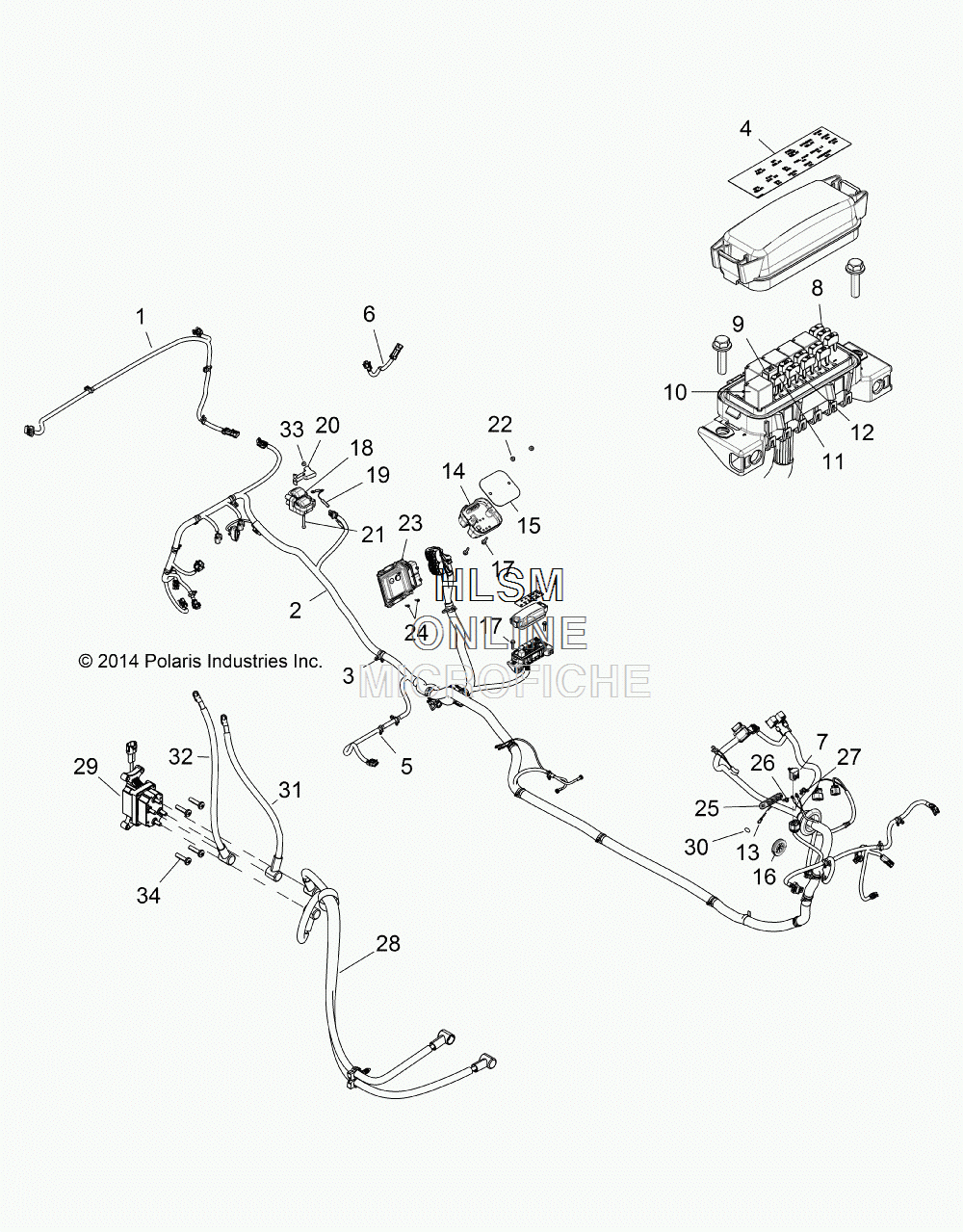

WIRE HARNESSES для Polaris RZR XP 1000 EPS HIGH LIFTER EDITION STEALTH BLACK [Z15VDE99AL] - 2015 года выпуска
-
№АртикулНазвание
-
12412884 HARNESS, BOXHARNESS, BOX
-
22412921 HARNESS, CHASSISHARNESS, CHASSIS
-
37081916 CLIP, DOUBLE CABLE TIECLIP, DOUBLE CABLE TIE
-
47180884 LABEL, FUSE BOXLABEL, FUSE BOX
-
47182155 LABEL, FUSE BOXLABEL, FUSE BOX
-
57081496 CLIP, ROUTINGCLIP, ROUTING
-
64014319 WIRE, THERMISTER LEADWIRE, THERMISTER LEAD
-
74012170 COVER, DIAGNOSTIC, W/CLIPCOVER, DIAGNOSTIC, W/CLIP
-
84011653 FUSE, 25A, MINI BLADEFUSE, 25A, MINI BLADE
-
94011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
104011283 RELAYRELAY
-
112434017 FUSE, 20 AMP (USE W/2412849)FUSE, 20 AMP (USE W/2412849)
-
122434016 FUSE, 10 AMPFUSE, 10 AMP
-
132412443 LED, PANEL MOUNTLED, PANEL MOUNT
-
144014029 REGULATOR, 3 PHASE, 50 AMP, SERIESREGULATOR, 3 PHASE, 50 AMP, SERIES
-
155254970 PLATE, HEAT SINK, REGULATORPLATE, HEAT SINK, REGULATOR
-
165414440 GROMMETGROMMET
-
177518533 BOLT, FLANGE, BLACKBOLT, FLANGE, BLACK
-
184010425 COIL, EFICOIL, EFI
-
194014422 JUMPER ,COIL GROUNDJUMPER ,COIL GROUND
-
205436577 SPACER, COIL MOUNTSPACER, COIL MOUNT
-
217518780 SCREWSCREW
-
227547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
234014125 ECM, NO STARTECM, NO START
-
247519091 SCREWSCREW
-
254011892 BLOCK, TERMINAL, 3 POSTBLOCK, TERMINAL, 3 POST
-
267518196 SCREWSCREW
-
277547341 NUTNUT
-
284015044 CABLE, CONTACTOR TO WINCHCABLE, CONTACTOR TO WINCH
-
294013465 CONTACTOR, WINCHCONTACTOR, WINCH
-
307082020 CLIP, ROUTINGCLIP, ROUTING
-
314013470-375 CABLE, POWER, WINCH, BLACKCABLE, POWER, WINCH, BLACK
-
324013471-370 CABLE, POWER, WINCH, REDCABLE, POWER, WINCH, RED
-
337547274 NUT, M6 FLANGE, NYLOCNUT, M6 FLANGE, NYLOC
-
347518158 SCREW, #14X1 HI/LO-PH-PN TRX-MSCREW, #14X1 HI/LO-PH-PN TRX-M
