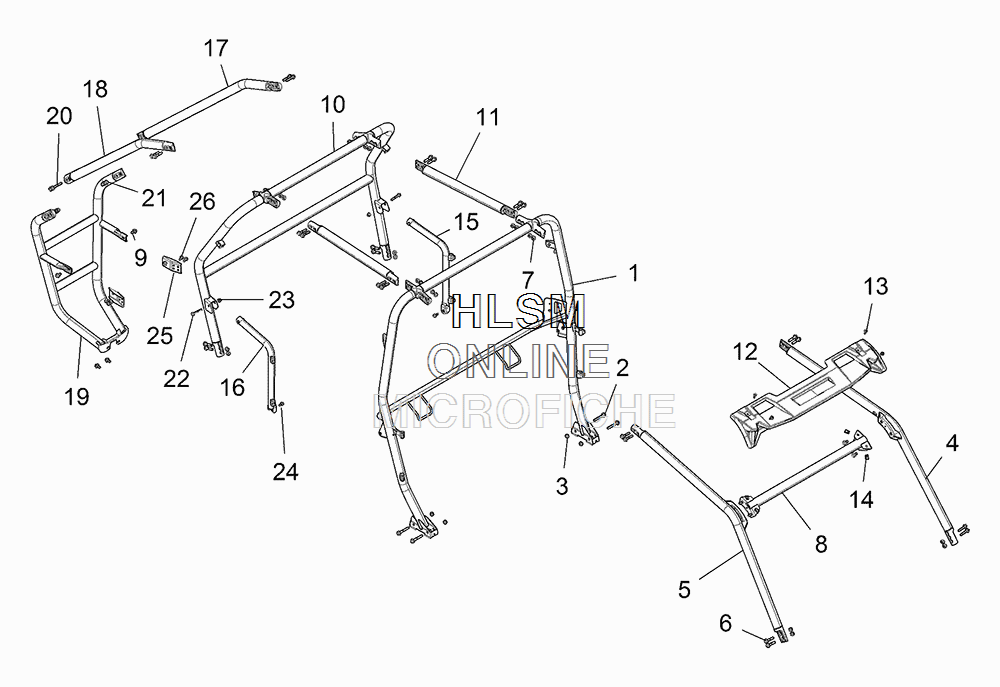

CAB FRAME для Polaris RZR XP 4 900 EPS HAVASU RED PEARL [Z15VCE87AT] - 2015 года выпуска
-
№АртикулНазвание
-
11020054-458 WELD-HOOP,ROPS,MID,MP, BLACKWELD-HOOP,ROPS,MID,MP, BLACK
-
27519903 SCR-HXFL-M10X1.5X65 10.9 RIESCR-HXFL-M10X1.5X65 10.9 RIE
-
37547268 NUT-NYLOCK M10X1.5,REF 0600110NUT-NYLOCK M10X1.5,REF 0600110
-
41020052-458 WELD-ROPS,MP,LH, BLACKWELD-ROPS,MP,LH, BLACK
-
51020053-458 WELD-ROPS,MP,RH, BLACKWELD-ROPS,MP,RH, BLACK
-
67519906 SCR-HXFL-M10X1.5X45 10.9 RIESCR-HXFL-M10X1.5X45 10.9 RIE
-
77547746 NUT-HEX-M10X1.5 10 ZB3 NYLNUT-HEX-M10X1.5 10 ZB3 NYL
-
81020755-458 WELD-ROPS,FRONT,CROSS, BLACKWELD-ROPS,FRONT,CROSS, BLACK
-
97519905 SCR-HXFL-M10X1.5X20 10.9 RIE PSCR-HXFL-M10X1.5X20 10.9 RIE P
-
101020286-458 WELD-HOOP,ROPS,REAR,MP,M BLACKWELD-HOOP,ROPS,REAR,MP,M BLACK
-
111020057-458 WELD-BRACE,ROPS,MID, BLACKWELD-BRACE,ROPS,MID, BLACK
-
125450657-070 PANEL-VISOR TRIM, BLACKPANEL-VISOR TRIM, BLACK
-
137519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
147547674 NUT-M6-1.0,U-TYPE (2.5-3.8)NUT-M6-1.0,U-TYPE (2.5-3.8)
-
151020403-458 WELD-BOLSTER,LH, BLACKWELD-BOLSTER,LH, BLACK
-
161020404-458 WELD-BOLSTER,RH, BLACKWELD-BOLSTER,RH, BLACK
-
171020620-458 WELD-ROPS,REAR,MP,LHWELD-ROPS,REAR,MP,LH
-
181020621-458 WELD-ROPS,REAR,MP,RH, BLACKWELD-ROPS,REAR,MP,RH, BLACK
-
191020434-458 WELD-ROPS,C PILLAR,M BLACKWELD-ROPS,C PILLAR,M BLACK
-
207519956 SCR-HXFL-M10X1.25X55 10.9 RIESCR-HXFL-M10X1.25X55 10.9 RIE
-
217547750 NUT-HXFL-M10X1.25 8 ZB3 NYLNUT-HXFL-M10X1.25 8 ZB3 NYL
-
227520094 SCR-HXFL-M8X1.25X55 8.8 ZBSCR-HXFL-M8X1.25X55 8.8 ZB
-
237547454 NUT-HXFL-M8X1.25 8 ZB3 NYLNUT-HXFL-M8X1.25 8 ZB3 NYL
-
247518450 BOLT-M8X1.25X20,HXHDFLG,W/PTCHBOLT-M8X1.25X20,HXHDFLG,W/PTCH
-
255259100-458 BRKT-MOUNT,BUMPER, BLACKBRKT-MOUNT,BUMPER, BLACK
-
267518555 BOLT-M8X1.25X20,HXFLGBOLT-M8X1.25X20,HXFLG
