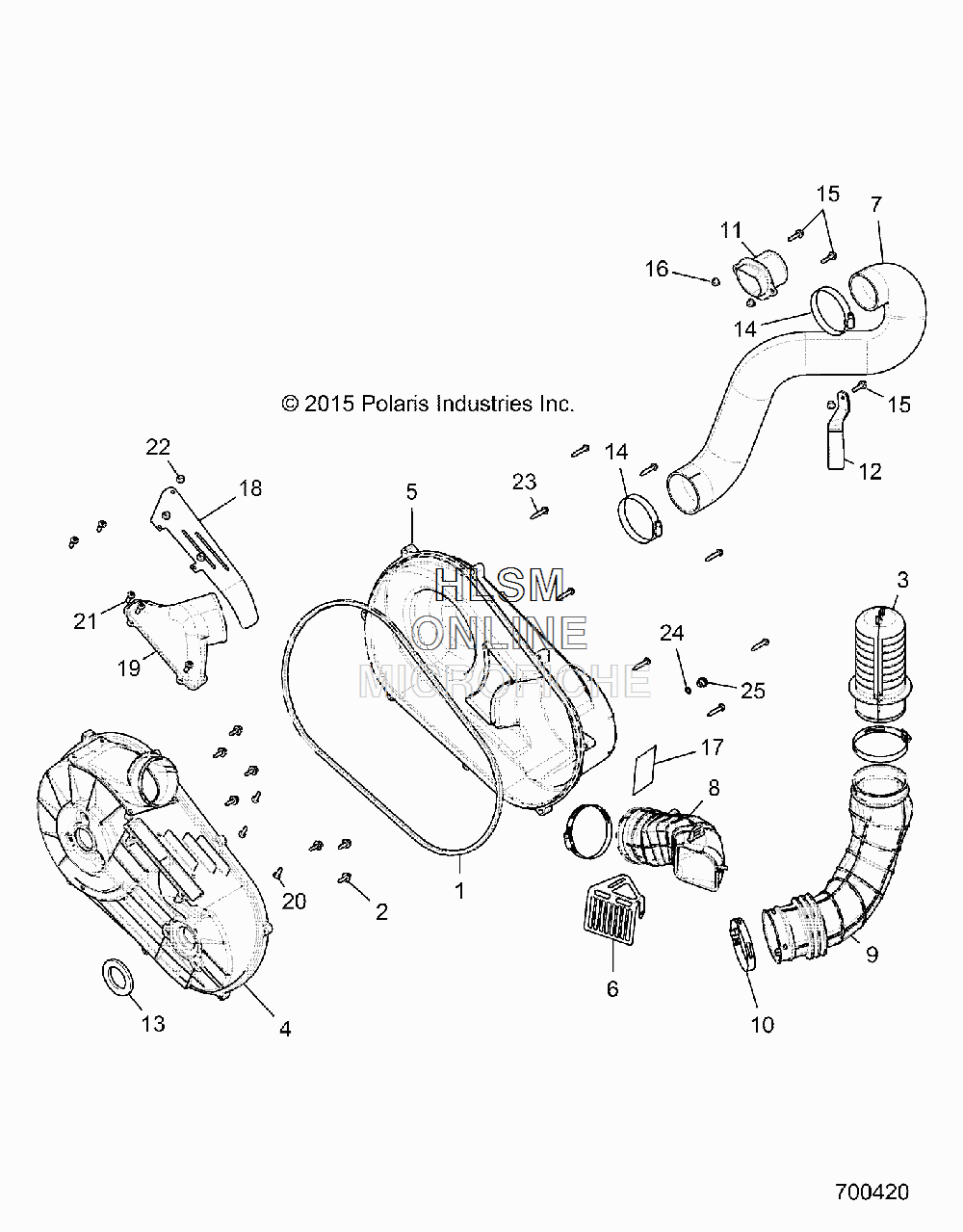

CLUTCH COVER W/ DUCTING для Polaris RZR 1000 60 INCH WHITE LIGHTNING [Z16VBE99AW] - 2016 года выпуска
-
№АртикулНазвание
-
15521831 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
27519278 ASM-BOLT/WASHER, 20 MMASM-BOLT/WASHER, 20 MM
-
32635411 ASM-DUCT, CLUTCH AIR INLETASM-DUCT, CLUTCH AIR INLET
-
42634863 ASM., COVER, CLUTCH, INNER (INCL. 18-22)ASM., COVER, CLUTCH, INNER (INCL. 18-22)
-
52635611 ASM., COVER, CLUTCH, OUTER (INCL. 24, 25)ASM., COVER, CLUTCH, OUTER (INCL. 24, 25)
-
65256732 BRKT-BELT SCREENBRKT-BELT SCREEN
-
75415488 HOSE-CLUTCH INTAKE, SPHOSE-CLUTCH INTAKE, SP
-
85451061 HOSE-CLUTCH, AIR OUTLETHOSE-CLUTCH, AIR OUTLET
-
95451062 HOSE-CLUTCH, AIR INLETHOSE-CLUTCH, AIR INLET
-
107081969 CLAMP-HOSE SLOTTED, 89-100 DIACLAMP-HOSE SLOTTED, 89-100 DIA
-
115451776 BOOT, PLASTIC, INTAKEBOOT, PLASTIC, INTAKE
-
127082088 CLAMP-P, LARGECLAMP-P, LARGE
-
135813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
147080907 CLAMP, HOSECLAMP, HOSE
-
157518533 BOLT-M6X1.0X25, HXHD, FLG, BLKBOLT-M6X1.0X25, HXHD, FLG, BLK
-
167547339 NUT-M6X1.0, FLG-NYLOC-OLIVE DNUT-M6X1.0, FLG-NYLOC-OLIVE D
-
177177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
185256223 BRACKET, GUARD, CLUTCH COVERBRACKET, GUARD, CLUTCH COVER
-
195450051 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
207518546 SCREWSCREW
-
217519205 SCREWSCREW
-
227547453 NUT, NYLOKNUT, NYLOK
-
237519330 SCREWSCREW
-
245410542 O-RINGO-RING
-
255434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
